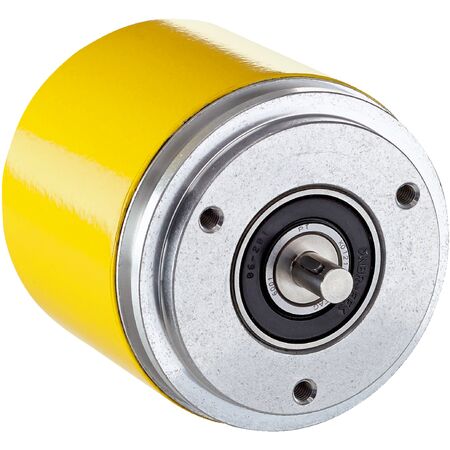

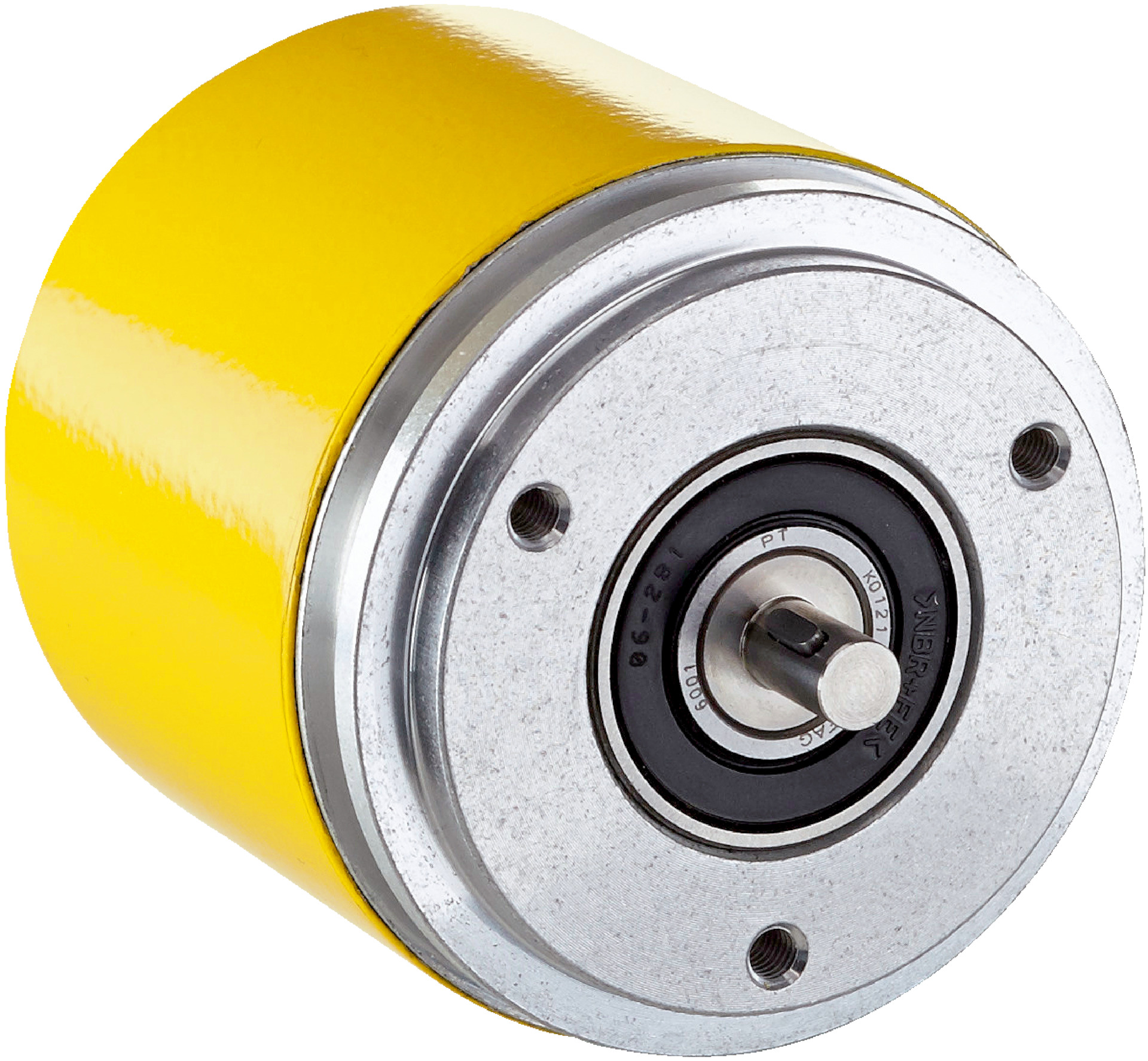

Safety Encoder AFM60S-SDKD262144 | SIL 3 & PL e Certified | 262,144 Steps | IP65 Rated | by SICK
The AFM60S-SDKD262144 safety encoder is designed for high-precision applications, featuring SIL 3 and PL e certification for safety integrity. With a remarkable resolution of 262,144 steps per revolution and an IP65 rated enclosure, it’s perfect for industrial automation, robotics, and safety-critical machinery monitoring. Built to withstand harsh environments, this encoder ensures reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, axial
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm, length: 10 mm, with feather key
- Materials: Stainless steel shaft and stator coupling, aluminum flange and housing
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 8 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and servo flange
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Communication via SSI interface with Sin/Cos signals
- Low power consumption of 0.7 W
- High repeatability with standard deviation of 0.002°
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and industrial automation systems to ensure compliance with safety standards.
Applications
- Industrial automation requiring high safety integrity
- Robotics and servo motor feedback systems
- Safety-critical machinery monitoring
- Precision position and speed measurement in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60S-SDKD262144 safety encoder is available for immediate purchase, ideal for high-precision and safety-critical industrial applications.
