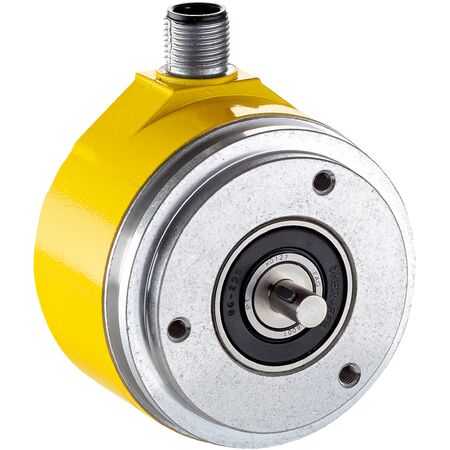

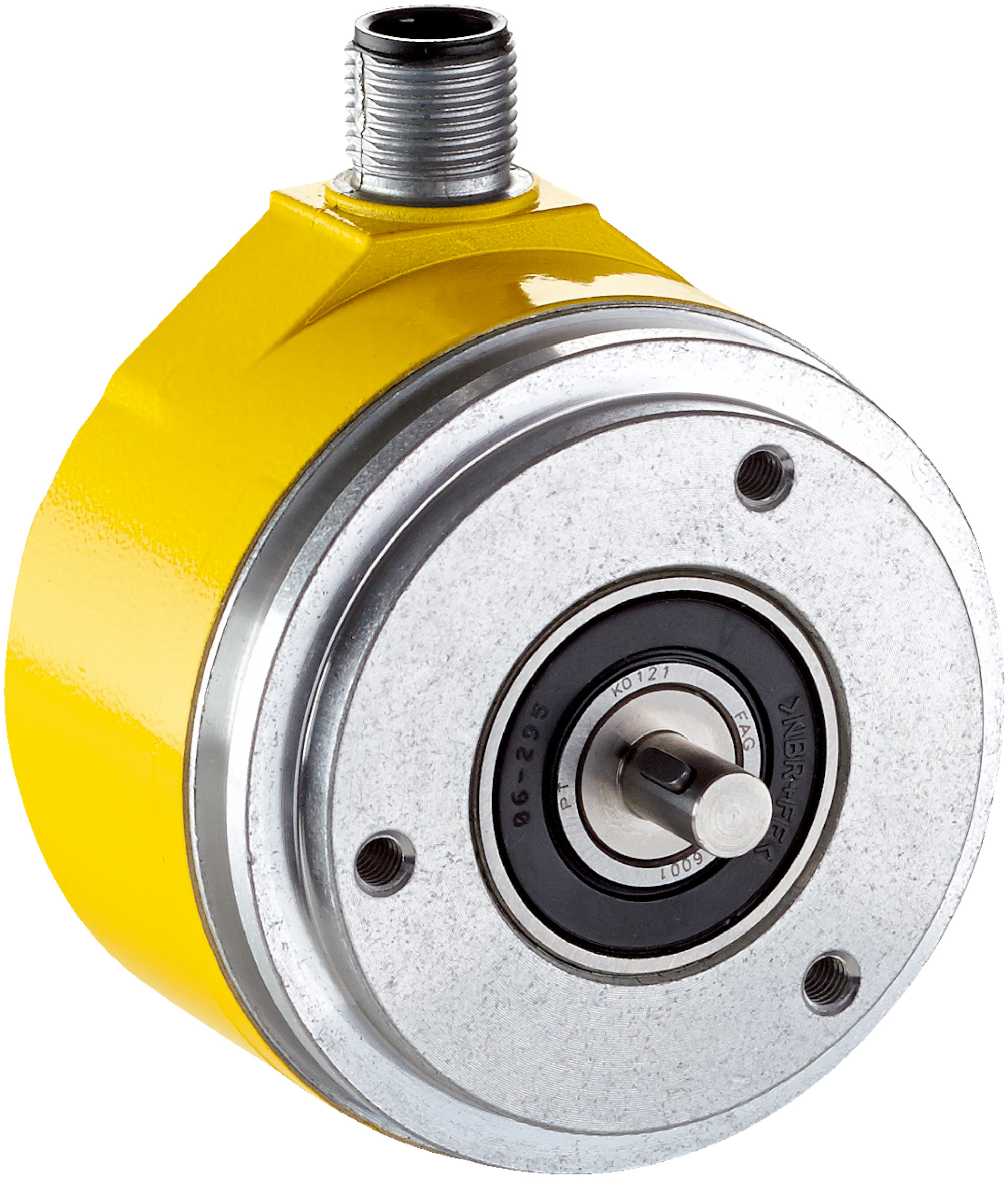

Safety Encoder AFM60S-SDSC262144 | SIL 3 Certified | 262,144 Steps/Rev | IP65 Rated | by SICK
The AFM60S-SDSC262144 safety encoder is designed for industrial automation, featuring SIL 3 certification and high-resolution performance with 262,144 steps per revolution. Built for safety-critical applications, it offers robust mechanical design and an IP65 rated enclosure, ensuring reliable operation in harsh environments. Ideal for motion control systems and robotics, this encoder guarantees precision and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps/rev (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male M12, 12-pin radial connector
- Mechanical design: Solid shaft with servo flange, shaft diameter 6 mm, shaft length 10 mm
- Materials: Stainless steel shaft and stator coupling, aluminum flange and die-cast housing
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Robust mechanical design with solid shaft and servo flange
- IP65 rated enclosure for dust and water protection
- Wide operating temperature range from -30 °C to +85 °C
- Communication interface SSI with Sin/Cos signals
- Reverse polarity and short-circuit protection
- High resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and compliant with relevant safety standards.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-related motion control systems
- Robotics and servo motor feedback
- Machine safety and position monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-SDSC262144 safety-related encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
