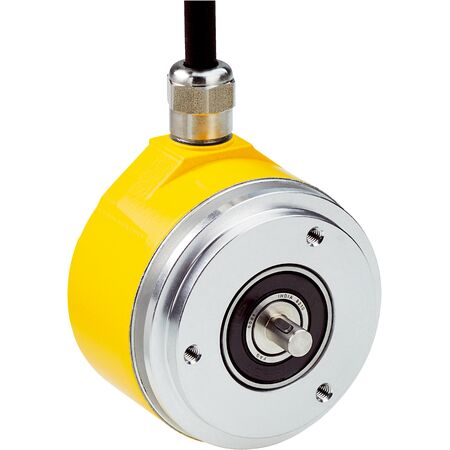

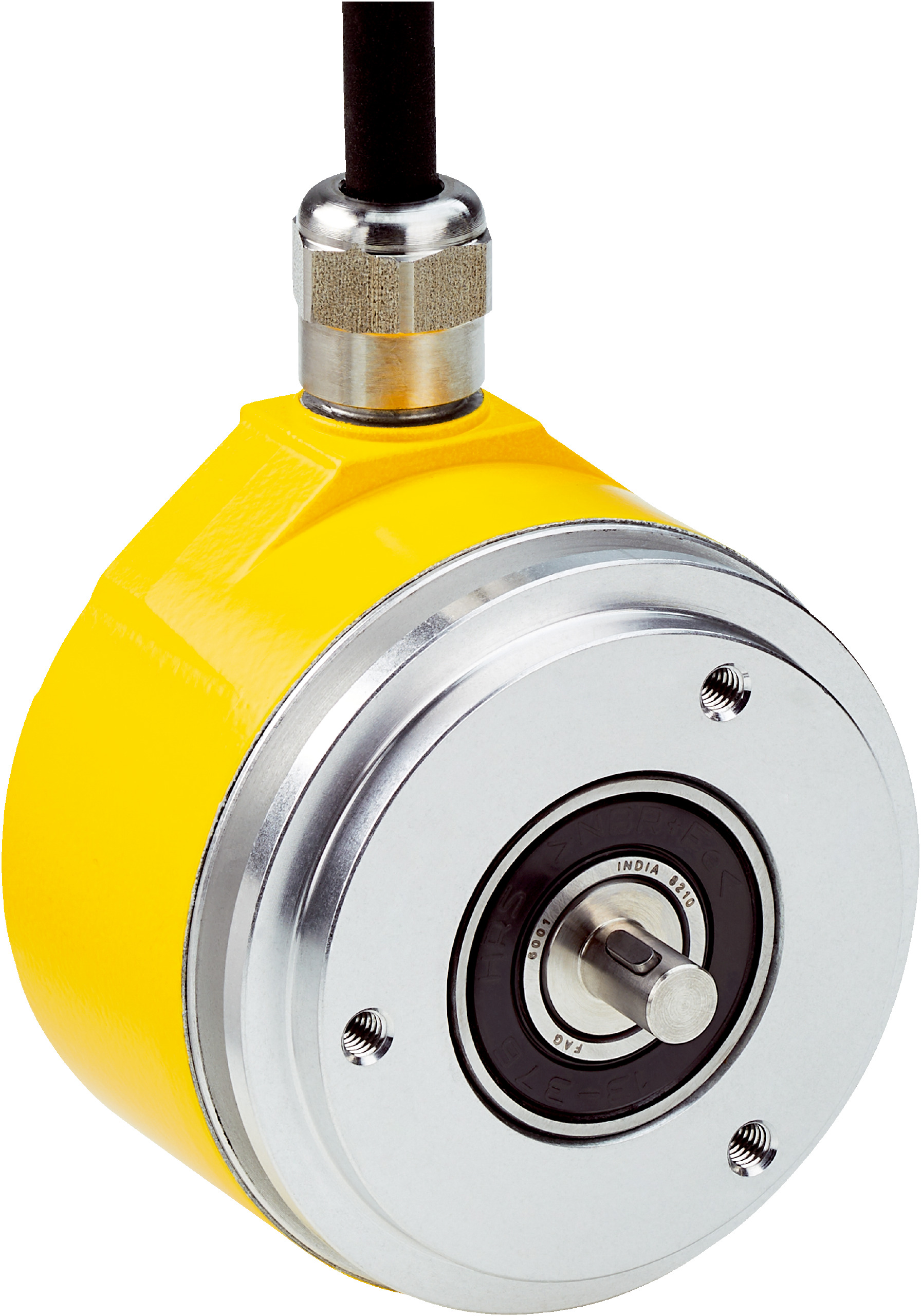

Safety Encoder AFM60S-SDSN262144 | SIL 3 Certified | 262,144 Steps/Rev | IP65 Enclosure | by SICK
The Safety Encoder AFM60S-SDSN262144 is designed for industrial automation, featuring a SIL 3 safety integrity level and high resolution with 262,144 steps per revolution. Ideal for robotics and safety-critical machinery, it offers robust performance in harsh environments, ensuring precise position and speed measurement with an IP65 rated enclosure for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: 12-wire cable, radial, 10 m length
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 6 mm, length: 10 mm, with feather key
- Materials: Stainless steel shaft and stator coupling, aluminum flange and housing
- Operating torque: ≤ 0.3 Ncm
- Operating speed: ≤ 9,000 min⁻¹
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +85 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61000-6-7
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and servo flange
- IP65 rated enclosure for dust and water protection
- Wide operating temperature range from -30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Communication via SSI interface with Sin/Cos signals
- Low operating and start-up torque for efficient operation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and industrial automation systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation requiring high safety integrity level
- Robotics and servo motor feedback systems
- Safety-critical machinery monitoring
- Position and speed measurement in harsh environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-SDSN262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
