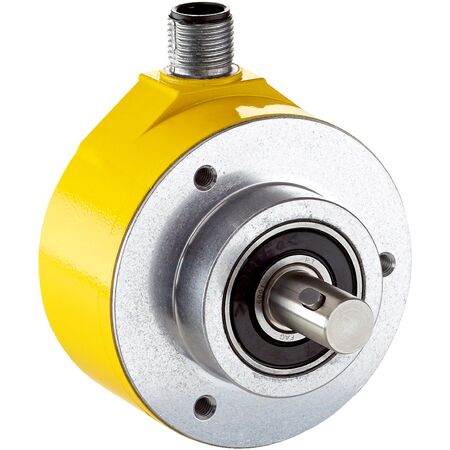

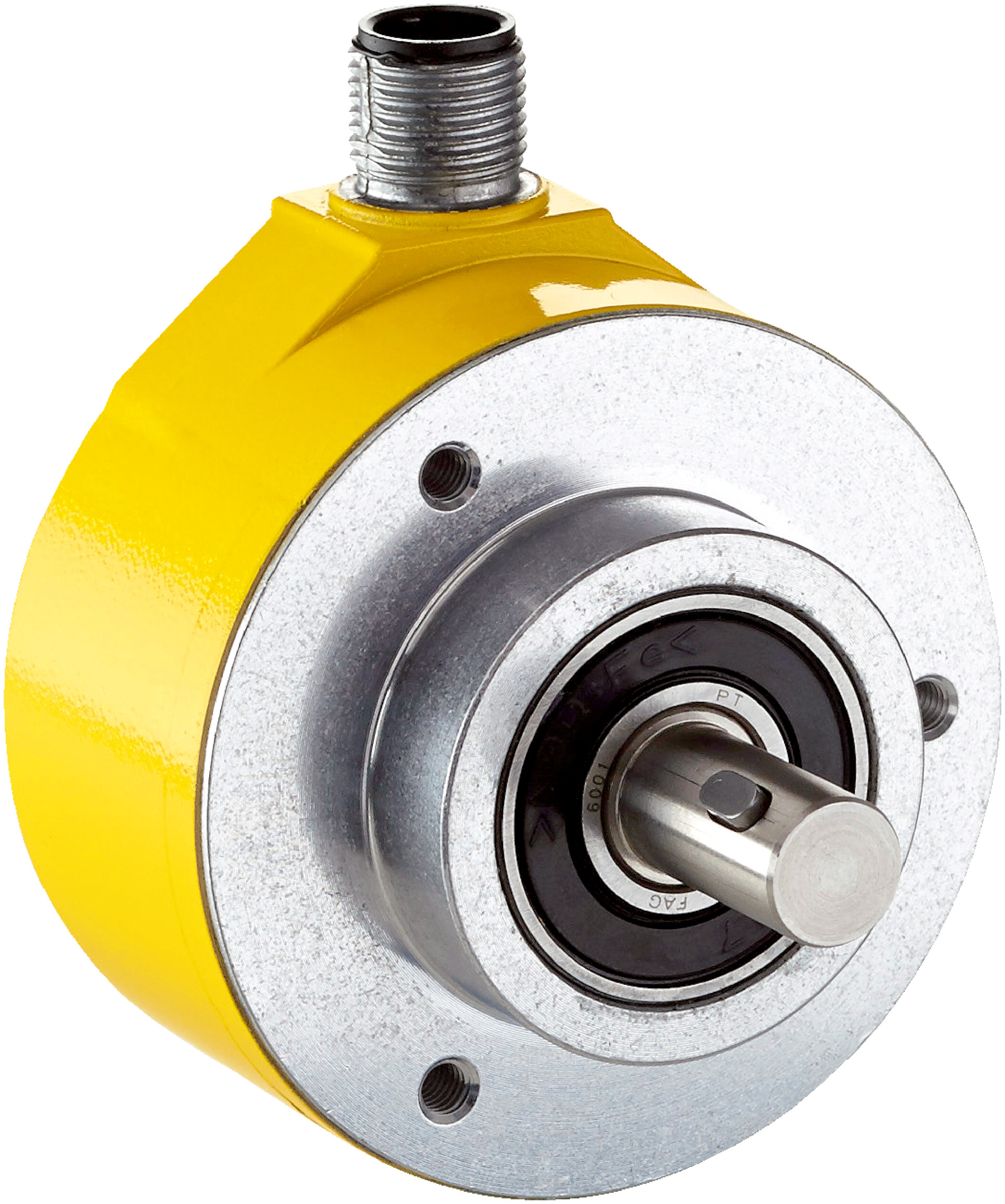

Safety Encoder AFM60S-SEKC262144 | SIL 3 & PL e Compliant | 262,144 Steps/Rev | IP65 Rated | by SICK
The AFM60S-SEKC262144 safety encoder is designed for industrial automation, featuring SIL 3 and PL e compliance for high safety integrity. With a remarkable resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures reliable performance in safety-critical applications. Ideal for robotics and machinery, this encoder offers fast initialization and robust mechanical design, making it a perfect choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety Integrity Level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance Level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean Probability of Dangerous Failure per Hour (PFH): 5.5 x 10^-9 at 40°C
- Mission Time: 20 years (EN ISO 13849-1)
- Safety-related Accuracy: 0.09° category 3, 0.35° category 4
- Max Resolution: 262,144 steps/rev x 4,096 revolutions (18 bit x 12 bit)
- Error Limits G: 0.05°
- Repeatability Standard Deviation: 0.002°
- Communication Interface: SSI + Sin/Cos
- Initialization Time: 2 seconds
- Position Forming Time: < 1 µs
- Code Type: Gray
- Clock Frequency: 100 kHz to ≤ 1 MHz
- Supply Voltage: 4.5 to 30 V
- Power Consumption: 0.7 W (without load)
- Connection Type: Male connector, M12, 12-pin, radial
- Mechanical Design: Solid shaft, face mount flange
- Shaft Diameter: 10 mm
- Shaft Length: 19 mm
- Shaft Material: Stainless steel
- Housing Material: Aluminum die cast
- Operating Temperature Range: -30°C to +85°C
- Enclosure Rating: IP65
- Operating Speed: ≤ 9,000 min⁻¹
- Bearing Lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 and performance level PL e compliant
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and face mount flange
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -30°C to +85°C
- Short-circuit and reverse polarity protection
- Fast initialization time of 2 seconds and position forming time under 1 microsecond
- Communication via SSI interface with Sin/Cos signals
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and industrial automation systems to ensure compliance with safety standards.
Applications
- Industrial automation requiring high safety integrity level encoders
- Robotics and machinery with safety-related position feedback
- Safety-critical systems in manufacturing and process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AFM60S-SEKC262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
