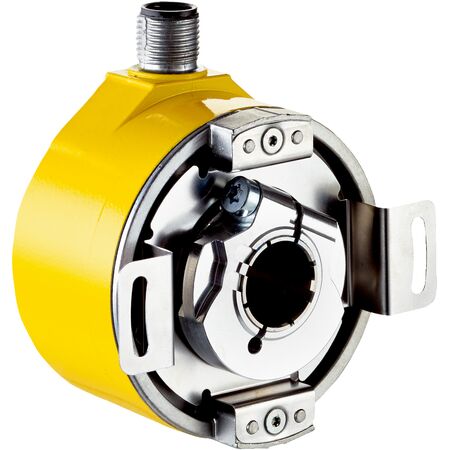

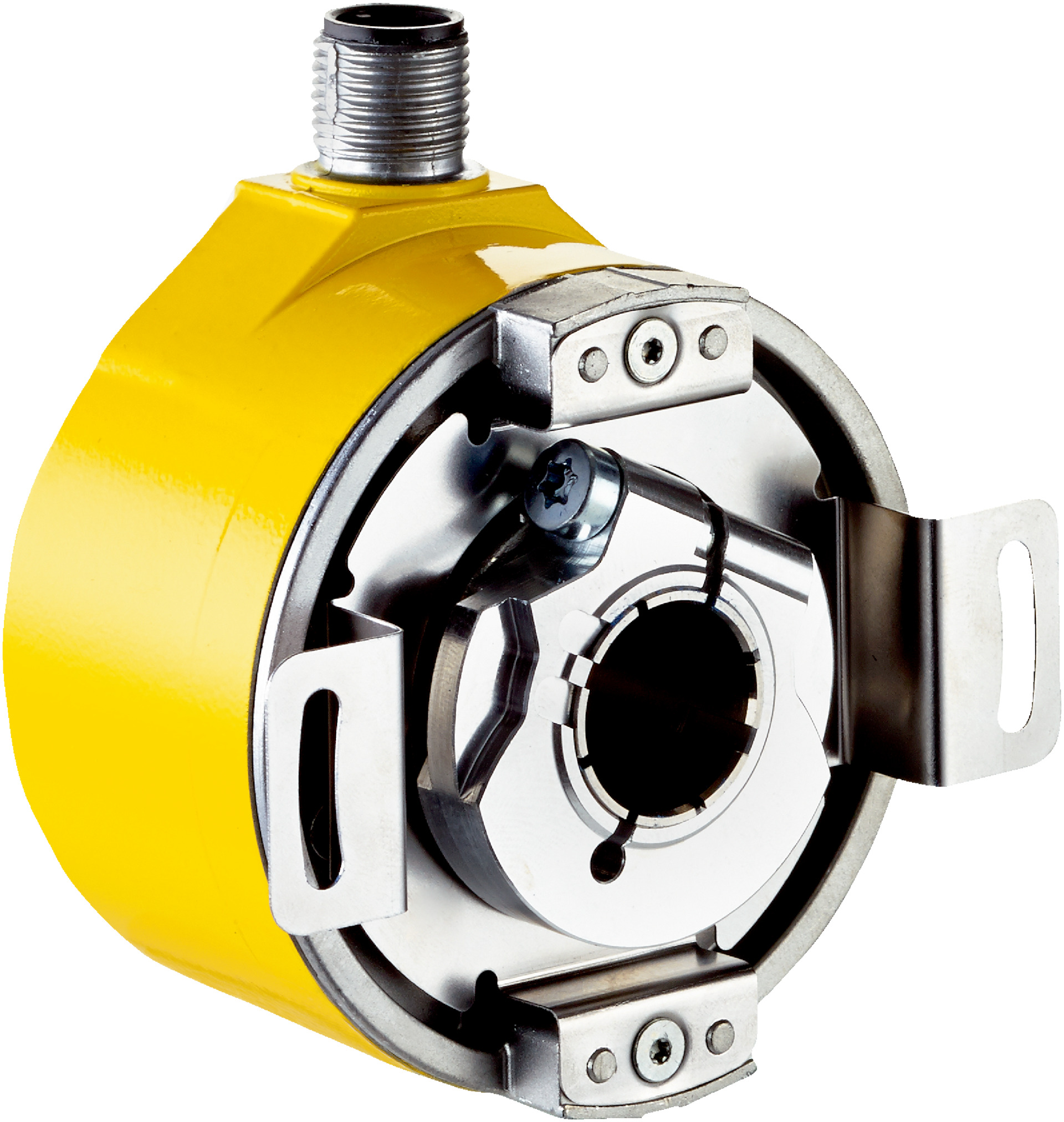

Safety Encoder AFM60S-TBSC262144 | SIL 3 & PL e Certified | 262,144 Steps/Rev | IP65 Rated | by SICK
The Safety Encoder AFM60S-TBSC262144 is engineered for high safety integrity applications, featuring SIL 3 and PL e certifications. With a remarkable resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures reliable performance in industrial automation and robotics. Designed for safety-critical systems, this encoder offers fast position forming time and robust mechanical design, making it an ideal choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40°C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male M12, 12-pin radial connector
- Mechanical design: Through hollow shaft with 8 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
