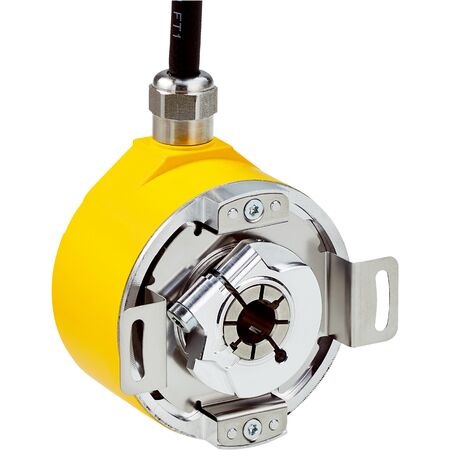

Safety Encoder AFM60S-TBSK262144 | SIL 3 & PL e Rated | High Resolution 262,144 Steps | by SICK
The Safety Encoder AFM60S-TBSK262144 is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and robust aluminum housing rated IP65, it ensures reliable operation in safety-critical applications. Ideal for robotics and motion control systems, this encoder provides precise position and speed feedback even in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60S-TBSK262144 | SIL 3 & PL e Rated | High Resolution 262,144 Steps | by SICK
Brand: SICK
SKU: 1145197
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high resolution encoder, SSI encoder, through hollow shaft encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps/rev x 4,096 revolutions (18 bit x 12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Mechanical design: Through hollow shaft with 8 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Protection class: III (DIN EN 61140)
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 18 g, 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Through hollow shaft design with 8 mm shaft diameter and feather key groove
- Robust aluminum die cast housing with IP65 protection rating
- Operating temperature range from -30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Communication via SSI and Sin/Cos interfaces
- Low start-up and operating torque for efficient operation
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel with experience in safety-related encoder systems is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation requiring high safety and precision
- Safety-related motion control systems
- Robotics and machinery with safety compliance needs
- Position and speed feedback in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W reduces energy usage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFM60S-TBSK262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
