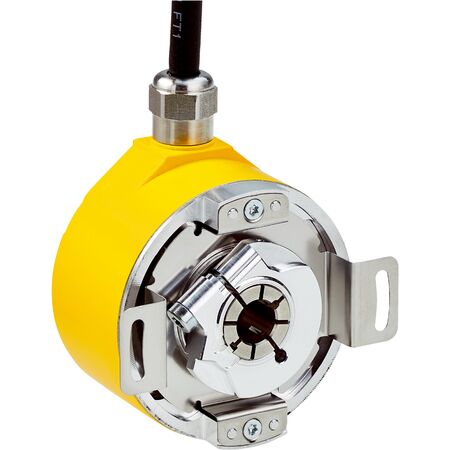

Safety Encoder AFM60S-TDSK262144 | SIL 3 & PL e Certified | 262,144 Steps/Rev | IP65 Rated | by SICK
The AFM60S-TDSK262144 safety encoder delivers exceptional performance with SIL 3 and PL e certification, making it ideal for industrial automation and safety-critical applications. With a high resolution of 262,144 steps per revolution and robust IP65 protection, this encoder ensures reliable position and speed measurement even in harsh environments. Designed for longevity and low power consumption, it’s perfect for robotics and machinery requiring stringent safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Number of revolutions: 4,096 (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 12-wire, radial, 1.5 m
- Mechanical design: Through hollow shaft with 10 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +85 °C
- EMC standards: EN 61000-6-2, EN 61000-6-3, EN 61000-6-7
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Through hollow shaft design with 10 mm shaft diameter and feather key groove
- Robust aluminum die cast housing with IP65 protection rating
- Operating temperature range from -30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Communication via SSI interface with Sin/Cos signals
- Low power consumption of 0.7 W
- High resistance to shocks (100 g) and vibration (18 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and compliant with relevant safety standards to ensure proper integration and operation.
Applications
- Industrial automation and control systems
- Safety-related motion control
- Robotics and machinery requiring SIL 3 and PL e safety levels
- Position and speed measurement in harsh environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-TDSK262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
