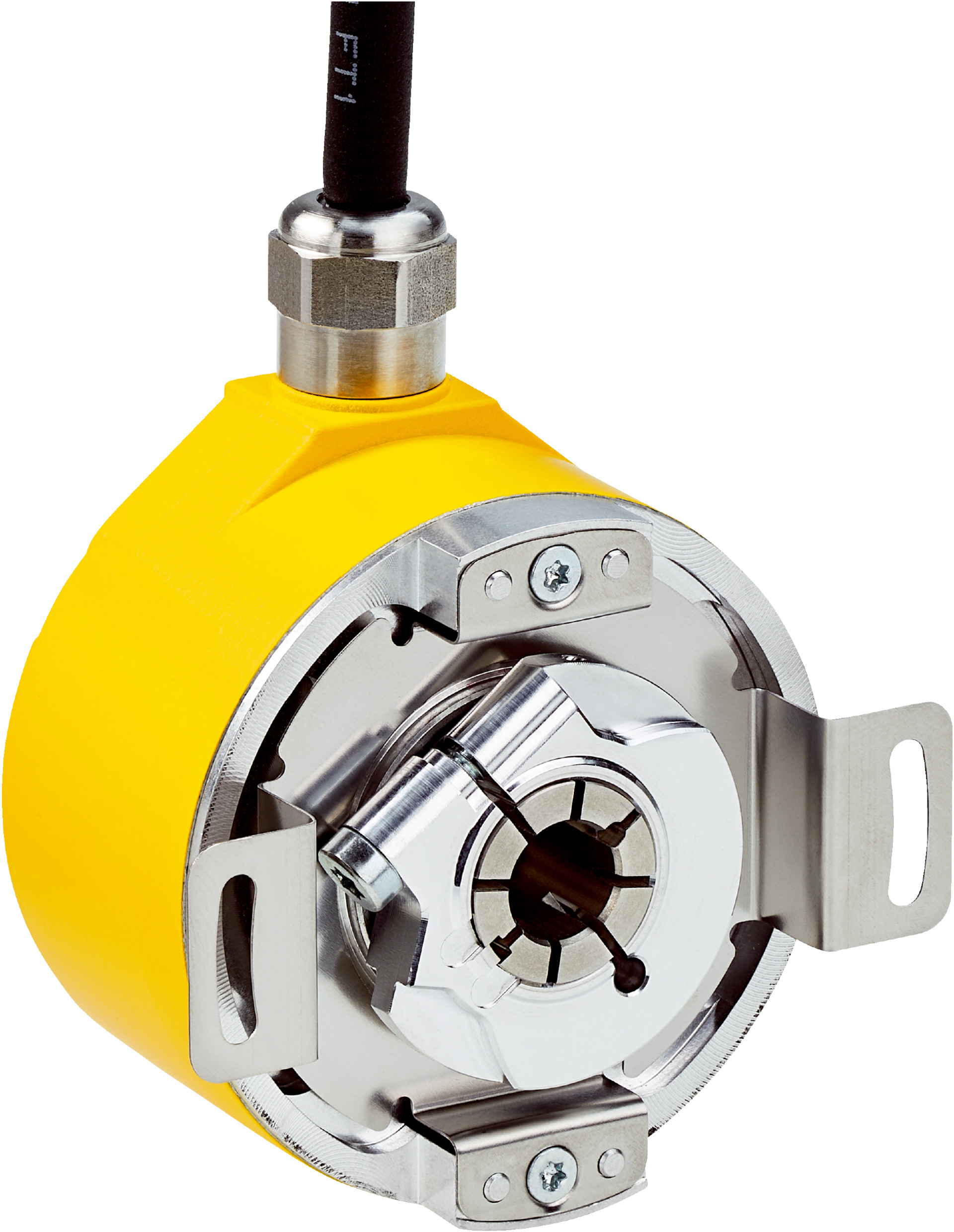

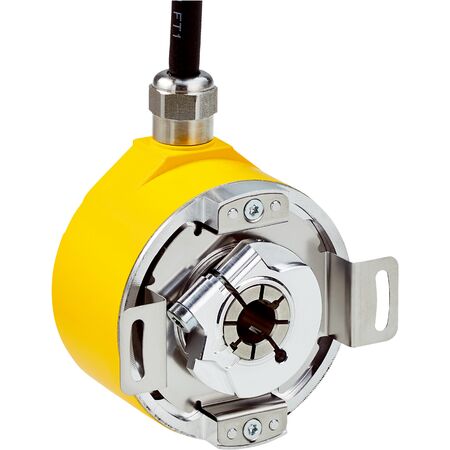

Safety Encoder AFM60S-TEKN262144 | SIL 3 & PL e Performance | 262,144 Steps | IP65 Enclosure | by SICK
The Safety Encoder AFM60S-TEKN262144 is engineered for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and robust IP65-rated housing, it ensures reliable position and speed monitoring in safety-critical environments. Ideal for robotics and machinery, this encoder is built to withstand harsh conditions while providing exceptional accuracy and repeatability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Number of revolutions: 4,096 (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 12-wire, radial, 10 m
- Mechanical design: Through hollow shaft with 12 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Through hollow shaft design with 12 mm shaft diameter and feather key groove
- Robust aluminum die cast housing with IP65 enclosure rating
- Operating temperature range from -30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Communication interface SSI with Sin/Cos output
- Low power consumption of 0.7 W without load
- High repeatability with standard deviation of 0.002°
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and compliant with relevant safety standards to ensure proper integration and operation.
Applications
- Industrial automation requiring high safety integrity level encoders
- Robotics and machinery with SIL 3 and PL e safety requirements
- Position and speed monitoring in safety-critical environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption minimizes energy usage in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFM60S-TEKN262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
