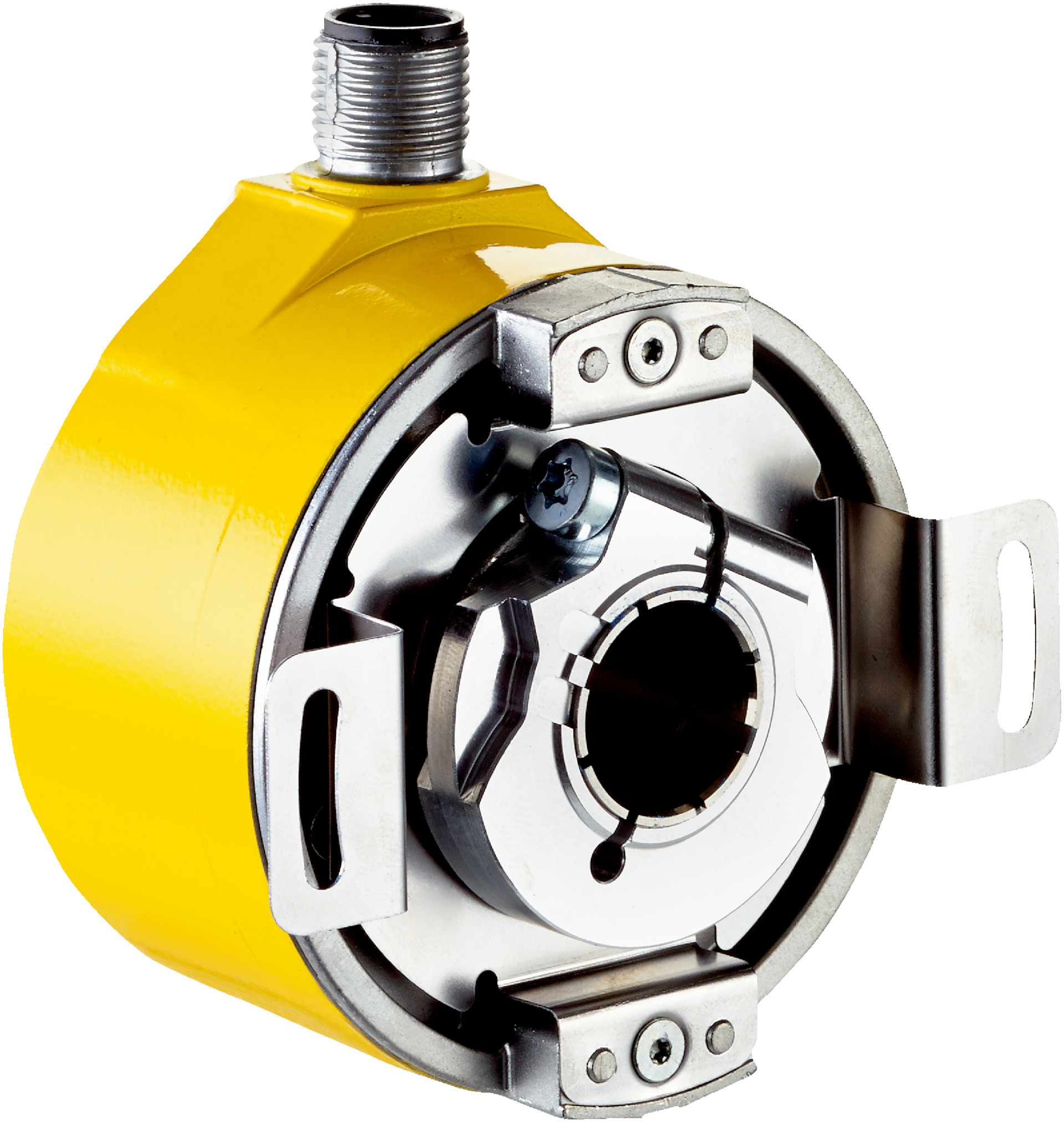

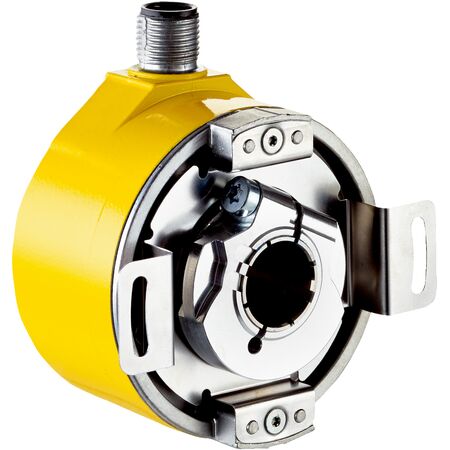

Safety Encoder AFM60S-TESC262144 | SIL 3 & PL e | 262,144 Steps | IP65 Protection | by SICK
The AFM60S-TESC262144 safety encoder is designed for industrial automation, featuring a SIL 3 safety integrity level and high resolution of 262,144 steps per revolution. With a robust aluminum die cast housing and IP65 protection, it ensures reliable performance in safety-critical applications, making it ideal for robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3
- Performance level: PL e
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 18 bit x 12 bit (262,144 x 4,096 steps)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos, Gray code
- Initialization time: 2 seconds
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Connection type: Male M12, 12-pin radial connector
- Mechanical design: Through hollow shaft with 12 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating torque: ≤ 0.6 Ncm at 20 °C
- Operating speed: ≤ 6,000 min⁻¹
- Protection rating: IP65
- Operating temperature range: -30 °C to +85 °C
- EMC standards: EN 61000-6-2, EN 61000-6-3, EN 61000-6-7
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution: 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Through hollow shaft design with 12 mm shaft diameter and feather key groove
- Robust aluminum die cast housing with IP65 protection rating
- Communication interface: SSI + Sin/Cos with fast position forming time < 1 µs
- Operating temperature range from -30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel with expertise in safety-related encoder systems is recommended to ensure compliance with safety standards.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-related motion control systems
- Robotics and machinery with safety performance requirements
- Position and speed feedback in hazardous environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AFM60S-TESC262144 safety-related encoder is available for immediate purchase. Ideal for industrial automation and safety-critical applications requiring high precision and reliability.
