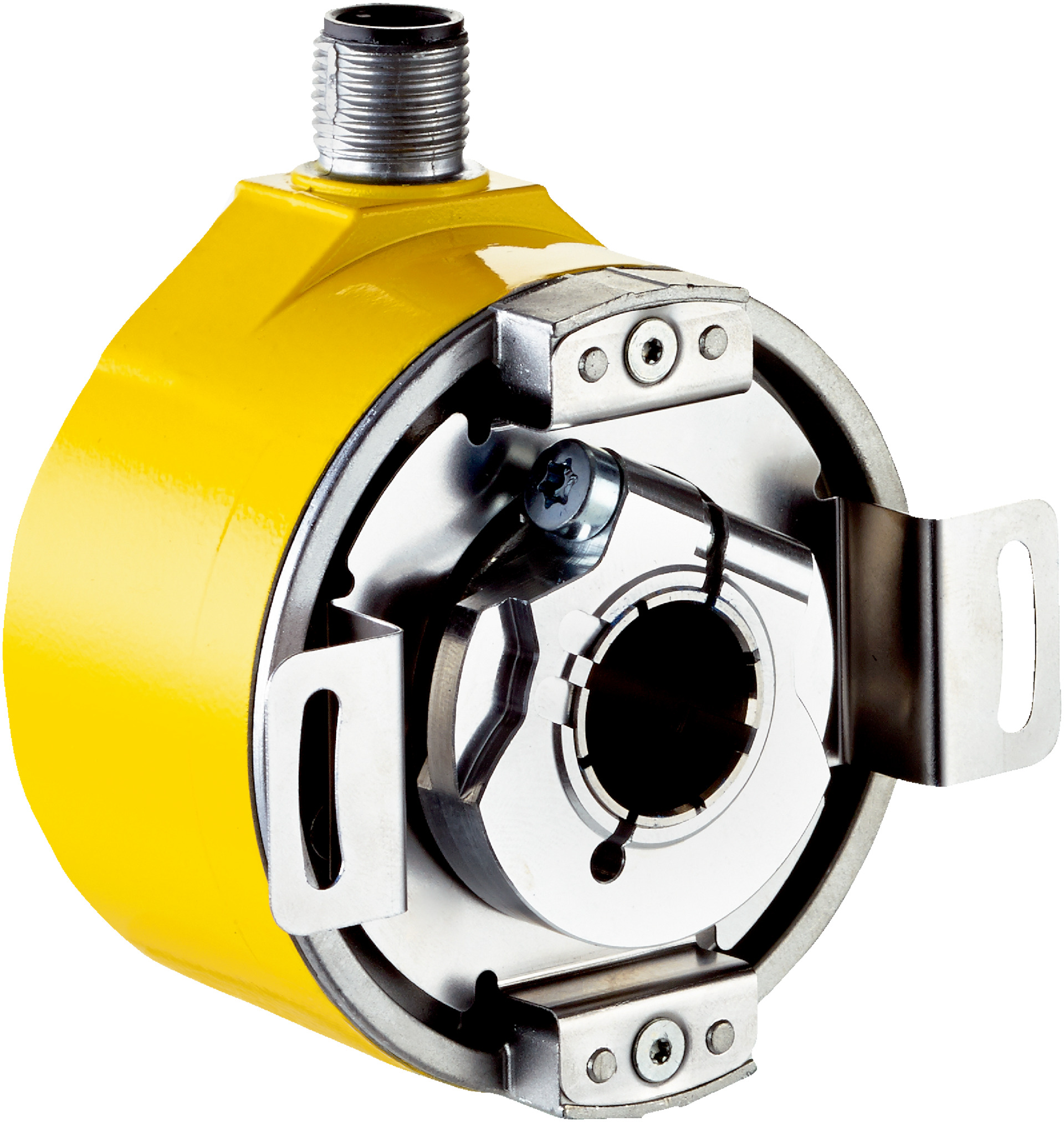

Safety Encoder AFM60S-TFSC262144 | SIL 3 & PL e Certified | 262,144 Steps | IP65 Protection | by SICK
The AFM60S-TFSC262144 safety encoder is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and robust IP65-rated housing, it ensures precision in safety-related motion control systems. Ideal for robotics and manufacturing equipment, this encoder offers exceptional reliability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Number of revolutions: 4,096 (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Through hollow shaft with 1/2 inch diameter shaft
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust aluminum die cast housing with IP65 protection
- Through hollow shaft design with stainless steel shaft and feather key groove
- Short-circuit and reverse polarity protection
- Operating temperature range from -30 °C to +85 °C
- Low start-up torque ≤ 0.8 Ncm and operating torque ≤ 0.6 Ncm
- Communication interface SSI with Sin/Cos signals
- High repeatability standard deviation σr of 0.002°
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation requiring high safety integrity level
- Safety-related motion control systems
- Precision position measurement in machinery
- Robotics and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W reduces energy usage
- Robust construction ensures long operational life under harsh conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-TFSC262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
