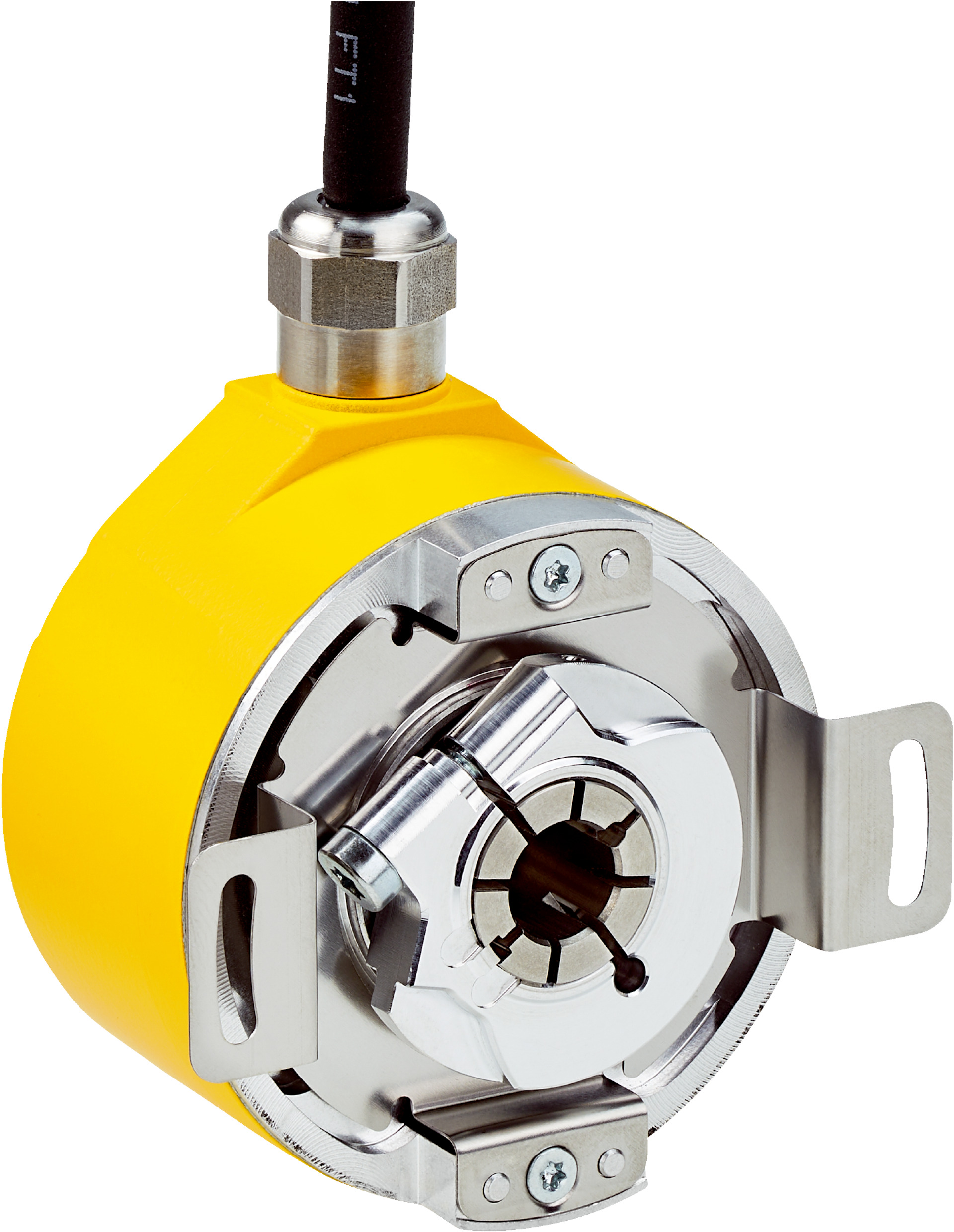

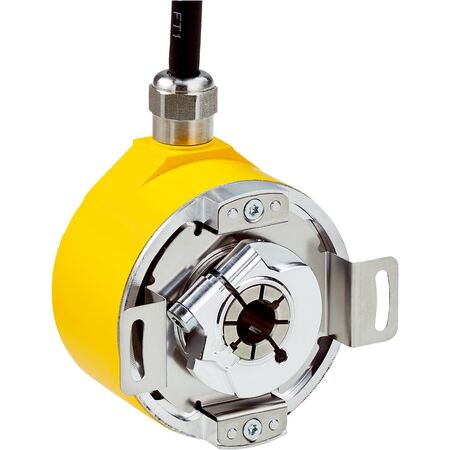

Safety Encoder AFM60S-TFSK262144 | SIL 3 & PL e Certified | High Resolution 262,144 Steps | IP65 Rated | by SICK
The Safety Encoder AFM60S-TFSK262144 is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and a robust IP65 enclosure, it ensures reliable position and speed feedback in safety-critical applications. Ideal for robotics and motion control systems, this encoder operates efficiently in harsh environments, providing exceptional accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: 12-wire cable, radial, 1.5 m
- Mechanical design: Through hollow shaft with 1/2 inch diameter shaft
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Through hollow shaft design with stainless steel shaft and aluminum housing
- Robust IP65 enclosure rating suitable for harsh environments
- Short-circuit and reverse polarity protection
- Low operating and start-up torque
- High repeatability with standard deviation of 0.002°
- Communication via SSI interface with Sin/Cos signals
- Wide operating temperature range from -30 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical wiring standards to ensure compliance with safety integrity levels.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-related motion control systems
- Robotics and machinery with safety performance requirements
- Position and speed feedback in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W contributes to energy efficiency
- Robust construction ensures long service life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-TFSK262144 safety-related encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
