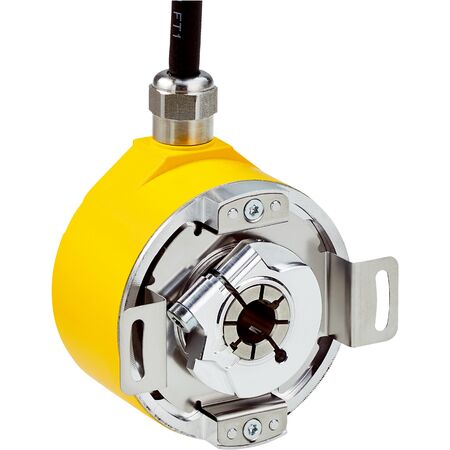

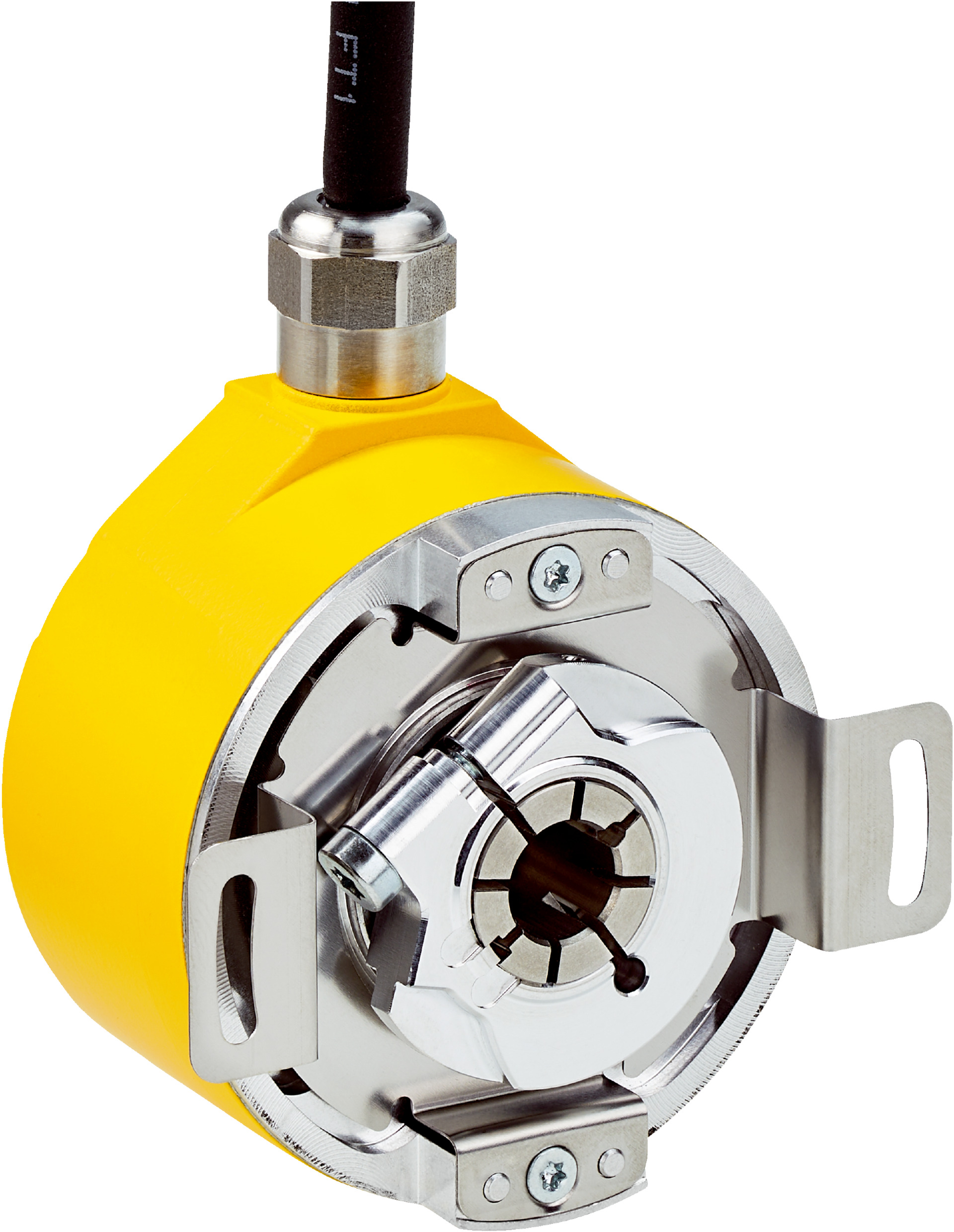

Safety Encoder AFM60S-THSK262144 | SIL 3 Compliance | 262,144 Steps/Rev | IP65 Rated | by SICK
The AFM60S-THSK262144 safety encoder is designed for industrial automation, featuring SIL 3 compliance and high resolution with 262,144 steps per revolution. Ideal for safety-related motion control systems, it offers robust performance with an IP65 rated enclosure, ensuring reliable operation in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFM60S-THSK262144 | SIL 3 Compliance | 262,144 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1085754
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high resolution safety encoder, industrial safety encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40°C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Mechanical design: Through hollow shaft with 15 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Weight: 0.25 kg
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e and category 3/4 compliance (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Low operating and start-up torque for efficient operation
- Short-circuit and reverse polarity protection
- Fast initialization time of 2 seconds and position forming time under 1 microsecond
- Communication via SSI interface with Sin/Cos output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical safety standards.
Applications
- Industrial automation requiring high safety and precision
- Safety-related motion control systems
- Robotics and machinery with safety performance level PL e
- Position and speed feedback in hazardous environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption of 0.7 W minimizes energy use
- Long bearing lifetime reduces maintenance and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFM60S-THSK262144 safety encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high precision and SIL 3 compliance.
