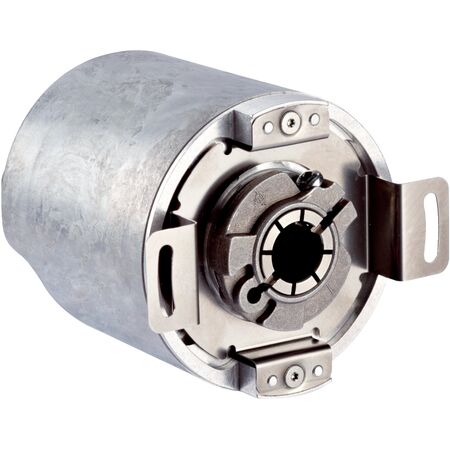

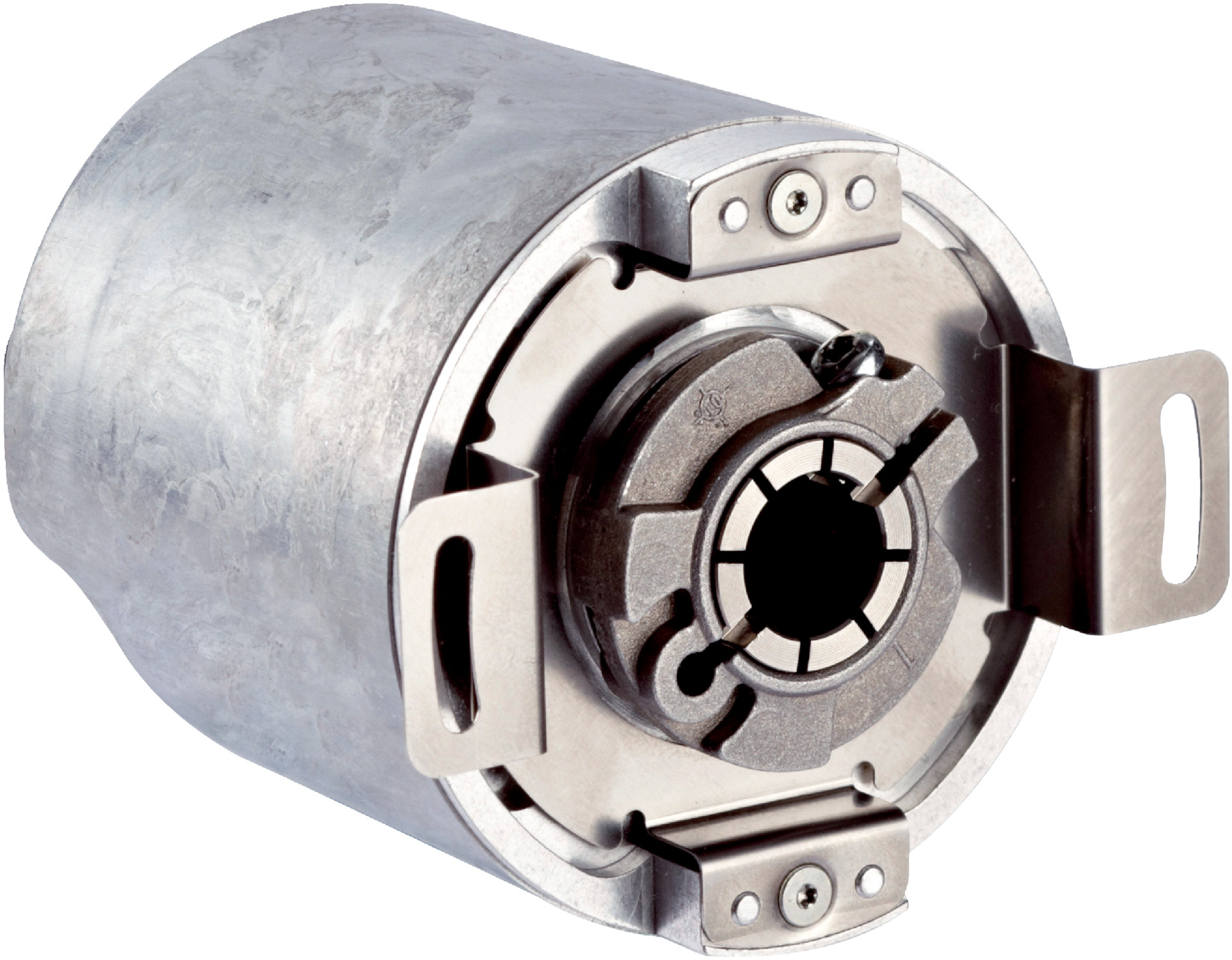

Safety Encoder AFS60A-BBIB262144 | 262,144 Steps/Rev | EtherNet/IP Communication | IP65/IP67 Rated | by SICK
The AFS60A-BBIB262144 safety encoder delivers high precision with 262,144 steps per revolution and EtherNet/IP communication for seamless integration. Designed for industrial automation, it ensures reliability with an MTTFD of 80 years and robust IP65/IP67 protection, making it ideal for safety-critical applications in robotics and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Max resolution: 262,144 steps/rev (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherNet/IP™ with 10/100 Mbit/s
- Connection type: Male and female M12, 4-pin axial connectors
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Blind hollow shaft, 8 mm diameter
- Operating speed: ≤ 6,000 min⁻¹
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 80 years
- EtherNet/IP™ communication interface with 10/100 Mbit/s data rate
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 shaft side and IP67 housing side protection rating
- Reverse polarity protection and low power consumption (≤ 3 W)
- Comprehensive diagnostics data and device level ring (DLR) support
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety and EtherNet/IP communication standards to ensure proper integration and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Safety-related applications requiring high reliability and accuracy
- Robotics and motion control systems
- Factory automation and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFS60A-BBIB262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
