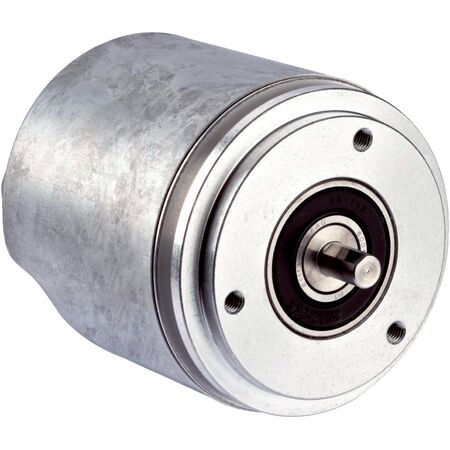

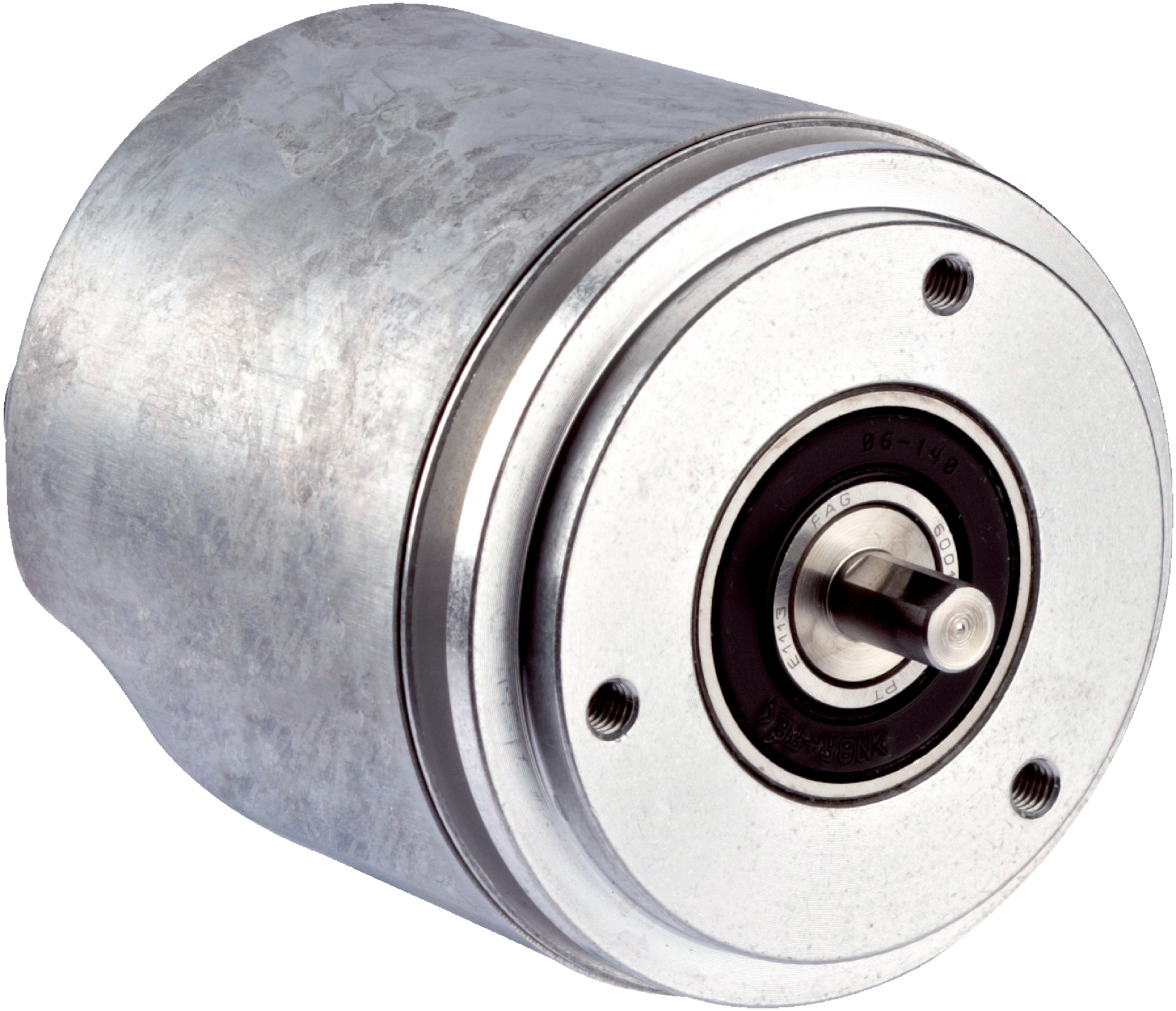

Safety Encoder AFS60A-S1IB262144 | 262,144 Steps/Rev | EtherNet/IP Interface | IP65/IP67 Rated | by SICK
The AFS60A-S1IB262144 safety encoder delivers high-resolution feedback with 262,144 steps per revolution, making it ideal for industrial automation and safety-critical applications. With an EtherNet/IP communication interface and robust design featuring a stainless steel shaft, this encoder ensures reliable performance in demanding environments. Its IP65/IP67 rating provides excellent protection against dust and water, making it suitable for various applications including robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFS60A-S1IB262144 | 262,144 Steps/Rev | EtherNet/IP Interface | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1055362
Alternatively Known As: Safety encoder, high-resolution rotary encoder, EtherNet/IP encoder, industrial position sensor
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherNet/IP™
- Encoder profile: V4.1 class3
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: Approx. 10 s
- RPI (requested packet interval): 5 ms ... 750 ms
- Connection type: Male connector M12 4-pin axial; Female connector M12 4-pin axial
- Supply voltage: 10 ... 30 V
- Power consumption: ≤ 3 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 80 years
- EtherNet/IP communication interface with 10/100 Mbit/s data transmission
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 shaft side and IP67 housing side protection
- Reverse polarity protection and low power consumption (≤ 3 W)
- Supports Device Level Ring (DLR) for network redundancy
- Extensive diagnostics data available including temperature, speed, and operating hours
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure safety and optimal performance.
Applications
- Industrial automation requiring precise position and speed feedback
- Safety-related motion control systems
- Servo motor feedback and control
- Robotics and machine tool applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60A-S1IB262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
