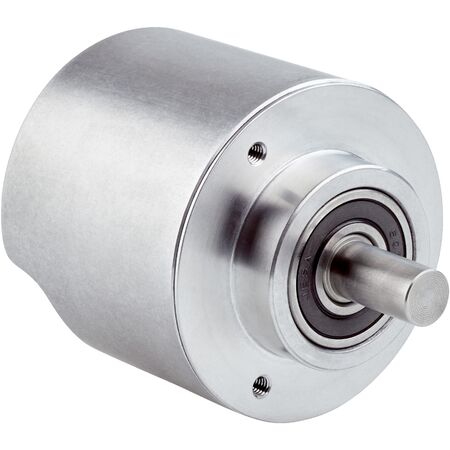

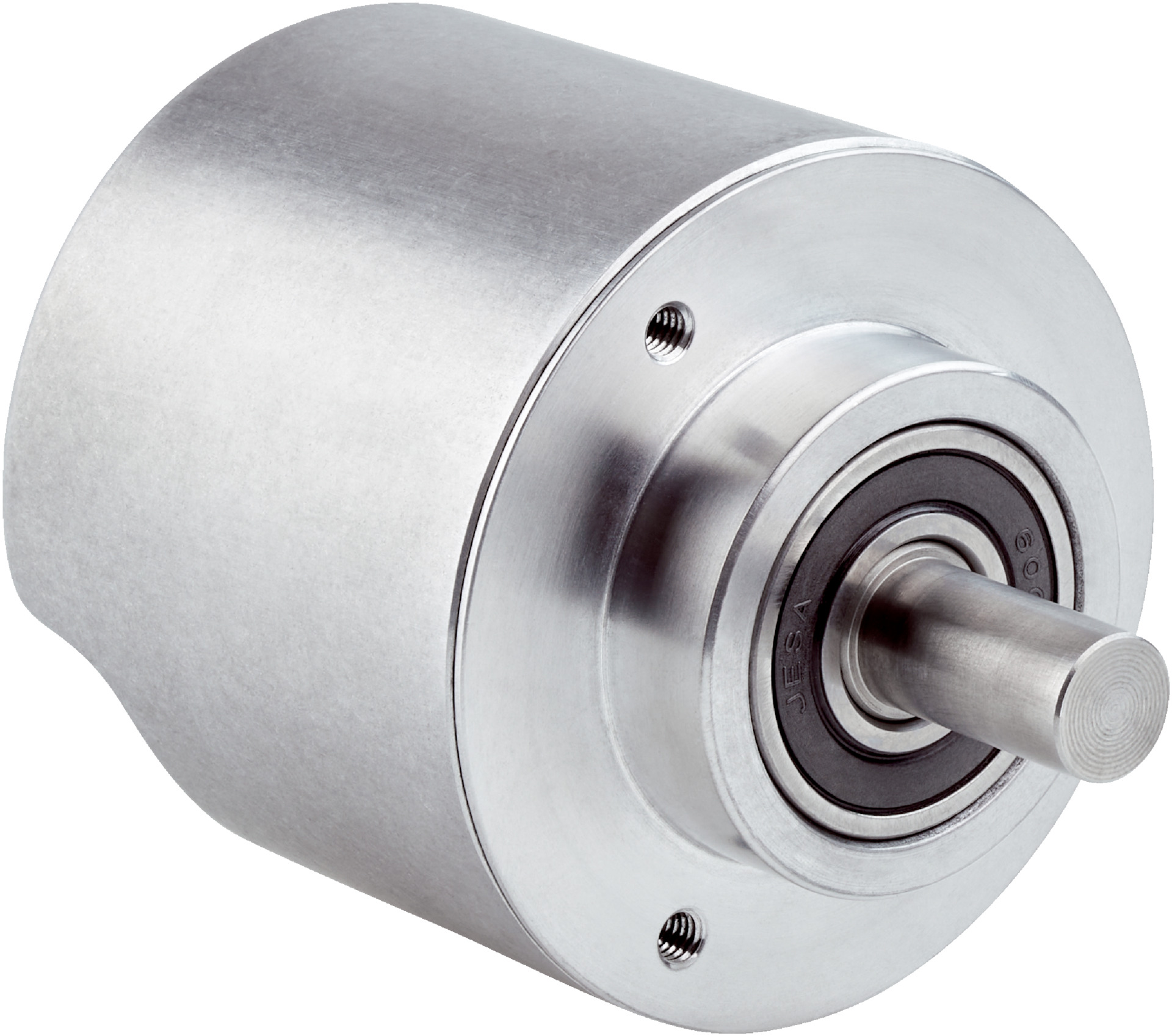

Safety Encoder AFS60A-S5IB262144 | 262,144 Steps/Rev | EtherNet/IP Communication | IP65/IP67 Rated | by SICK
The AFS60A-S5IB262144 safety encoder delivers high precision with 262,144 steps per revolution, making it ideal for industrial automation and safety-critical applications. With an EtherNet/IP communication interface and robust design featuring a stainless steel shaft, this encoder ensures reliable performance in demanding environments. Its long mean time to dangerous failure (MTTFD) of 80 years enhances safety in machinery control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherNet/IP™
- Encoder profile: V4.1 class3
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: Approx. 10 s
- RPI (requested packet interval): 5 ms ... 750 ms
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Supply voltage: 10 ... 30 V
- Power consumption: ≤ 3 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of the rotor: 6.2 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 80 years
- EtherNet/IP communication interface with 10/100 Mbit/s data rate
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 shaft side and IP67 housing side protection
- Reverse polarity protection and low power consumption (≤ 3 W)
- Advanced diagnostics data available including temperature, speed, and operating hours
- Supports Device Level Ring (DLR) for network redundancy
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial safety encoders and EtherNet/IP networks to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation requiring precise position and speed feedback
- Safety-related machinery control systems
- Robotics and motion control applications
- Factory automation with Ethernet/IP communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFS60A-S5IB262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliable communication.
