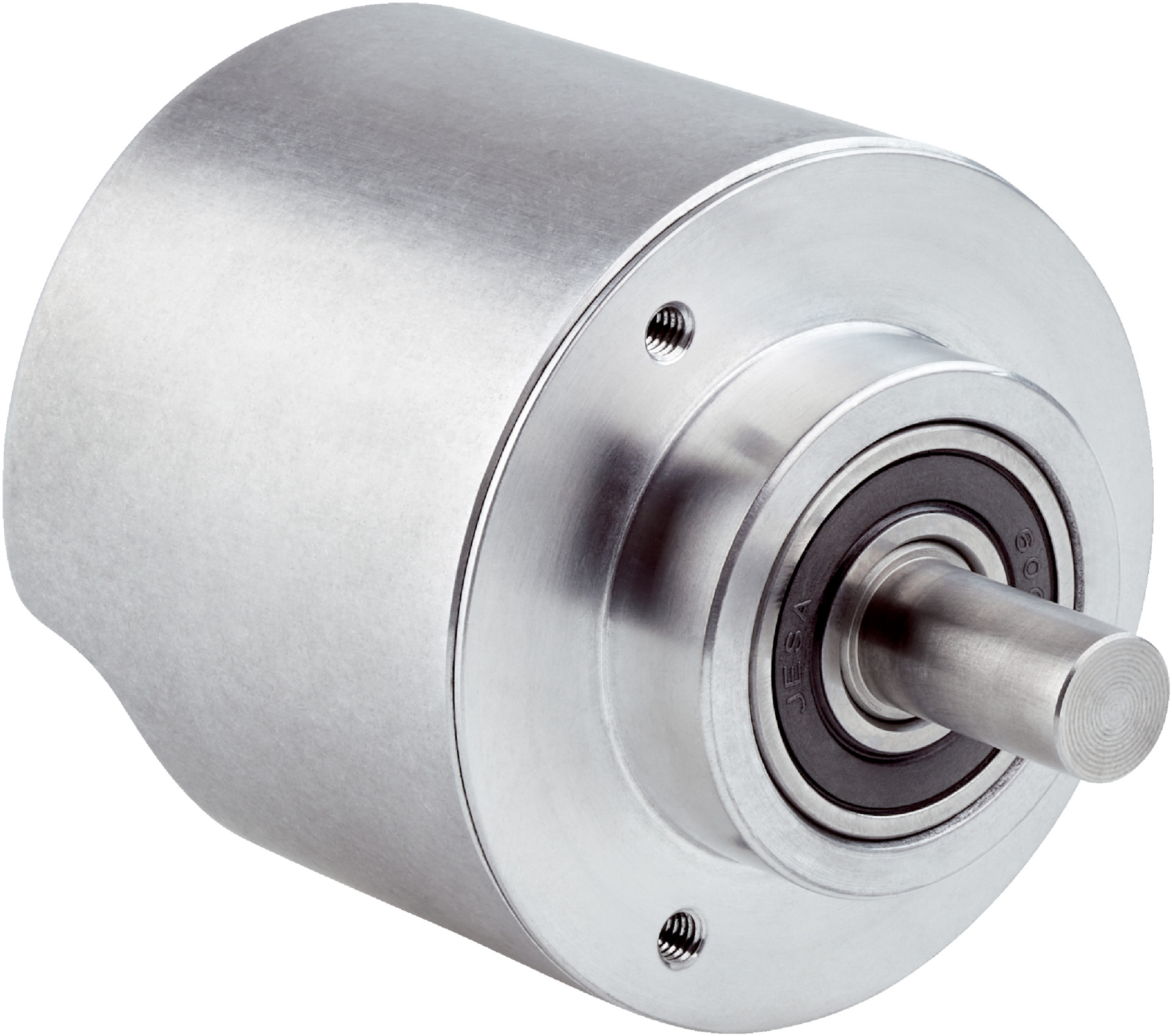

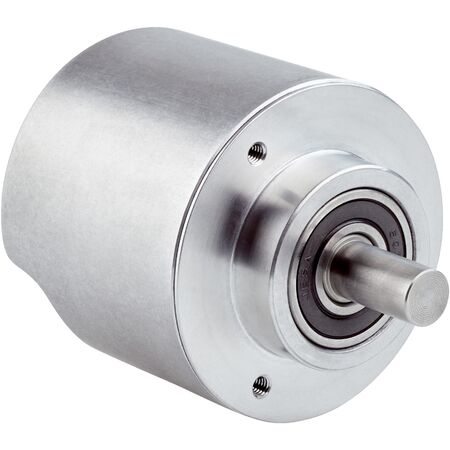

Safety Encoder AFS60A-S6IB262144 | 262,144 Steps/Rev | EtherNet/IP Communication | IP65/IP67 Rated | by SICK
The AFS60A-S6IB262144 safety encoder delivers high-resolution feedback with 262,144 steps per revolution, making it ideal for industrial automation and safety-critical applications. With a robust design featuring a stainless steel shaft and aluminum housing, it ensures reliable performance in harsh environments. Its EtherNet/IP communication interface supports fast data transmission, while the IP65/IP67 ratings provide protection against dust and water, ensuring longevity and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherNet/IP
- Encoder profile: V4.1 class3
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: Approx. 10 s
- RPI (requested packet interval): 5 ms to 750 ms
- Connection type: Male and female M12, 4-pin axial connectors
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 3/8 inch
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 80 years
- Communication via EtherNet/IP with 10/100 Mbit/s data transmission
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity protection and low power consumption (≤ 3 W)
- Supports Device Level Ring (DLR) for network redundancy
- Wide operating temperature range from -40 °C to +85 °C
- High resistance to shocks (100 g) and vibrations (30 g)
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial automation and safety systems is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation requiring precise position and speed feedback
- Safety-related motion control systems
- Robotics and machine tool applications
- Process control systems with high safety standards
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product life and reduces waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60A-S6IB262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
