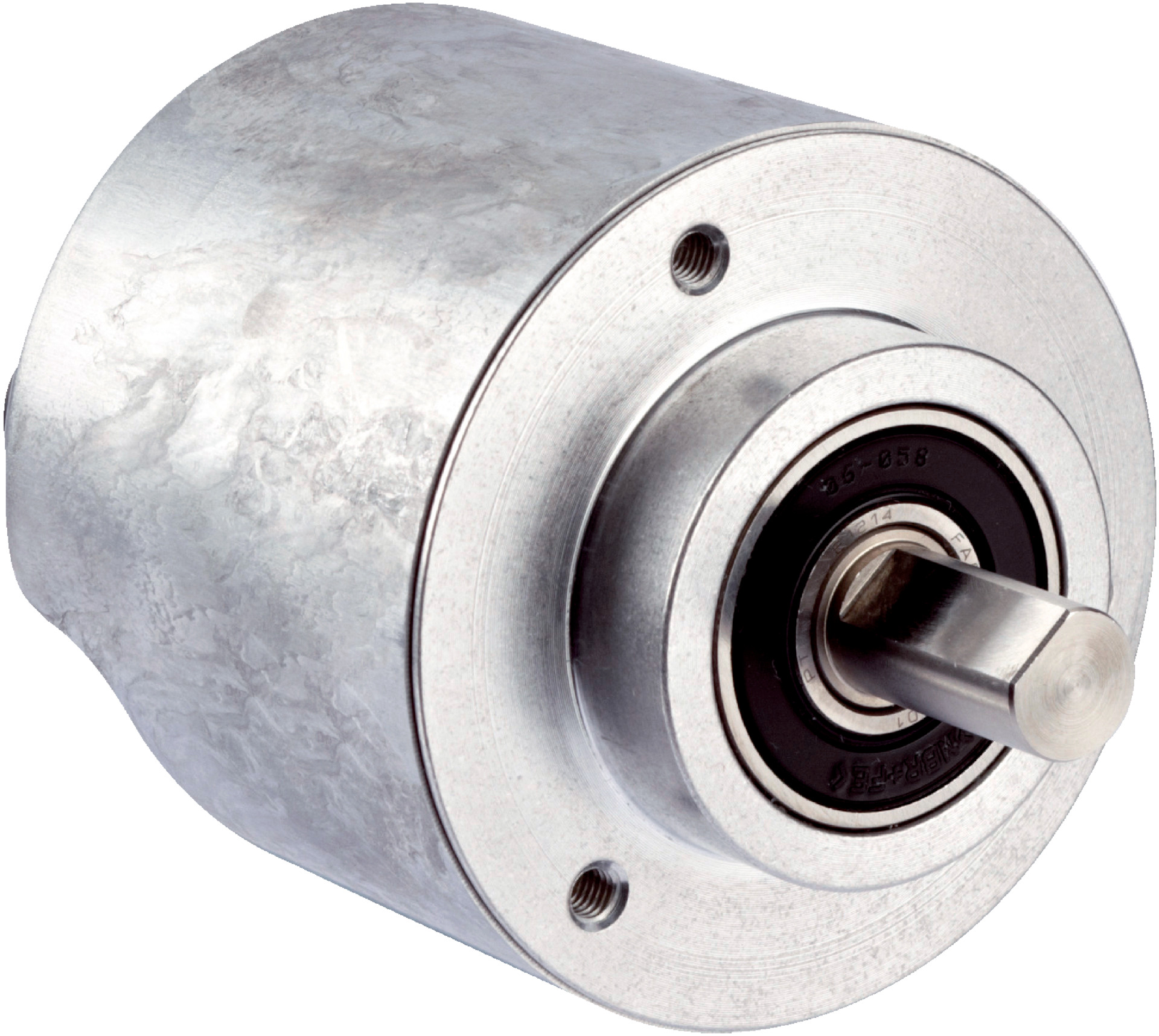

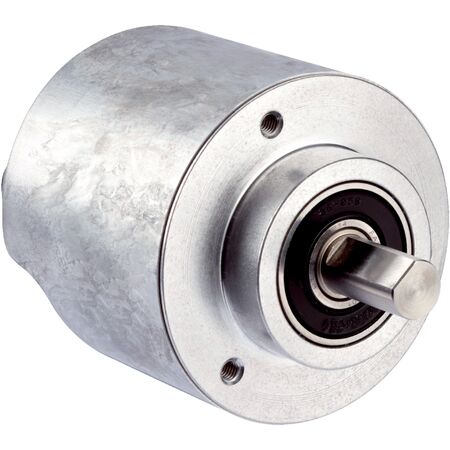

Safety Encoder AFS60A-S7IB262144 | 262,144 Steps/Rev | EtherNet/IP Communication | IP65/IP67 Rated | by SICK
The AFS60A-S7IB262144 safety encoder delivers high precision with 262,144 steps per revolution, making it ideal for industrial automation and safety systems. Designed for robust performance, it features EtherNet/IP communication and an impressive MTTFD of 80 years, ensuring reliability in demanding environments. Perfect for robotics and motion control applications, this encoder withstands harsh conditions with its IP65/IP67 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit)
- MTTFD: 80 years (EN ISO 13849-1)
- Communication: EtherNet/IP™, 10/100 Mbit/s over CAT-5e cable
- Connection: Male and female M12, 4-pin axial connectors
- Supply Voltage: 10 to 30 V
- Power Consumption: ≤ 3 W (without load)
- Mechanical: Solid shaft 3/8", face mount flange, stainless steel shaft
- Operating Speed: Up to 9,000 min⁻¹
- Enclosure Rating: IP65 shaft side, IP67 housing side
- Operating Temperature: -40 °C to +85 °C
- Shock Resistance: 100 g, 6 ms
- Vibration Resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 80 years
- Robust mechanical design with solid shaft and face mount flange
- IP65 rated shaft side and IP67 rated housing side for harsh environments
- Supports EtherNet/IP™ communication interface with 10/100 Mbit/s data rate
- Reverse polarity protection and low power consumption (≤ 3 W)
- Extensive diagnostics data available including temperature, speed, and operating hours
- High operating speed up to 9,000 min⁻¹ and resistance to shocks and vibration
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial safety and automation systems is recommended to ensure compliance and optimal performance.
Applications
- Industrial automation and safety systems
- Robotics and motion control
- Machine safety monitoring
- Position and speed measurement in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AFS60A-S7IB262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety applications requiring high precision and reliability.
