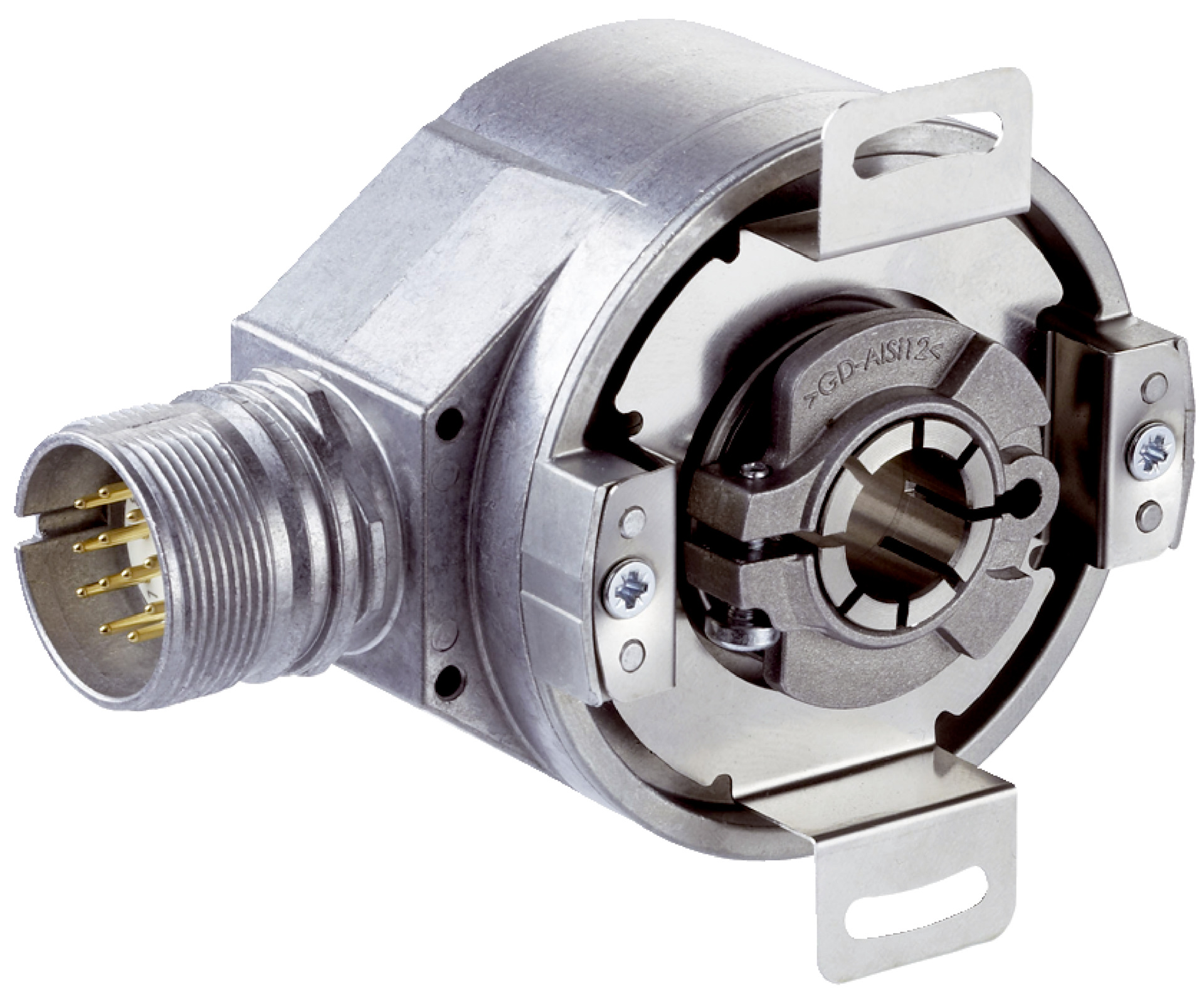

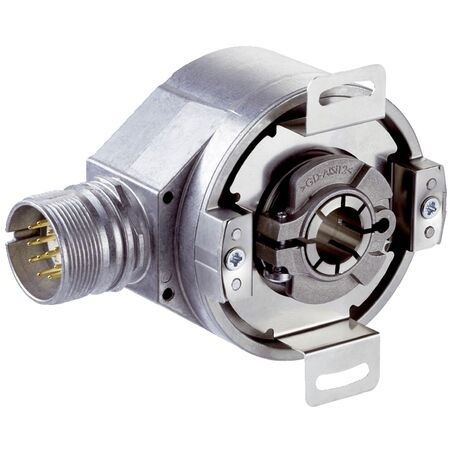

Safety Encoder AFS60A-TFPA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The AFS60A-TFPA262144 safety encoder delivers high-resolution feedback with 262,144 steps per revolution, making it ideal for industrial automation and safety-critical applications. With a robust through hollow shaft design and an impressive MTTFD of 250 years, this encoder ensures reliable performance in harsh environments. Its low power consumption and fast initialization time enhance efficiency, making it a top choice for robotics and machinery requiring precise position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft
- Shaft diameter: 1/2 inch
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 250 years
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low power consumption ≤ 0.7 W and wide supply voltage range 4.5 to 32 V
- Reverse polarity protection included
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Gray code
- High resistance to shocks (60 g) and vibrations (20 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation and safety systems requiring precise position feedback
- Robotics and machinery with high safety standards
- Equipment monitoring in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFS60A-TFPA262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
