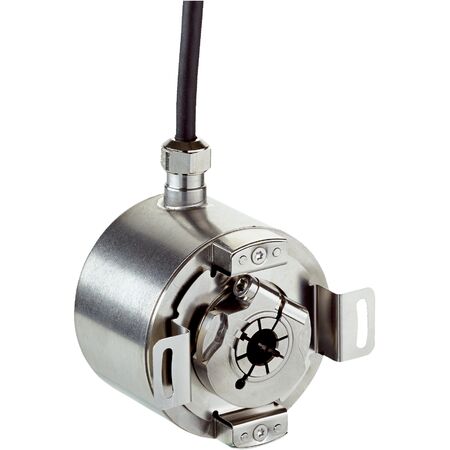

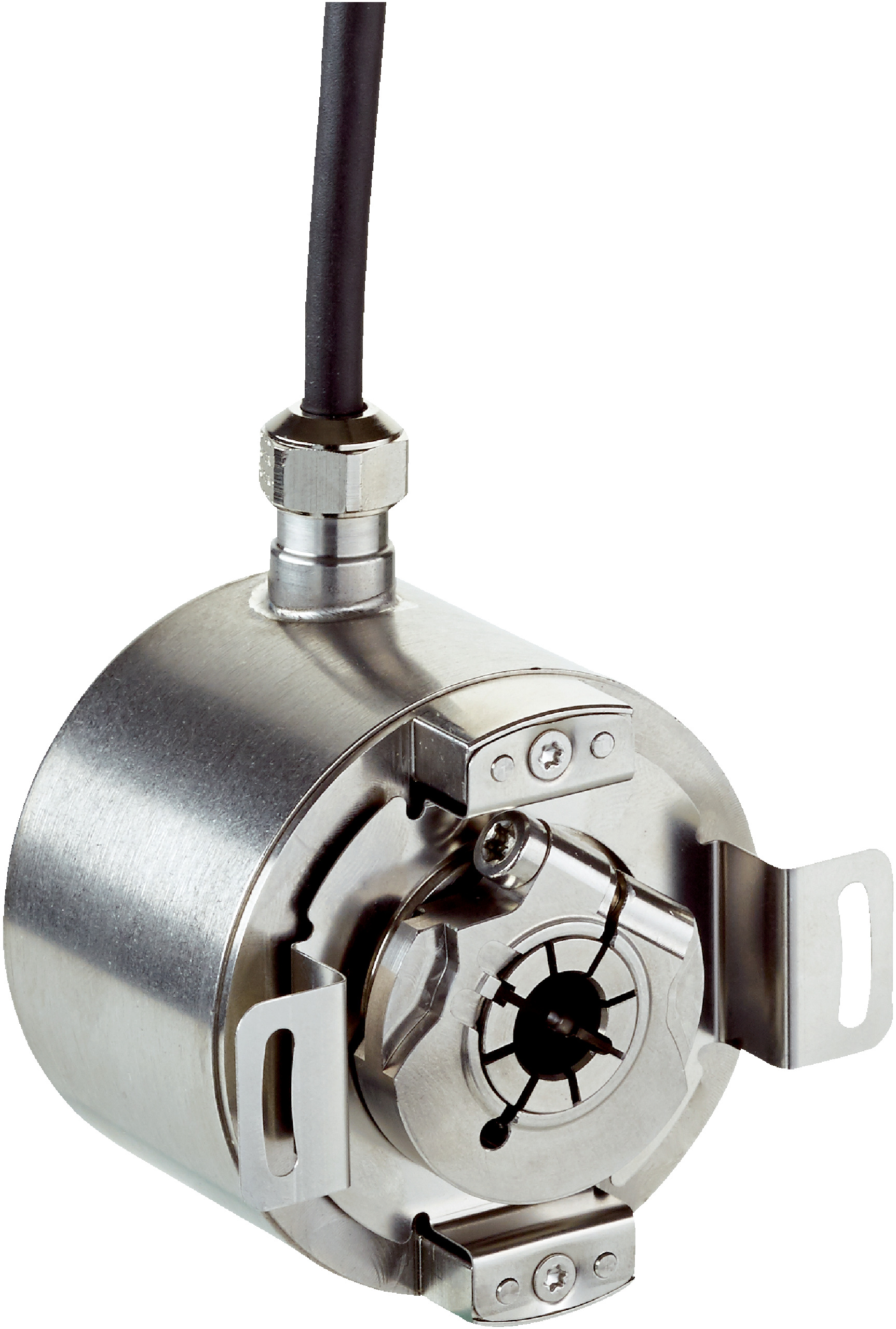

Safety Encoder AFS60I-BDPK262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The Safety Encoder AFS60I-BDPK262144 offers high-resolution feedback with 262,144 steps per revolution, making it ideal for industrial automation and safety systems. Built for precision and durability, this encoder features a robust stainless steel design and an IP67 rating for protection against dust and water, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Blind hollow shaft, 10 mm diameter
- Materials: Stainless steel V2A (shaft, flange, housing)
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial and axial
- Operating speed: 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 250 years compliant with EN ISO 13849-1
- Robust stainless steel V2A housing, shaft, and flange
- Blind hollow shaft design with front clamp
- IP67 rated enclosure for protection against dust and water
- Reverse polarity protection and low power consumption (≤ 0.5 W)
- Fast initialization time of 50 ms and position forming time under 1 µs
- Supports SSI communication interface with Gray code
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical safety and encoder integration to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and safety systems requiring precise position feedback
- Robotics and machinery with safety-related motion control
- High-speed rotary applications up to 6,000 min⁻¹
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel construction extends product lifespan, reducing waste
- Compliance with RoHS ensures restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60I-BDPK262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
