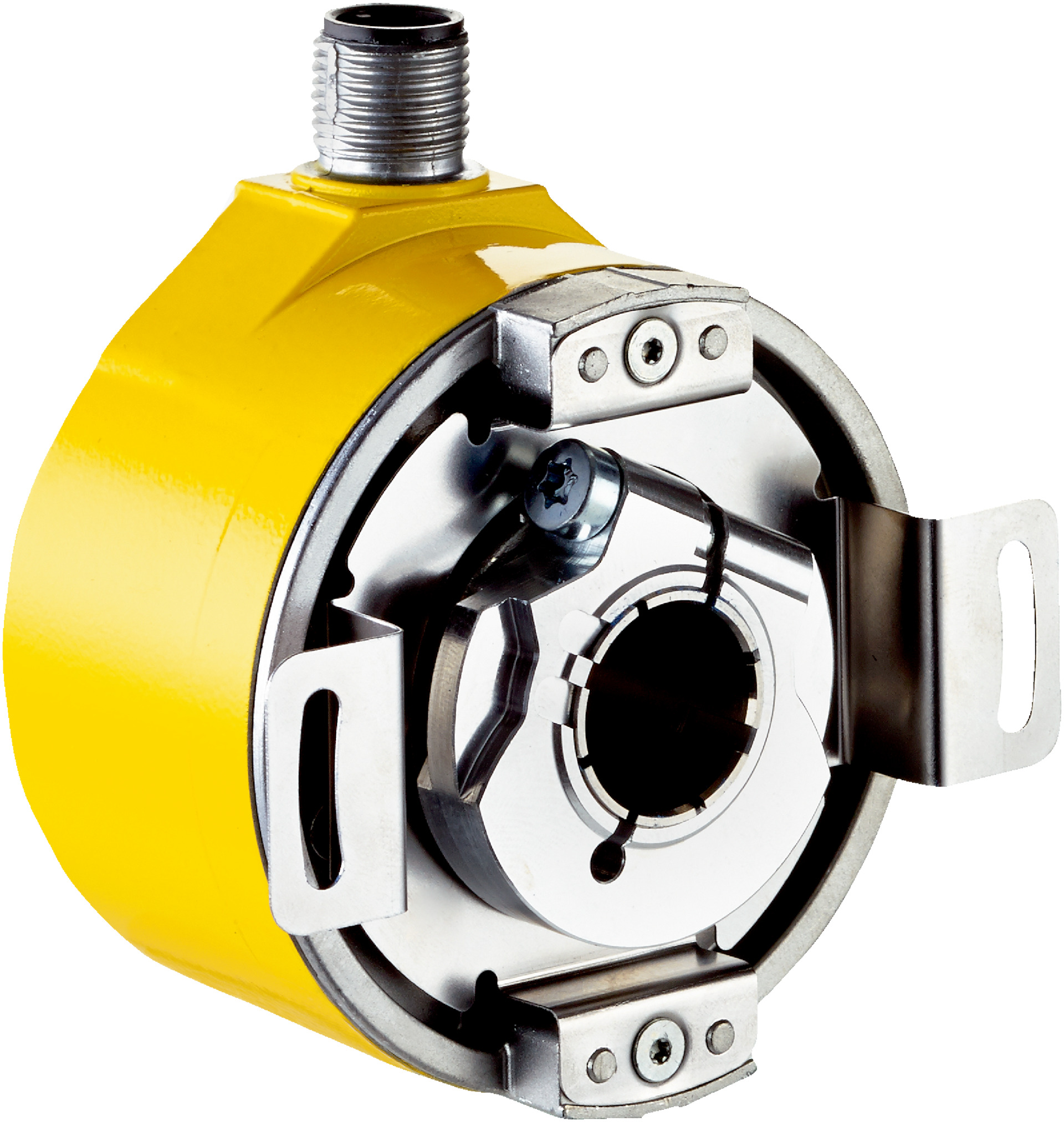

Safety Encoder AFS60S-BBKC001024 | SIL 3 & PL e Certified | 1,024 Steps/Rev | IP65 Rated | by SICK
The Safety Encoder AFS60S-BBKC001024 is designed for industrial automation, featuring SIL 3 and PL e safety certifications. With a high resolution of 1,024 steps per revolution and an IP65 rated enclosure, it ensures reliable performance in safety-critical applications. Ideal for robotics and motion control, this encoder offers robust mechanical design and low power consumption, making it a perfect choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFS60S-BBKC001024 | SIL 3 & PL e Certified | 1,024 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1114513
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, PL e encoder, SSI encoder, Sin/Cos encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- PFH: 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 1,024 steps per revolution (10 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 s
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Blind hollow shaft with 8 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: –30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- Category 3 and 4 safety classification
- High resolution with 1,024 steps per revolution (10 bit)
- Repeatability standard deviation of 0.002°
- Communication interface: SSI + Sin/Cos
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- Operating temperature range from –30 °C to +85 °C
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation by qualified personnel with experience in safety-related encoder systems is recommended to ensure compliance with safety standards.
Applications
- Industrial automation and safety systems requiring high safety integrity level encoders
- Robotics and machinery with safety-related position feedback
- Safety-critical motion control applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 0.7 W reduces energy usage
- Durable materials and long bearing lifetime reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFS60S-BBKC001024 Safety Encoder is available for immediate purchase, ideal for industrial safety and automation applications.
