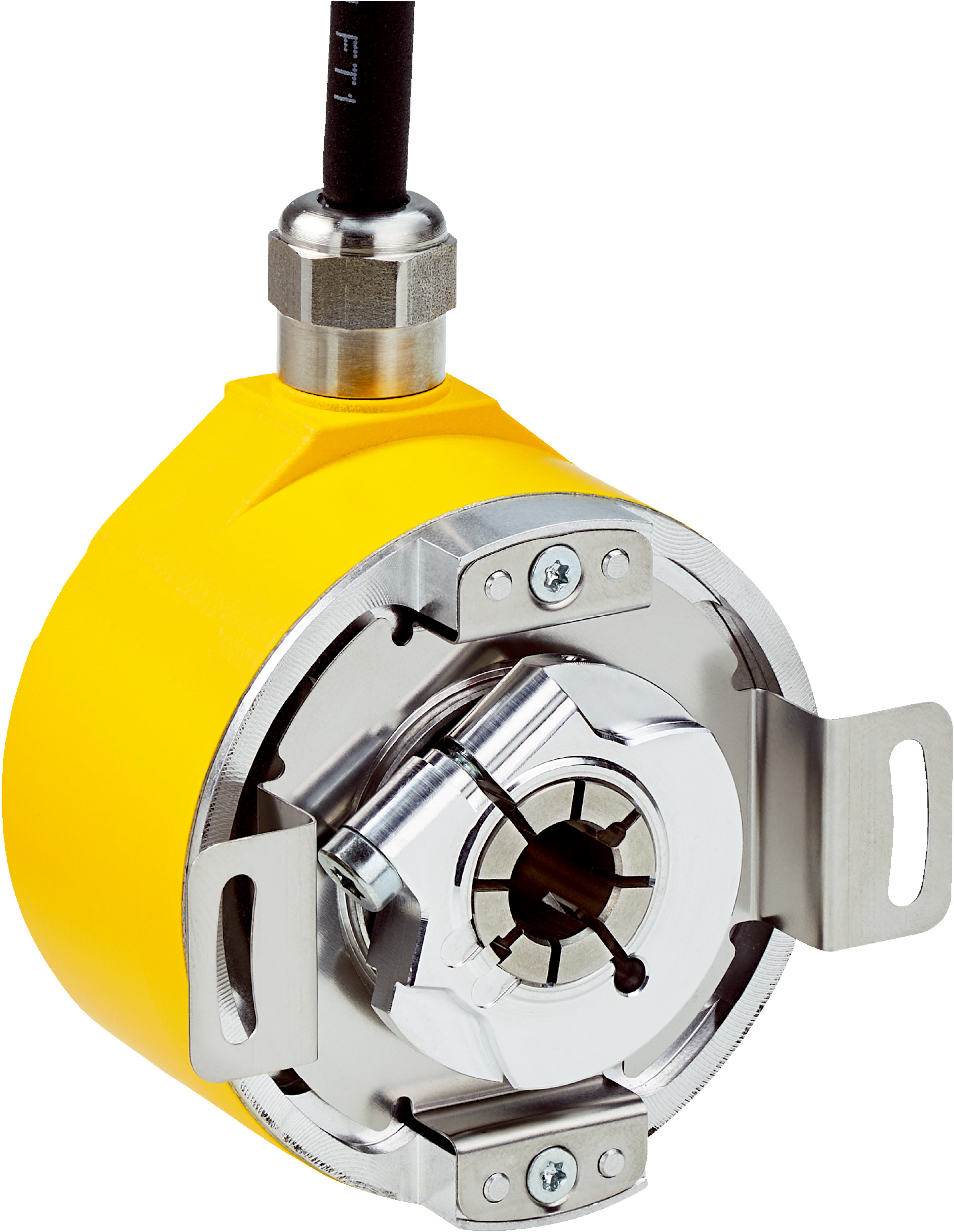

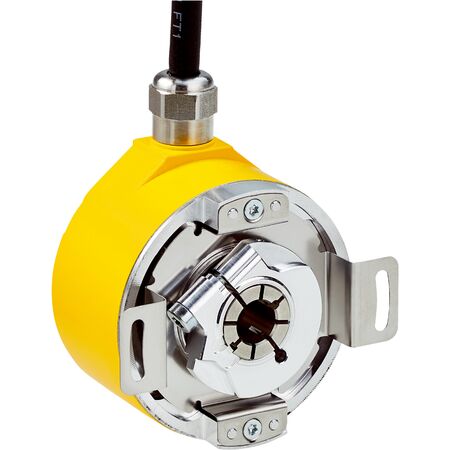

Safety Encoder AFS60S-BDSL262144 | SIL 3 & PL e Compliance | 262,144 Steps/Rev | IP65 Rated | by SICK
The AFS60S-BDSL262144 Safety Encoder is designed for industrial automation, offering SIL 3 and PL e compliance for high-precision position feedback. With a remarkable resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures reliable performance in harsh environments. Ideal for robotics and safety-related machinery control, this encoder provides robust protection against dust and water, making it a perfect choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFS60S-BDSL262144 | SIL 3 & PL e Compliance | 262,144 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1114563
Alternatively Known As: Safety encoder, SIL 3 encoder, PL e encoder, high-resolution rotary encoder, industrial safety encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: 12-wire cable, 3 m radial
- Mechanical design: Blind hollow shaft with 10 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 58mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution (18 bit)
- Robust blind hollow shaft design with stainless steel shaft and aluminum die cast housing
- IP65 rated enclosure for dust and water protection
- Short-circuit and reverse polarity protection
- Low start-up torque ≤ 0.8 Ncm and operating torque ≤ 0.6 Ncm
- Communication via SSI interface with Sin/Cos signals
- Operating temperature range from -30 °C to +85 °C
- High resistance to shocks (100 g) and vibration (18 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial automation and safety systems requiring high-precision position feedback
- Safety-related machinery control with SIL 3 and PL e compliance
- Robotics and motion control applications
- Hazardous environment equipment requiring robust and reliable encoders
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption of 0.7 W contributes to energy efficiency
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60S-BDSL262144 Safety Encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and precision.
