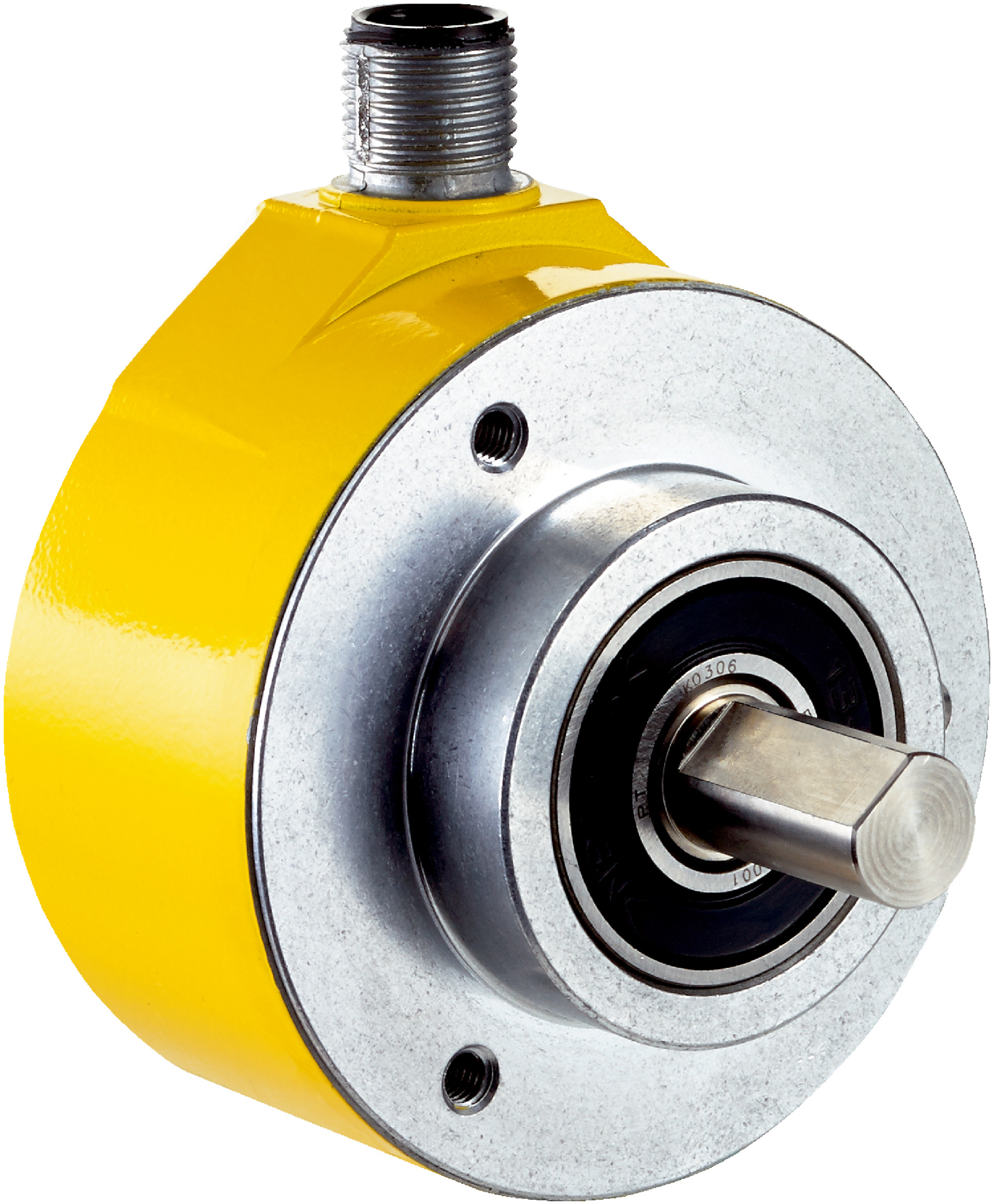

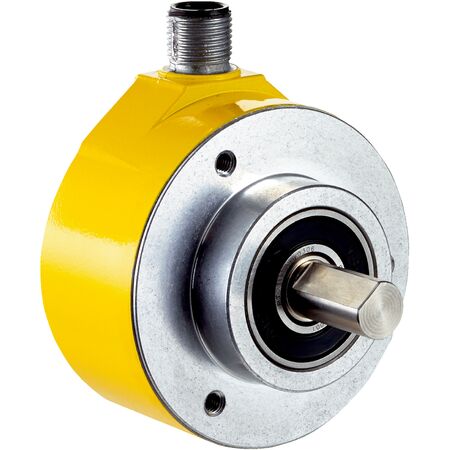

Safety Encoder AFS60S-S4KC001024 | SIL 3 & PL e Certified | IP65 Rated | by SICK
The AFS60S-S4KC001024 Safety Encoder is designed for industrial automation, featuring SIL 3 and PL e safety levels for high integrity applications. With a robust mechanical design and IP65 rating, it ensures reliable performance in harsh environments. Ideal for machine safety monitoring and robotics, this encoder provides precise position feedback and low power consumption, making it a perfect choice for safety-critical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFS60S-S4KC001024 | SIL 3 & PL e Certified | IP65 Rated | by SICK
Brand: SICK
SKU: 1114514
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, PL e encoder, industrial safety encoder, position encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 1,024 (10 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Weight: 0.3 kg
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- Category 3 and 4 safety classification (EN ISO 13849-1)
- High resolution with 1,024 steps per revolution (10 bit)
- Robust mechanical design with solid stainless steel shaft and aluminum housing
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Communication interfaces SSI and Sin/Cos with fast position forming time (< 1 µs)
- Low power consumption of 0.7 W without load
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation and safety systems requiring high safety integrity level encoders
- Machine safety monitoring and control
- Robotics and motion control requiring precise position feedback
- Safety-related applications in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60S-S4KC001024 Safety Encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety compliance.
