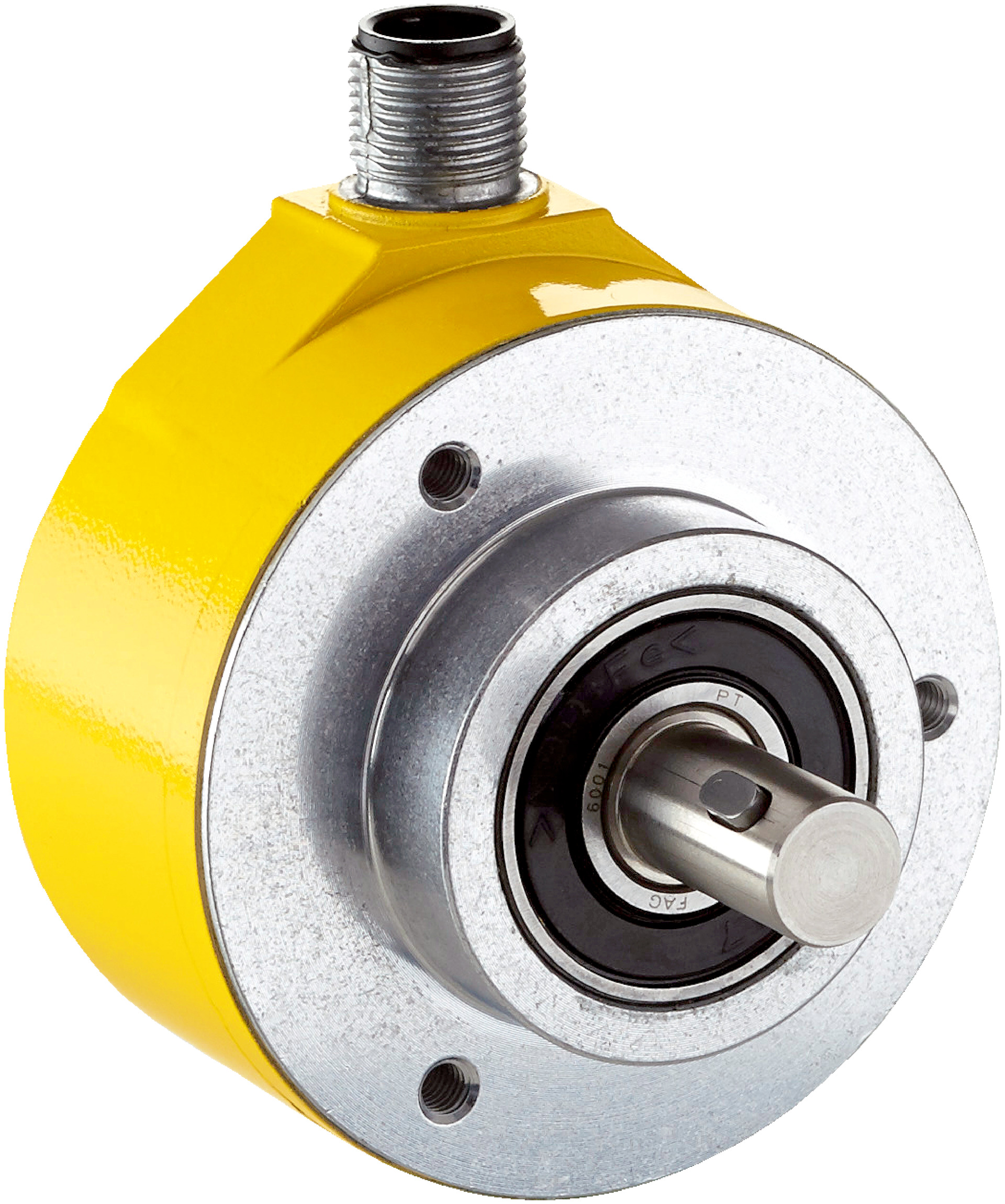

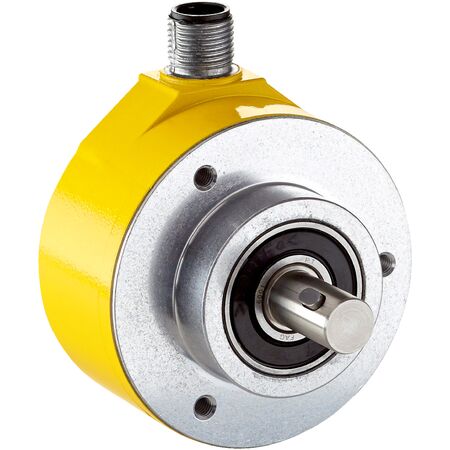

Safety Encoder AFS60S-SESC262144 | SIL 3 & PL e Certified | 262,144 Steps | IP65 Rated | by SICK
The AFS60S-SESC262144 safety encoder is designed for industrial automation and safety systems, featuring SIL 3 and PL e certifications for high reliability. With a remarkable resolution of 262,144 steps per revolution and an IP65 rated enclosure, it ensures optimal performance in harsh environments. Ideal for robotics and motion control, this encoder provides precise position and speed feedback, making it essential for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution (18 bit)
- Robust mechanical design with solid shaft and face mount flange
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Communication via SSI and Sin/Cos interfaces
- Low power consumption of 0.7 W
- High resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation and safety systems
- Robotics and motion control
- Machine safety monitoring
- Position and speed feedback in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product lifespan, reducing waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60S-SESC262144 safety-related encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
