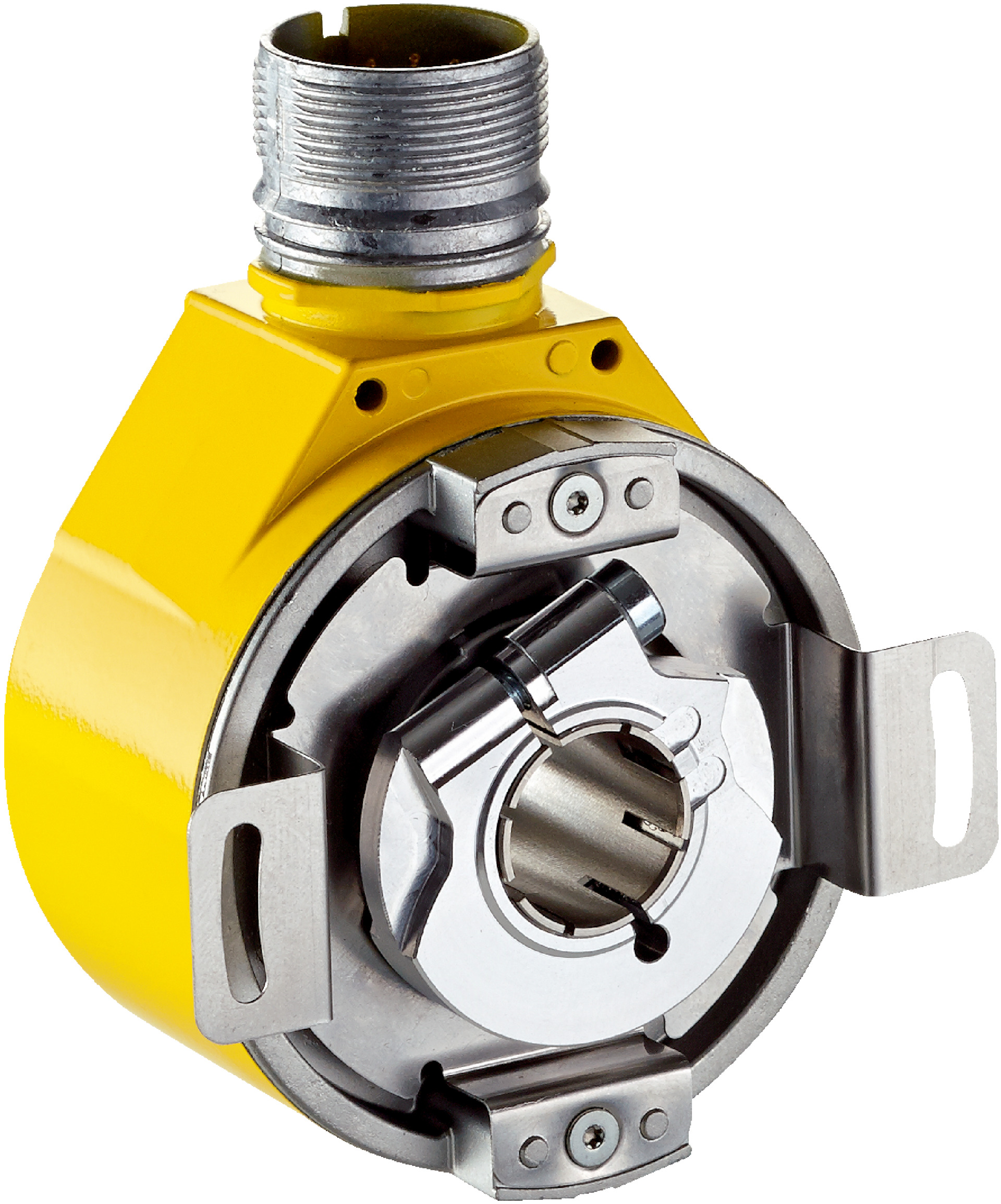

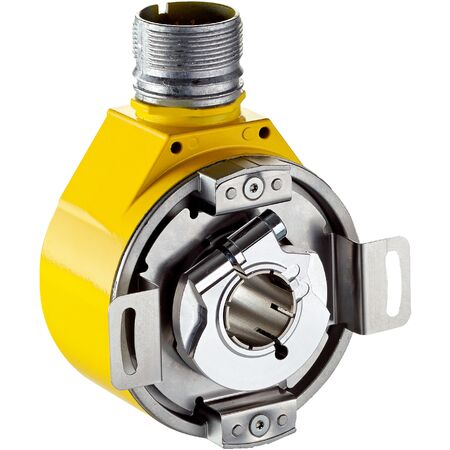

Safety Encoder AFS60S-TEKA262144 | SIL 3 & PL e Compliant | 262,144 Steps | IP65 Rated | by SICK
The AFS60S-TEKA262144 safety encoder is designed for industrial automation, featuring SIL 3 and PL e compliance for high safety integrity. With a remarkable resolution of 262,144 steps per revolution and an IP65 rated robust aluminum housing, it ensures reliable performance in hazardous environments. Ideal for motion control systems and robotics, this encoder offers low start-up torque and high resistance to shock and vibration, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFS60S-TEKA262144 | SIL 3 & PL e Compliant | 262,144 Steps | IP65 Rated | by SICK
Brand: SICK
SKU: 1148234
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, PL e encoder, SSI safety encoder, high resolution safety encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Through hollow shaft with 12 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Start up torque: ≤ 0.8 Ncm (+20 °C)
- Operating torque: ≤ 0.6 Ncm (+20 °C)
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +95 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 and performance level PL e compliant
- High resolution with 262,144 steps per revolution (18 bit)
- Through hollow shaft design with 12 mm diameter and feather key groove
- Robust aluminum die-cast housing with IP65 protection rating
- Communication via SSI interface with Sin/Cos output
- Operating temperature range from -30 °C to +95 °C
- Low start-up and operating torque for minimal mechanical load
- Reverse polarity and short-circuit protection included
- High resistance to shock (100 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-related motion control systems
- Robotics and machinery with safety performance requirements
- Position and speed feedback in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W reduces energy usage
- Robust construction ensures long operational life, supporting sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFS60S-TEKA262144 safety encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety compliance.
