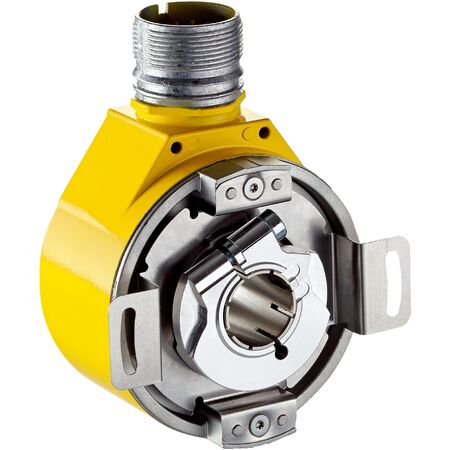

Safety Encoder AFS60S-TGKA01024 | SIL 3 & PL e Certified | High Resolution 1024 Steps | IP65 Protection | by SICK

BRAND: SICK
SKU: 1110500
$2,427.10 List price: $3,050.60
+ −
30 Days Return Electricians Unlock Trade Access
The AFS60S-TGKA01024 safety encoder is designed for industrial automation and safety systems, featuring SIL 3 and PL e certification for optimal safety. With a high resolution of 1,024 steps per revolution and robust IP65 protection, it ensures reliable position and speed feedback in hazardous environments, making it ideal for machine safety monitoring and robotics applications.

Product Name/Title: Safety Encoder AFS60S-TGKA01024 | SIL 3 & PL e Certified | High Resolution 1024 Steps | IP65 Protection | by SICK

Brand: SICK

SKU: 1110500

Alternatively Known As: Safety rotary encoder, SIL 3 encoder, PL e encoder, industrial safety encoder, SICK safety encoder

Technical Specifications
  • Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
  • Performance level: PL e (EN ISO 13849-1)
  • Category: 3 and 4 (EN ISO 13849-1)
  • PFH: 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
  • Mission time: 20 years (EN ISO 13849-1)
  • Safety-related accuracy: 0.09° category 3, 0.35° category 4
  • Max resolution: 1,024 steps per revolution (10 bit)
  • Error limits G: 0.05°
  • Repeatability standard deviation σr: 0.002°
  • Communication interface: SSI + Sin/Cos
  • Initialization time: 2 s
  • Position forming time: < 1 µs
  • Code type: Gray
  • Clock frequency: 100 kHz to ≤ 1 MHz
  • Supply voltage: 4.5 to 32 V
  • Power consumption: 0.7 W (without load)
  • Connection type: Male connector, M23, 12-pin, radial
  • Mechanical design: Through hollow shaft with 14 mm diameter
  • Shaft material: Stainless steel
  • Housing material: Aluminum die cast
  • Operating temperature range: –30 °C to +95 °C
  • Enclosure rating: IP65
  • Operating speed: ≤ 6,000 min⁻¹
  • Bearing lifetime: 3.6 x 10^9 revolutions
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.25 kg
Key Features
  • Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
  • Performance level PL e (EN ISO 13849-1)
  • High resolution with 1,024 steps per revolution (10 bit)
  • Through hollow shaft design with 14 mm diameter and feather key groove
  • Robust aluminum die-cast housing with IP65 protection
  • Operating temperature range from –30 °C to +95 °C
  • Short-circuit and reverse polarity protection
  • Communication interfaces SSI and Sin/Cos
  • Low start-up torque ≤ 0.8 Ncm and operating torque ≤ 0.6 Ncm
  • Bearing lifetime rated at 3.6 x 10^9 revolutions
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety encoder integration and electrical safety standards to ensure compliance and optimal performance.
Applications
  • Industrial automation and safety systems
  • Machine safety monitoring
  • Robotics and motion control
  • Position and speed feedback in hazardous environments
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Enhanced machine safety reduces risk of accidents and environmental hazards
  • Durable design minimizes waste and replacement frequency
  • Low power consumption of 0.7 W reduces energy usage
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK AFS60S-TGKA01024 safety encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety certification.
