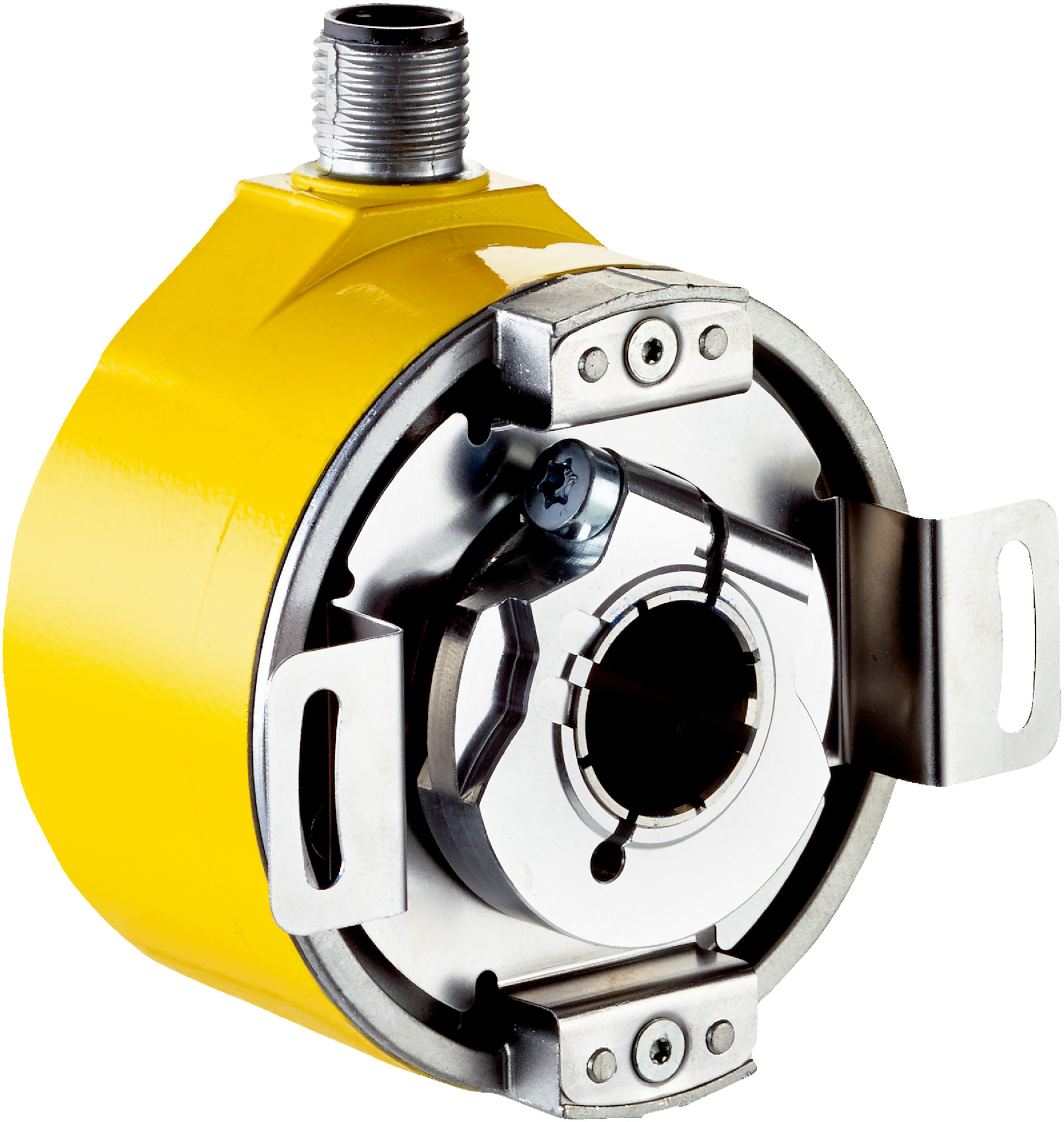

Safety Encoder AFS60S-TJSC262144 | SIL 3 & PL e Certified | 262,144 Steps | IP65 Protection | by SICK
The AFS60S-TJSC262144 safety encoder is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and robust IP65 protection, it ensures reliable position feedback for safety-critical machinery and robotics. Built to withstand harsh environments, this encoder is perfect for applications requiring precision and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder AFS60S-TJSC262144 | SIL 3 & PL e Certified | 262,144 Steps | IP65 Protection | by SICK
Brand: SICK
SKU: 1122652
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, PL e encoder, high resolution safety encoder, SSI safety encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- PFH: 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 s
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Through hollow shaft with 5/8” diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution (18 bit)
- Through hollow shaft design with 5/8” diameter and feather key groove
- Robust aluminum die cast housing with IP65 protection
- Communication via SSI interface with Sin/Cos output
- Operating temperature range from -30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Low start-up torque ≤ 0.8 Ncm and operating torque ≤ 0.6 Ncm
- High resistance to shocks (100 g) and vibration (18 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-critical machinery position feedback
- Robotics and motion control systems
- Automated manufacturing lines with safety compliance needs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W contributes to energy efficiency
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFS60S-TJSC262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and safety compliance.
