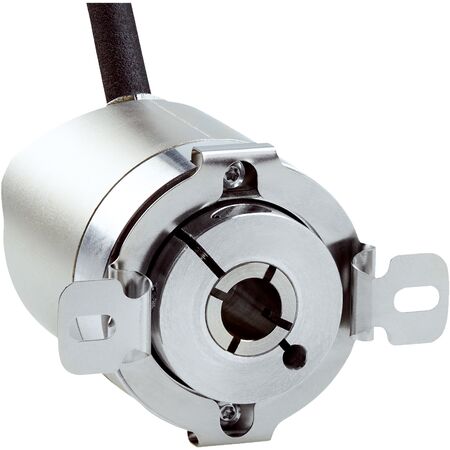

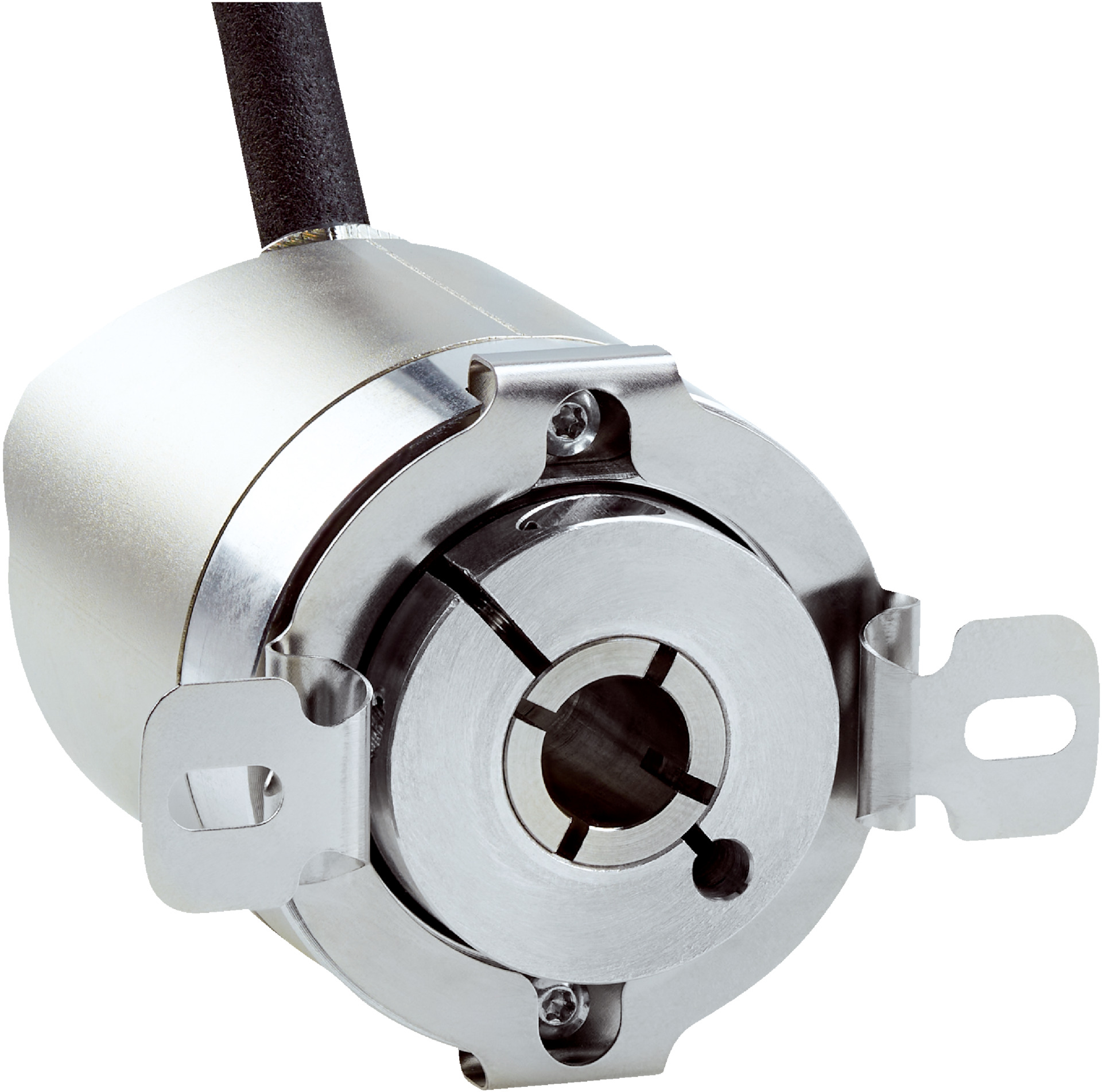

Safety Encoder AHS36A-BBAK016384 | 16,384 Steps/Rev | IP66 & IP67 Rated | by SICK
The Safety Encoder AHS36A-BBAK016384 offers high-resolution sensing with 16,384 steps per revolution, making it ideal for industrial automation and safety-critical applications. With a robust design featuring a stainless steel shaft and IP66/IP67 enclosure rating, it operates reliably in harsh environments, ensuring precise position sensing and control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Steps per revolution: 16,384 (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Blind hollow shaft
- Shaft diameter: 8 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Zinc
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP66 and IP67
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40 °C to +100 °C
- Low power consumption ≤ 1.5 W
- Reverse polarity protection included
- High reliability with MTTFD of 230 years according to EN ISO 13849-1
- Fast initialization time of 100 ms and position forming time of 125 µs
- Communication via SSI interface with Gray code
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems and electrical safety standards.
Applications
- Industrial automation for precise position sensing
- Safety-related machinery control systems
- Robotics and motion control applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AHS36A-BBAK016384 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
