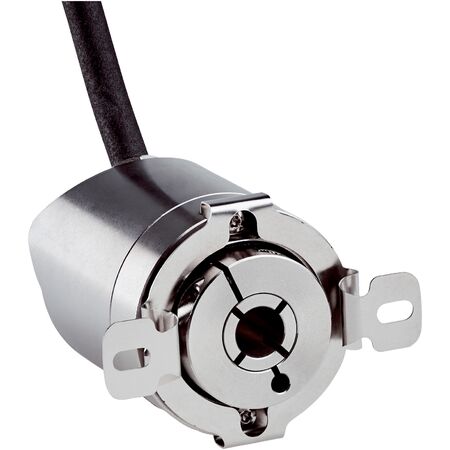

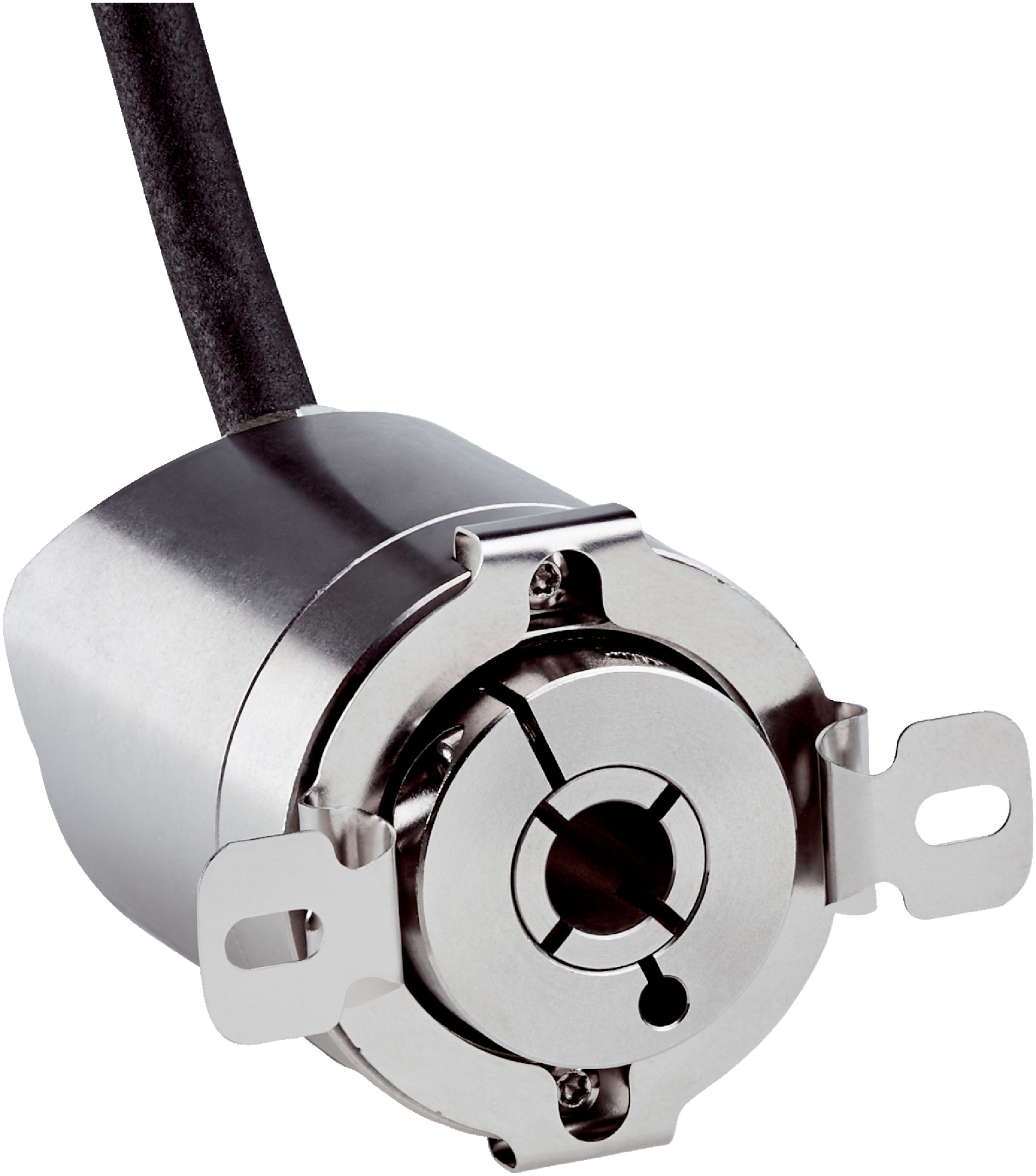

Safety Encoder AHS36I-BAAM016384 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The Safety Encoder AHS36I-BAAM016384 offers high-resolution feedback with 16,384 steps per revolution, making it ideal for industrial automation and safety-critical applications. Built with robust stainless steel housing and rated IP67/IP69K, it withstands harsh environments while ensuring precise position monitoring. With a wide operating temperature range from -40 °C to +100 °C, this encoder is perfect for robotics and machinery requiring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Number of steps per revolution: 16,384 (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Blind hollow shaft, 8 mm diameter
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Reverse polarity protection and low power consumption
- Supports SSI communication interface with Gray code
- High mechanical durability with 2.0 x 10^9 bearing revolutions lifetime
- Wide operating temperature range from -40 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and safety standards to ensure proper integration and compliance.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Robotics and machinery requiring precise position feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High resistance to environmental factors reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHS36I-BAAM016384 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
