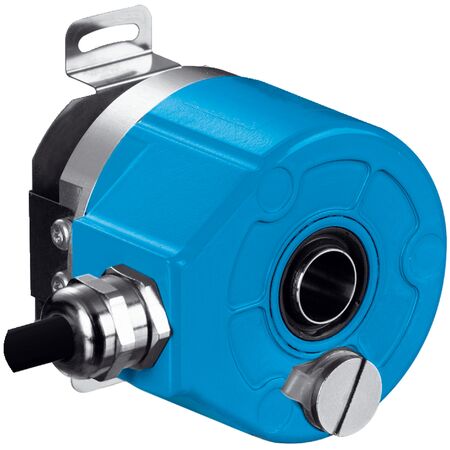

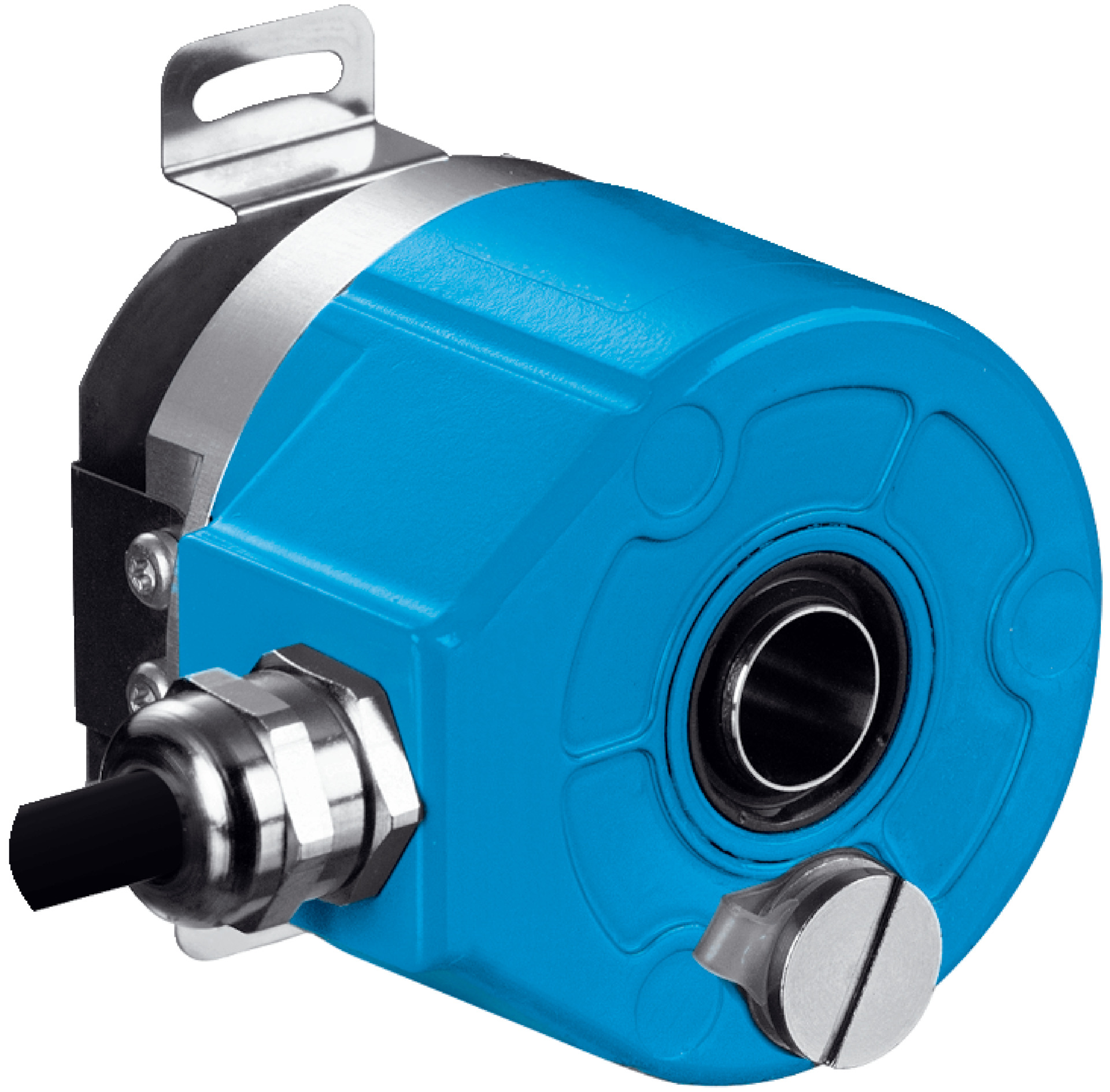

Safety Encoder ARS60 | 28,672 Steps | IP64 Enclosure | High Repeatability | by SICK
The Safety Encoder ARS60 is engineered for precision in industrial automation, featuring a high resolution of 28,672 steps per revolution and an IP64 enclosure for robust protection. With a low operating torque of 1.6 Ncm and a wide temperature range from -20°C to +85°C, it's perfect for safety-related motion control systems and robotics requiring accurate feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder ARS60 | 28,672 Steps | IP64 Enclosure | High Repeatability | by SICK
Brand: SICK
SKU: 1034414
Alternatively Known As: Safety Encoder ARS60, High-Resolution Rotary Encoder, SSI Encoder 28672 Steps
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 28,672
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: 11-wire cable, radial, 1.5 m length
- Mechanical design: Through hollow shaft with front clamp
- Start up torque: Typically 2.2 Ncm
- Operating torque: Typically 1.6 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (cable)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 28,672 steps per revolution
- Through hollow shaft mechanical design with 12 mm shaft diameter
- Robust aluminum die cast housing with IP64 enclosure rating
- Low operating torque of typically 1.6 Ncm
- High repeatability with standard deviation of 0.005°
- SSI communication interface with Gray code type
- Wide operating temperature range from -20°C to +85°C
- Certified with multiple conformity declarations including EU, UK, ACMA, cULus, and China-RoHS
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical wiring standards.
Applications
- Industrial automation for precise position measurement
- Safety-related motion control systems
- Robotics and machinery requiring high accuracy feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical operating current of 60 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-ADK28672 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
