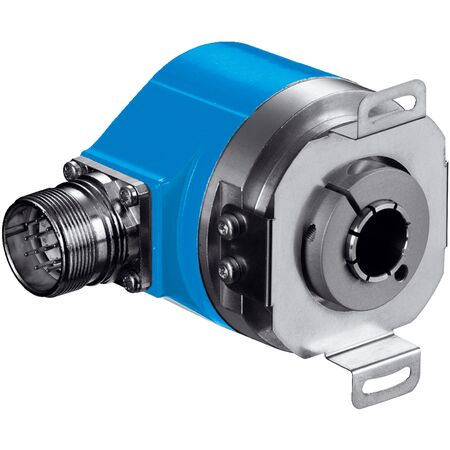

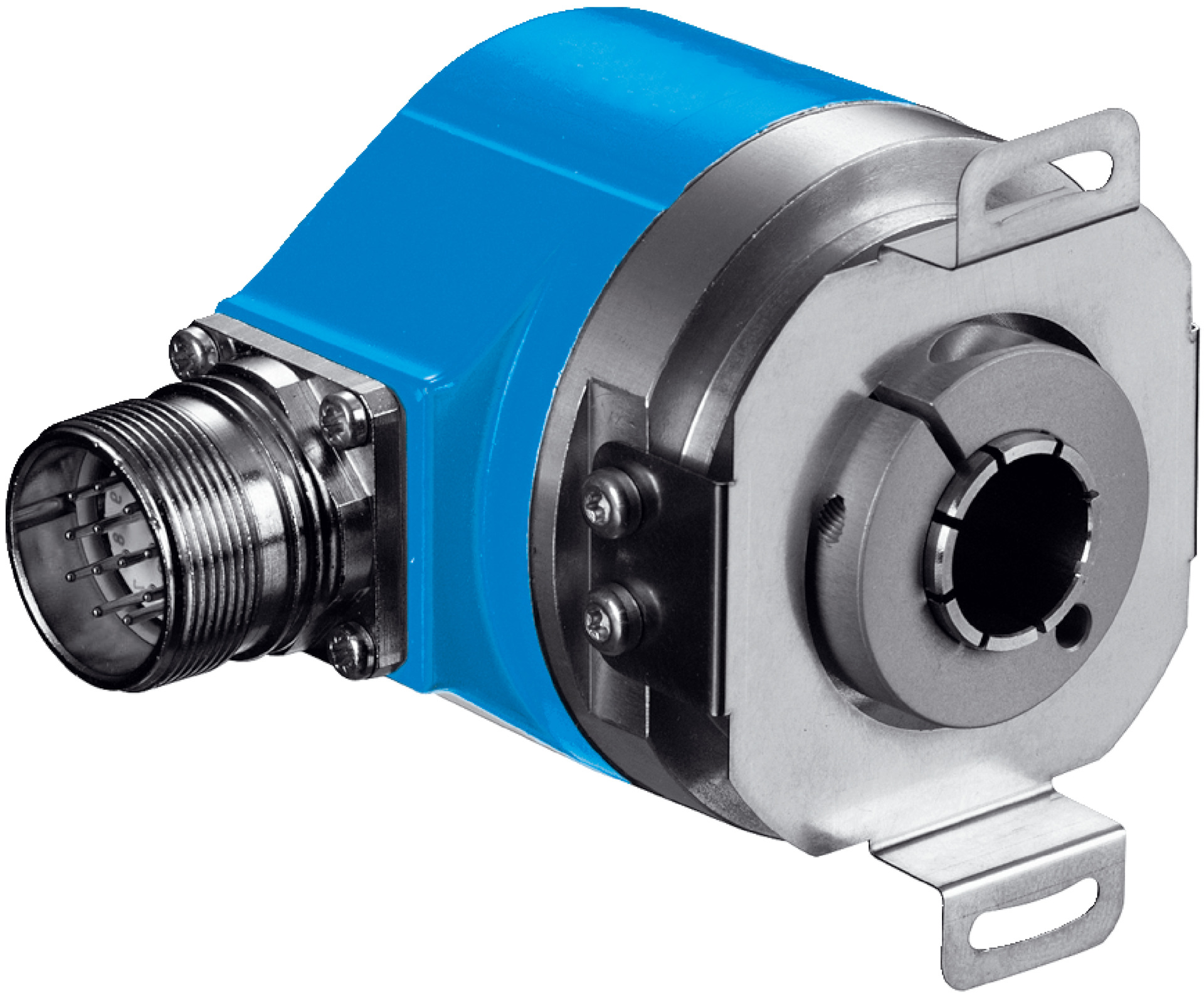

Safety Encoder ARS60 | 30,000 Steps Resolution | IP65 Rated | Blind Hollow Shaft | by SICK
The Safety Encoder ARS60 offers high-resolution feedback with 30,000 steps per revolution, making it ideal for industrial automation and safety-critical applications. With a robust aluminum die-cast housing and an IP65 rating, it ensures durability and reliability in harsh environments. Designed for precise position measurement, this encoder is perfect for robotics and motion control systems, providing accurate feedback for enhanced operational safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder ARS60 | 30,000 Steps Resolution | IP65 Rated | Blind Hollow Shaft | by SICK
Brand: SICK
SKU: 1035433
Alternatively Known As: Safety Encoder ARS60, High-Resolution Rotary Encoder, SSI Encoder 30000 Steps
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 30,000
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: typically 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Blind hollow shaft, 15 mm diameter
- Start-up torque: typically 0.6 Ncm
- Operating torque: typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Enclosure rating: IP65 (IEC 60529)
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 30,000 steps per revolution
- Robust aluminum die cast housing with IP65 rating
- Blind hollow shaft with front clamp for secure mounting
- Low start-up torque of typically 0.6 Ncm
- Operating temperature range from -20°C to +85°C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Long bearing lifetime of 3.6 x 10^9 revolutions
- Communication via SSI interface with Gray code
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related motion control systems
- Robotics and machinery requiring high accuracy feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with typical operating current of 60 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-AAA30000 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
