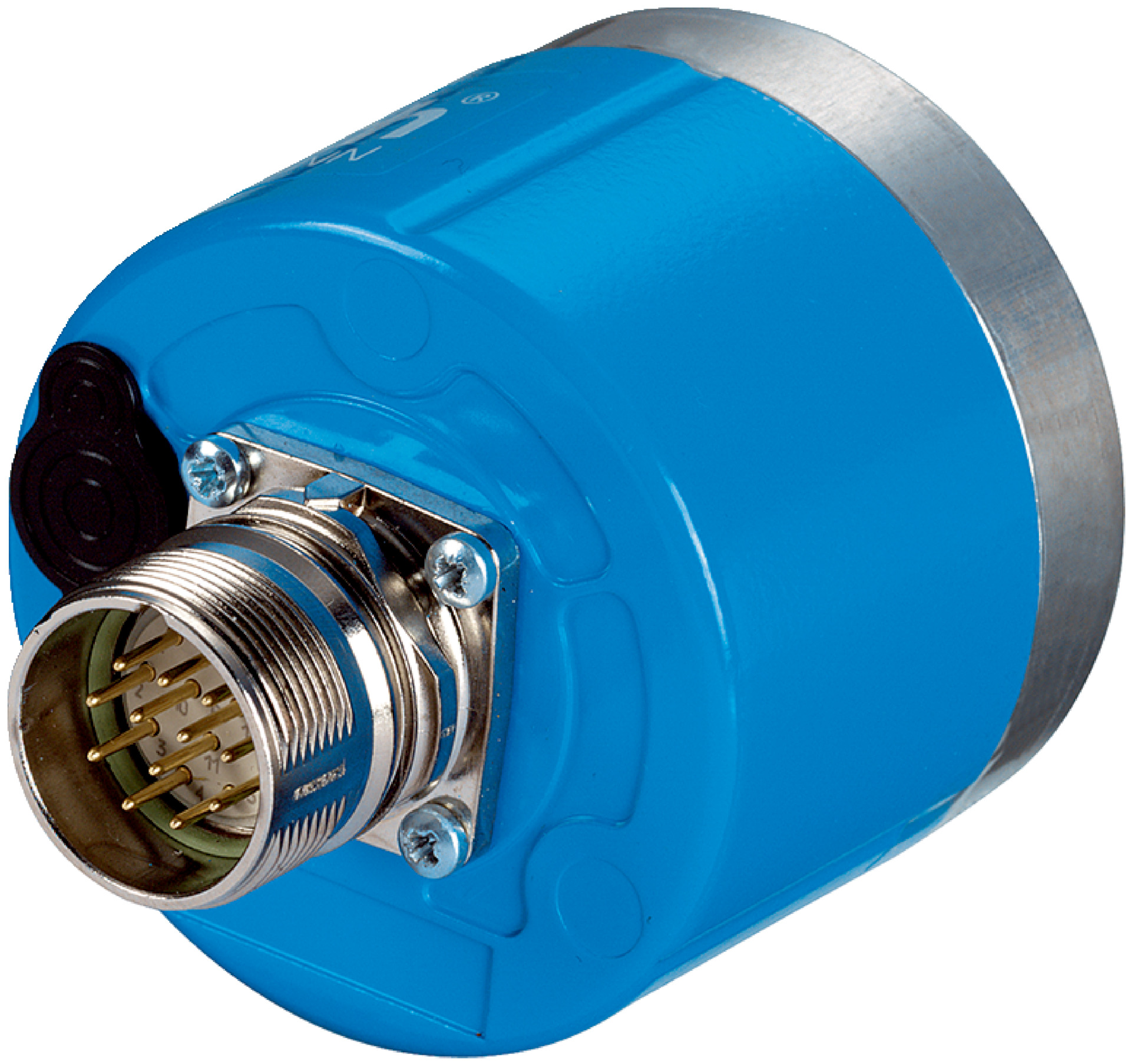

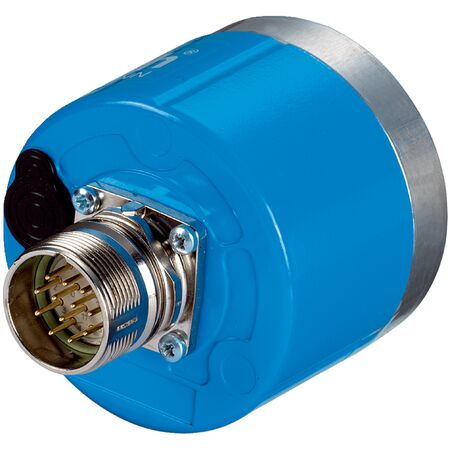

Safety Encoder ARS60 | 32,400 Steps per Revolution | MTTFD 300 Years | IP65 Rated | by SICK
The Safety Encoder ARS60 offers high precision with 32,400 steps per revolution, making it ideal for industrial automation and safety-critical applications. With a robust aluminum die cast housing and an IP65 rating, it ensures durability and reliability in harsh environments. Designed for professionals, this encoder features a wide operating temperature range and low operating torque for efficient performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder ARS60 | 32,400 Steps per Revolution | MTTFD 300 Years | IP65 Rated | by SICK
Brand: SICK
SKU: 1035837
Alternatively Known As: Safety Encoder ARS60, High-Resolution Rotary Encoder, SICK ARS60 Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 32,400
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, axial
- Mechanical design: Blind hollow shaft, 15 mm diameter
- Housing material: Aluminum die cast
- Start-up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (male connector)
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,400 steps per revolution
- Safety-related parameters with MTTFD of 300 years according to EN ISO 13849-1
- Robust aluminum die cast housing with IP65 rating
- Blind hollow shaft with 15 mm diameter and front clamp
- Low operating and start-up torque for efficient operation
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks (50 g) and vibration (20 g)
- SSI communication interface with Gray code
- Fast initialization time of 80 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and industrial automation systems to ensure compliance with safety standards.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Precision measurement in manufacturing
- Robotics and machinery requiring high accuracy
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-AAB32400 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
