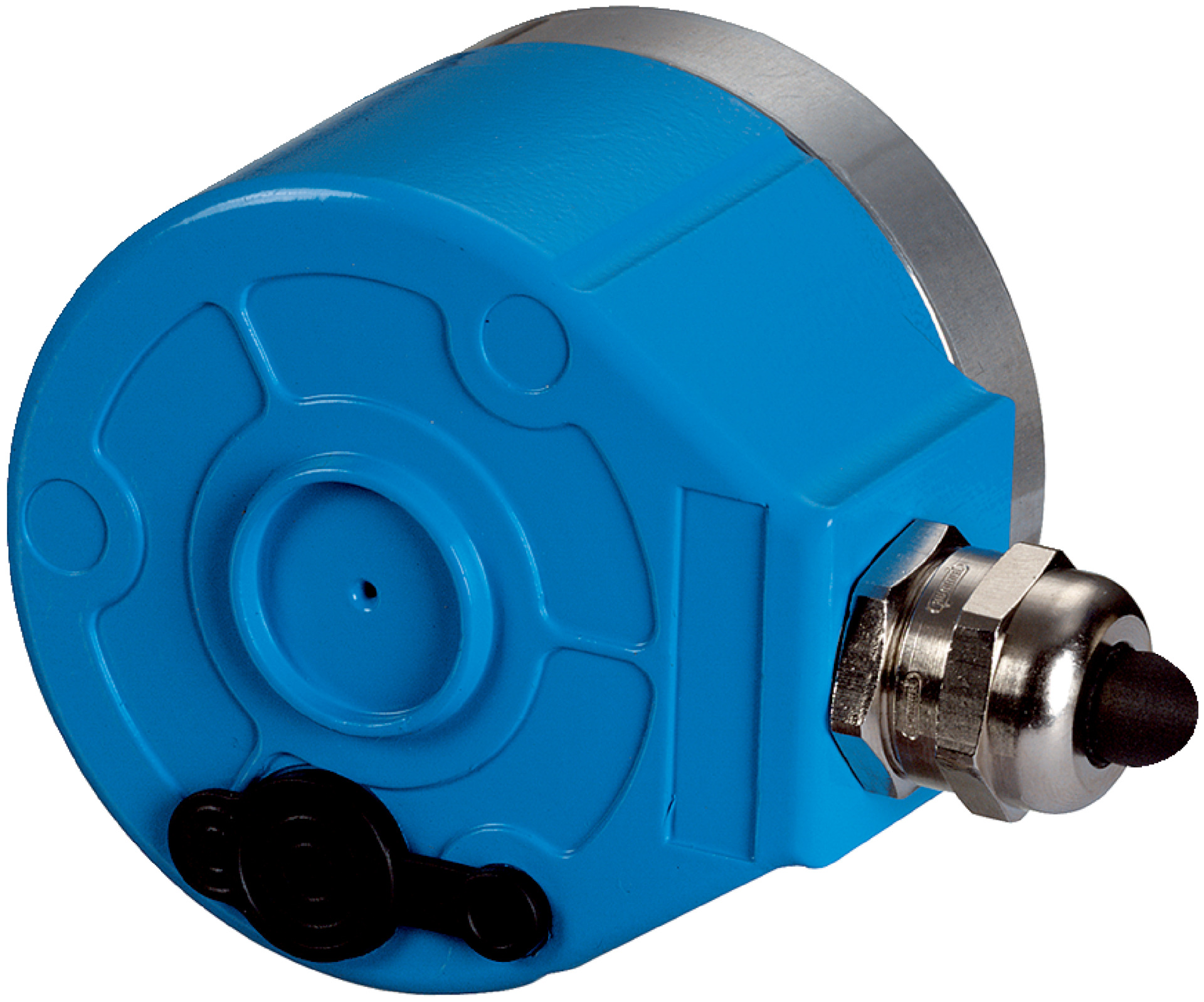

Safety Encoder ARS60 | 32,767 Steps per Revolution | MTTFD 300 Years | IP66 Rated | by SICK
The Safety Encoder ARS60 is engineered for precision in industrial automation, featuring an impressive 32,767 steps per revolution and a robust aluminum die cast housing with an IP66 rating. With a mean time to failure (MTTFD) of 300 years, it’s perfect for safety-critical applications in robotics and machine tool positioning, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder ARS60 | 32,767 Steps per Revolution | MTTFD 300 Years | IP66 Rated | by SICK
Brand: SICK
SKU: 1032596
Alternatively Known As: Safety Encoder ARS60, High Resolution Encoder, Industrial Safety Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 32,767
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typical 60 mA
- Connection type: 11-wire cable, 3 m radial
- Mechanical design: Blind hollow shaft with 15 mm diameter
- Housing material: Aluminum die cast
- Start-up torque: Typical 0.6 Ncm
- Operating torque: Typical 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP66
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,767 steps per revolution
- Safety-related parameters with MTTFD of 300 years according to EN ISO 13849-1
- Robust aluminum die cast housing with IP66 rating
- Blind hollow shaft design with 15 mm shaft diameter
- Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
- High resistance to shocks (50 g) and vibration (20 g)
- SSI communication interface with Gray code
- Operating temperature range from -20°C to +85°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoders and industrial automation systems to ensure compliance with safety standards.
Applications
- Industrial automation and safety systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low operating current (60 mA)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-AAL32767 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
