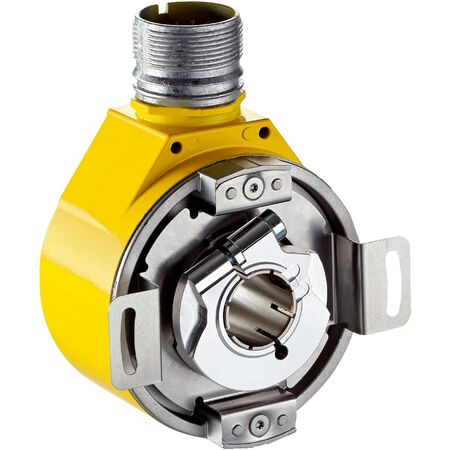

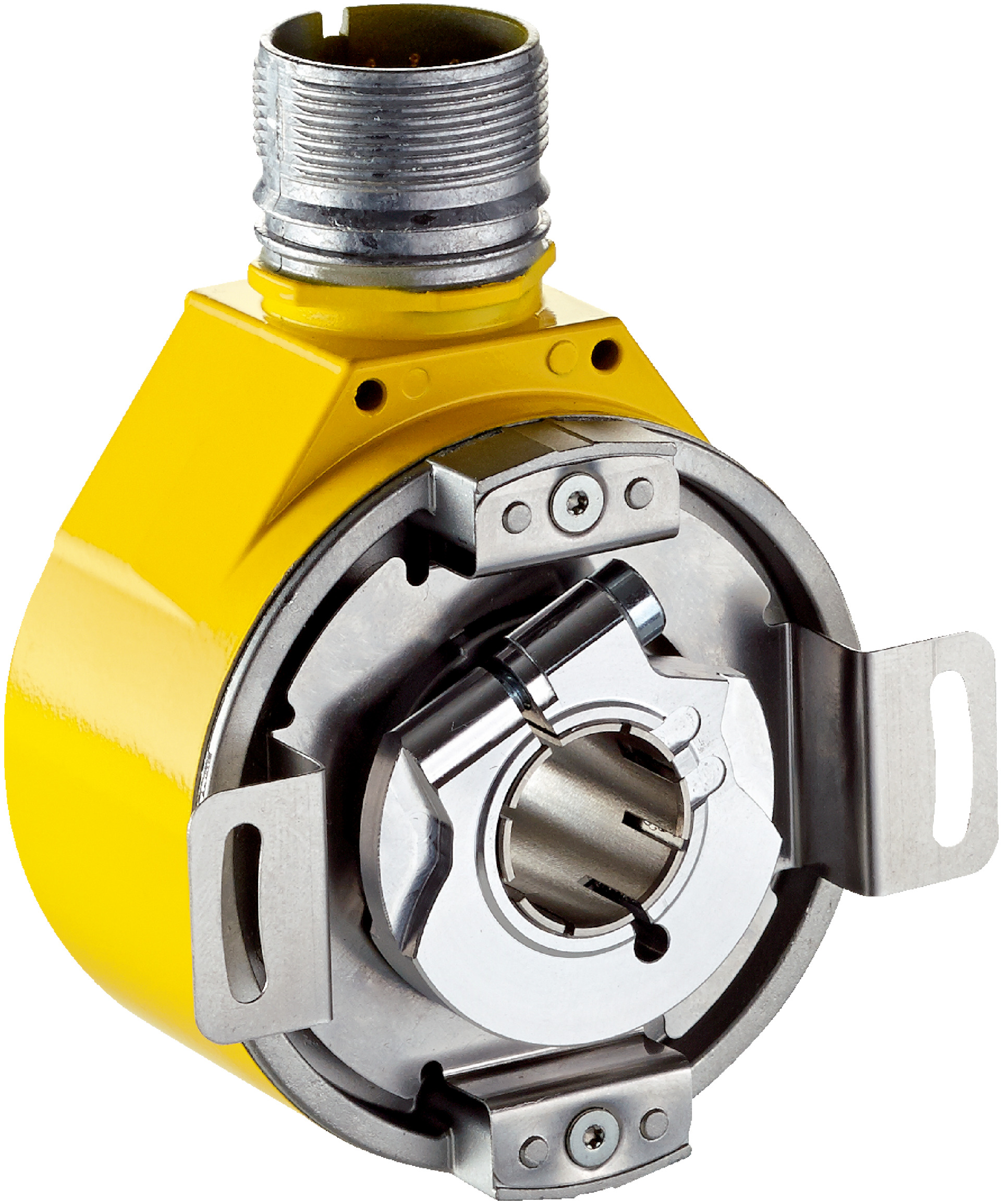

Safety Encoder DFS60S-BHOA01024 | SIL 2 & PL d Compliance | IP65 Rated | by SICK
The Safety Encoder DFS60S-BHOA01024 is designed for industrial automation, providing precise position and speed feedback with SIL 2 and PL d compliance. With a robust design and an operating temperature range of -30 °C to +95 °C, it ensures reliable performance in safety-related motion control systems. Ideal for robotics and conveyor systems, this encoder features a high accuracy measuring step and an incremental communication interface for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder DFS60S-BHOA01024 | SIL 2 & PL d Compliance | IP65 Rated | by SICK
Brand: SICK
SKU: 1070431
Alternatively Known As: Safety rotary encoder, SIL 2 encoder, incremental safety encoder, DFS60S encoder
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Performance level: PL d (EN ISO 13849), Category 3
- PFH: 1.7 x 10^-8
- Mission time: 20 years
- Measuring step: 0.3″ with interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Communication interface: Incremental Sin/Cos, 6-channel
- Initialization time: 50 ms
- Output frequency: ≤153.6 kHz
- Power supply: 4.5 to 32 V
- Connection: Male M23, 12-pin radial connector
- Shaft diameter: 15 mm with feather key
- Operating speed: ≤6,000 min⁻¹
- Moment of inertia: 56 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature: -30 °C to +95 °C
- Enclosure rating: IP65
- Protection class: III (DIN EN 61140)
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Performance level PL d (EN ISO 13849), Category 3
- High accuracy with safety-related measuring step of 0.09° and accuracy ±0.09°
- Incremental communication interface with Sin/Cos signals
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- Operating temperature range from -30 °C to +95 °C
- Protection class III with IP65 enclosure rating
- Short-circuit and reverse polarity protection
- Low power consumption ≤ 0.7 W
- High resistance to shocks (100 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and compliance with relevant safety standards.
Applications
- Industrial automation for precise position and speed feedback
- Safety-related motion control systems
- Machine safety monitoring and control
- Robotics and conveyor systems requiring SIL 2 / PL d safety compliance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60S-BHOA01024 Safety Encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety compliance.
