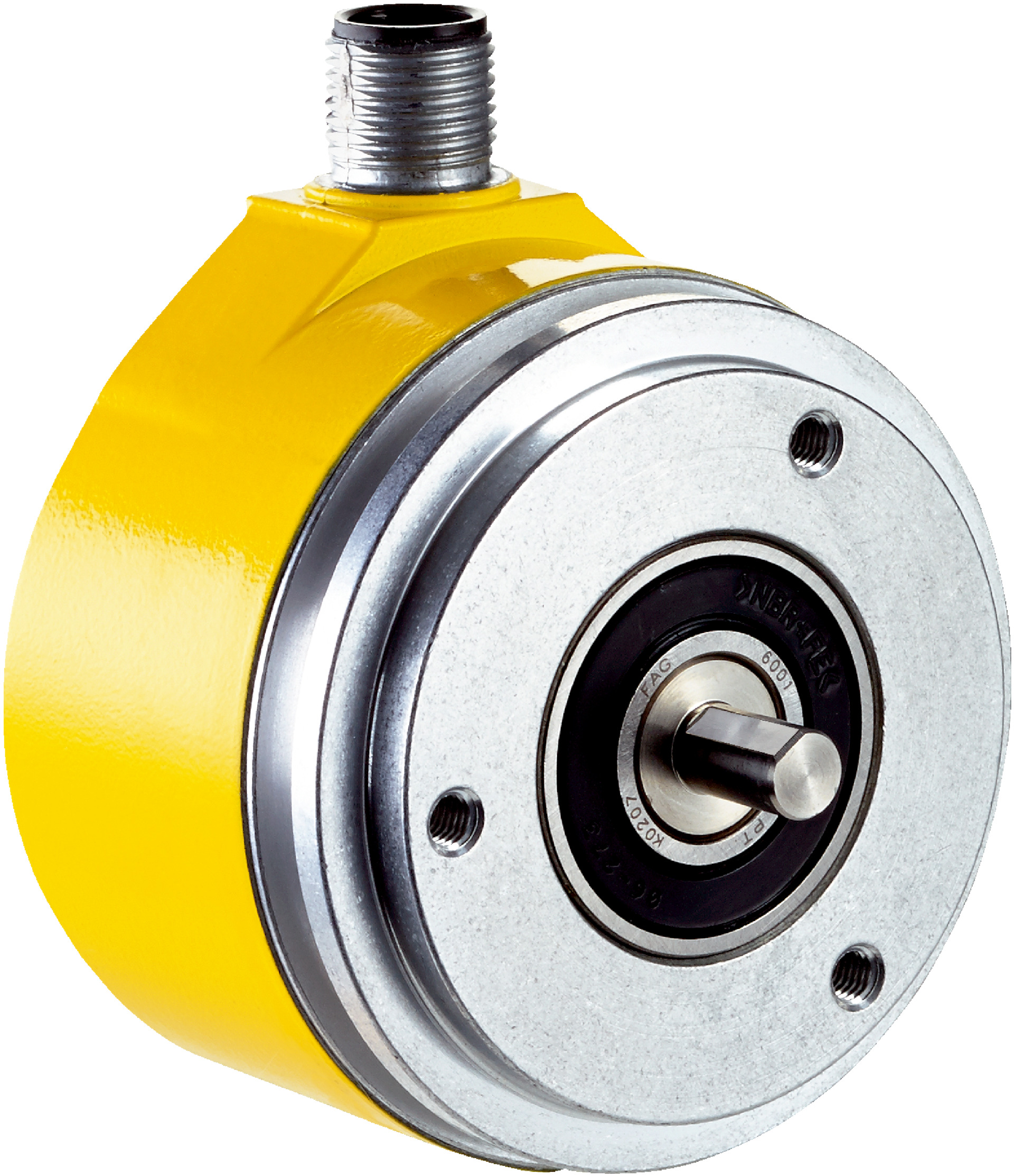

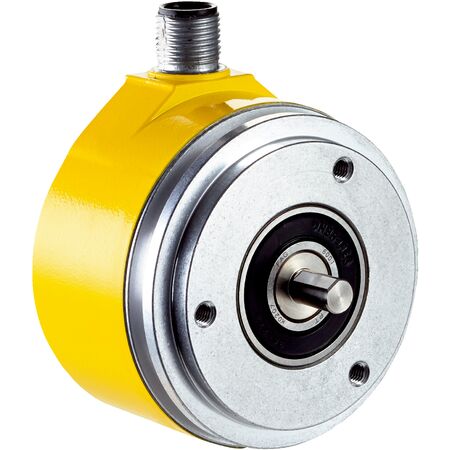

Safety Encoder DFS60S-S1OC01024 | SIL 2 & PL d Rated | IP65 Enclosure | by SICK
The Safety Encoder DFS60S-S1OC01024 is designed for industrial automation, featuring SIL 2 and PL d safety ratings for reliable performance in safety-critical applications. With a high accuracy measuring step of 0.09° and robust IP65 enclosure, it ensures precise position and speed feedback, making it ideal for machine safety monitoring and control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder DFS60S-S1OC01024 | SIL 2 & PL d Rated | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1069517
Alternatively Known As: Safety rotary encoder, Incremental safety encoder, SIL 2 encoder, PL d encoder, Industrial position encoder
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Performance level: PL d (EN ISO 13849), Category 3
- PFH: 1.7 x 10^-8 per hour
- Mission time: 20 years
- Safety-related measuring step: 0.09°, Quadrature analysis
- Safety-related accuracy: ± 0.09°
- Sine/cosine periods per revolution: 1,024
- Measuring step: 0.3″ with 12 bit interpolation
- Integral non-linearity: ± 45″ typical
- Differential non-linearity: ± 7″
- Communication interface: Incremental Sin/Cos, 6-channel
- Initialization time: 50 ms
- Output frequency: ≤ 153.6 kHz
- Power consumption: ≤ 0.7 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 4.5 to 32 V
- Reference signal: 1, 90° electronically gated
- Reverse polarity protection and short-circuit protection included
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: ≤ 0.5 Ncm at 20 °C
- Operating torque: ≤ 0.3 Ncm at 20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia: 8 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant to EN 61000-6-2, EN 61000-6-3, IEC 61326-3-1
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature: -30 °C to +95 °C
- Storage temperature: -30 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Performance level PL d (EN ISO 13849), Category 3
- High accuracy with safety-related measuring step of 0.09°
- Incremental communication interface with Sin/Cos signals
- Robust mechanical design with solid shaft and servo flange
- Operating temperature range from -30 °C to +95 °C
- Protection class III with IP65 enclosure rating
- Reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical safety standards.
Applications
- Industrial automation for precise position and speed feedback
- Safety-related motion control systems
- Machine safety monitoring and control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.7 W reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60S-S1OC01024 Safety Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
