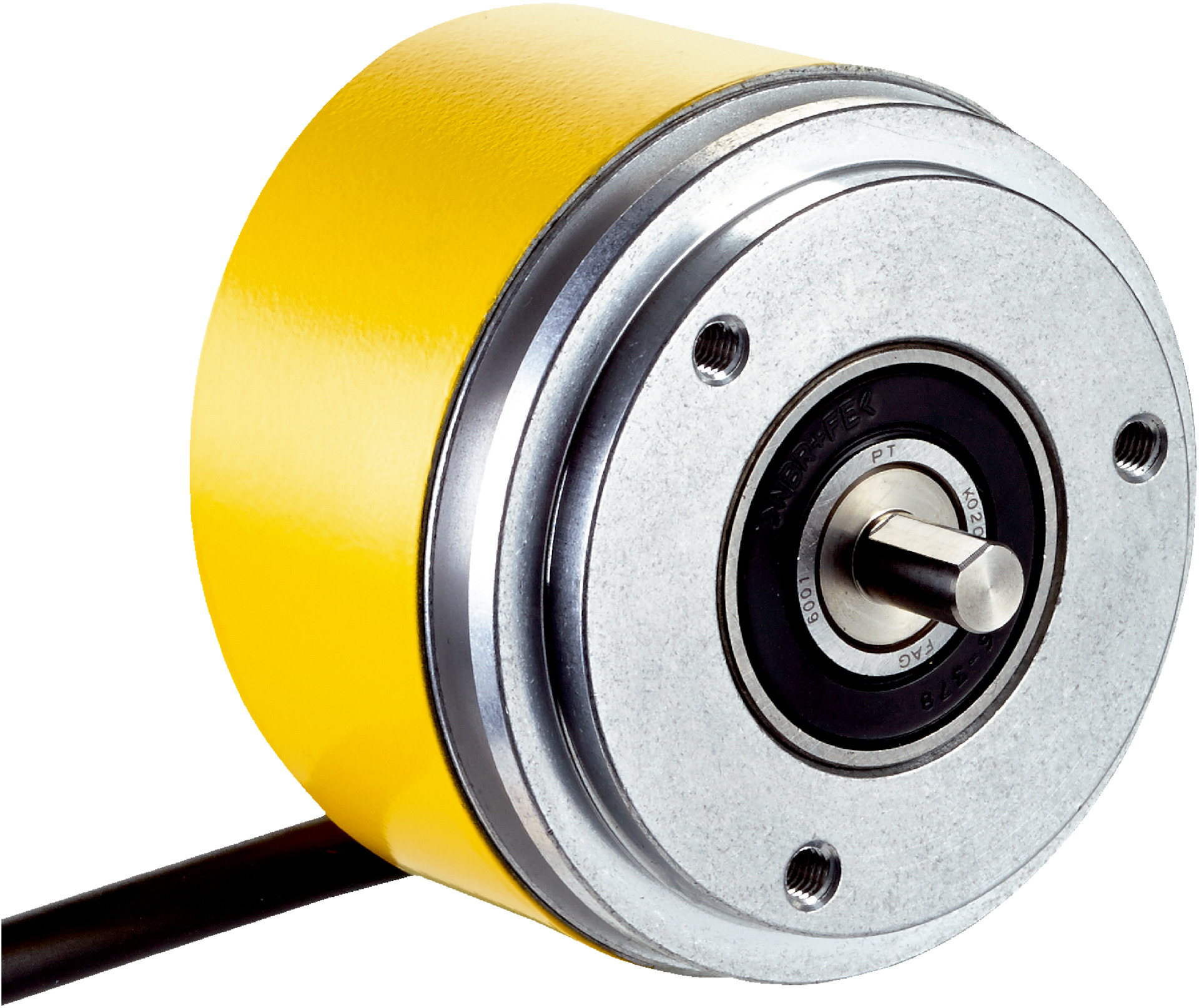

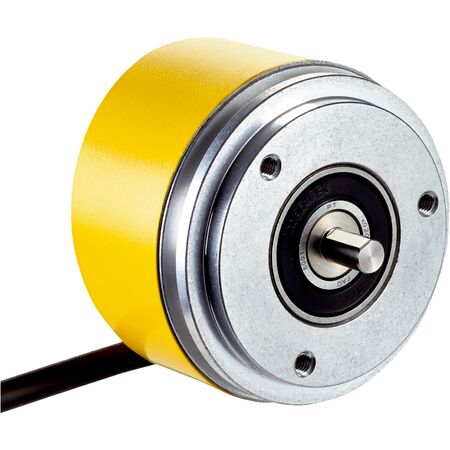

Safety Encoder DFS60S-S1ON01024 | SIL 2 & PL d Certified | IP65 Rated | by SICK
The Safety Encoder DFS60S-S1ON01024 is designed for industrial automation, providing precise position and speed feedback with SIL 2 and PL d certification. With a robust IP65 rated enclosure and high accuracy measuring step of 0.09°, it ensures reliable performance in safety-related motion control systems, making it ideal for robotics and machine safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder DFS60S-S1ON01024 | SIL 2 & PL d Certified | IP65 Rated | by SICK
Brand: SICK
SKU: 1140516
Alternatively Known As: Safety rotary encoder, SIL 2 encoder, incremental safety encoder, industrial safety encoder
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Performance level: PL d (EN ISO 13849), Category 3
- PFH: 1.7 x 10^-8
- Mission time: 20 years
- Measuring step: 0.3″ with interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Communication interface: Incremental Sin/Cos, 6-channel
- Initialization time: 50 ms
- Output frequency: ≤153.6 kHz
- Power supply: 4.5 to 32 V
- Connection: 8-wire cable, 10 m
- Shaft diameter: 6 mm with flat
- Operating torque: ≤0.3 Ncm
- Operating speed: ≤9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- EMC compliant to EN 61000-6-2, EN 61000-6-3, IEC 61326-3-1
- Enclosure rating: IP65
- Operating temperature: –30 °C to +85 °C
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Performance level PL d (EN ISO 13849), Category 3
- High accuracy with safety-related measuring step of 0.09° and accuracy ±0.09°
- Incremental communication interface with Sin/Cos signals
- Robust mechanical design with solid shaft and servo flange
- Operating temperature range from –30 °C to +85 °C
- Protection class III with reverse polarity and short-circuit protection
- IP65 rated enclosure for dust and water resistance
- Low power consumption ≤ 0.7 W without load
- High operating speed up to 9,000 min⁻¹
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical safety standards.
Applications
- Industrial automation for precise position and speed feedback
- Safety-related motion control systems
- Machine safety monitoring and control
- Robotics and servo motor feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product lifecycle, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK DFS60S-S1ON01024 Safety Encoder is available for immediate purchase, ideal for industrial safety and automation applications.
