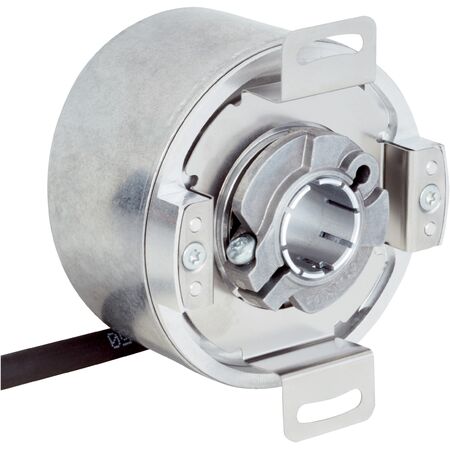

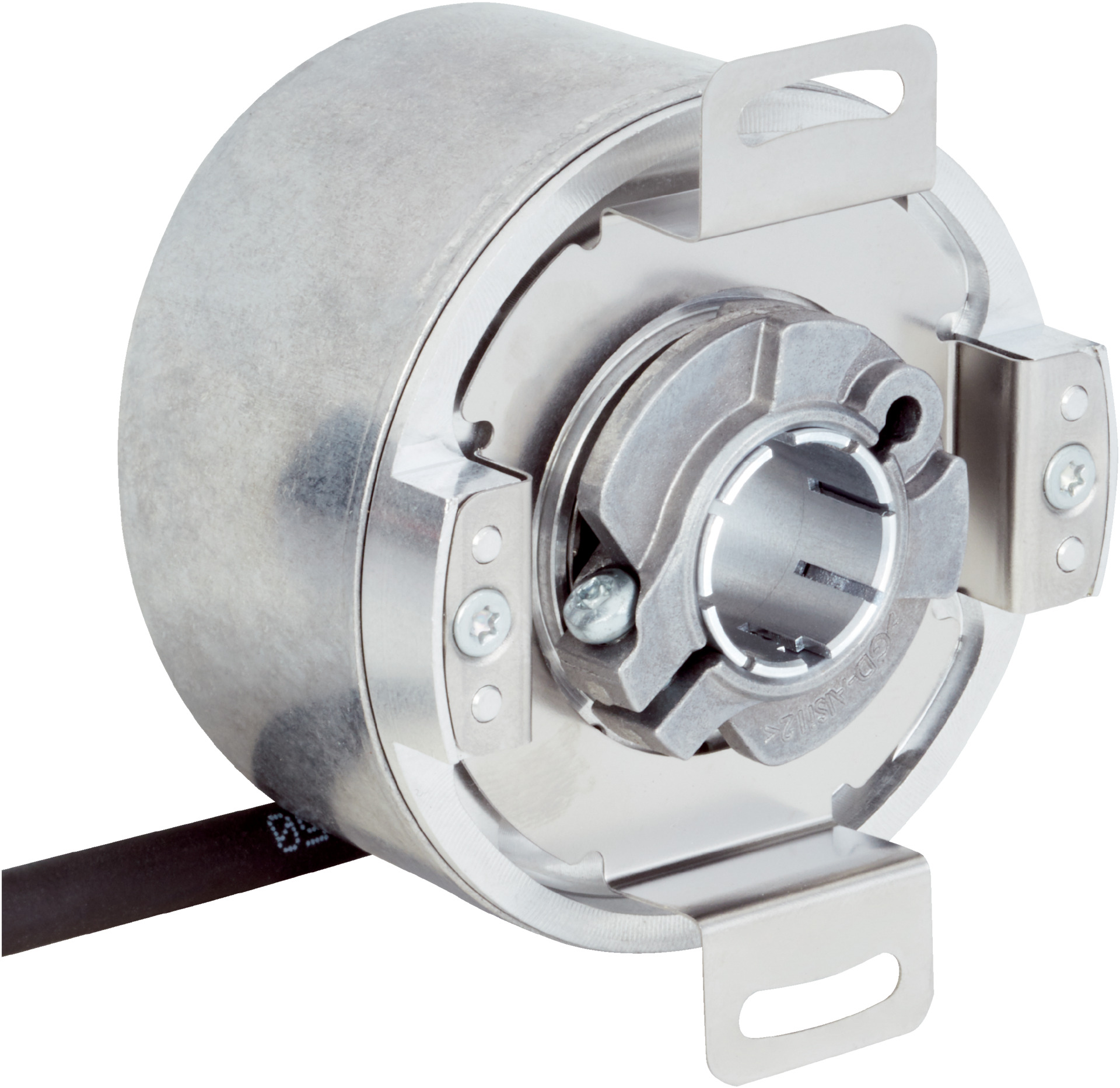

Safety Encoder SFS60S-HRKB0K02 | SIL 2 Certified | IP65 Rated | High Accuracy | by SICK
The Safety Encoder SFS60S-HRKB0K02 is designed for industrial automation, offering SIL 2 certification and high system accuracy of ±52″. With an operating speed of up to 6000 min⁻¹ and robust IP65-rated aluminum housing, it ensures reliable position measurement in safety-critical applications. Ideal for robotics and motion control, this encoder is built to withstand harsh environments while maintaining energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level PL d
- PFH: 1.7 x 10⁻⁸ per hour
- Measuring step: 0.3″ with interpolation
- Total steps: 32,768
- Sine/cosine periods per revolution: 1,024
- Operating speed: ≤ 6,000 min⁻¹
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: < 80 mA (no load)
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Connection: 8-wire cable, 1.5 m length
- Enclosure rating: IP65 with mating connector
- Operating temperature: -30 °C to +85 °C
- Storage temperature: -40 °C to +90 °C
- Material: Aluminum die cast housing, stainless steel shaft
- Shaft diameter: 14 mm
- Moment of inertia: 56 gcm²
- Operating torque: 0.6 Ncm at +20 °C
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High system accuracy of ±52″ with safety-related accuracy ±0.09°
- Operating speed up to 6000 min⁻¹ with reliable absolute position output
- Robust aluminum die-cast housing with IP65 rating
- Blind hollow shaft with 14 mm diameter made of stainless steel
- Communication via HIPERFACE® interface
- Operating temperature range from -30 °C to +85 °C
- Resistance to shocks up to 100 g and vibrations 20 g (10 Hz to 2000 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation requiring precise and safe position measurement
- Safety-related machinery control systems
- Robotics and motion control applications
- High-speed rotary applications up to 6000 min⁻¹
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low current consumption (<80 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK SFS60S-HRKB0K02 safety-related encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
