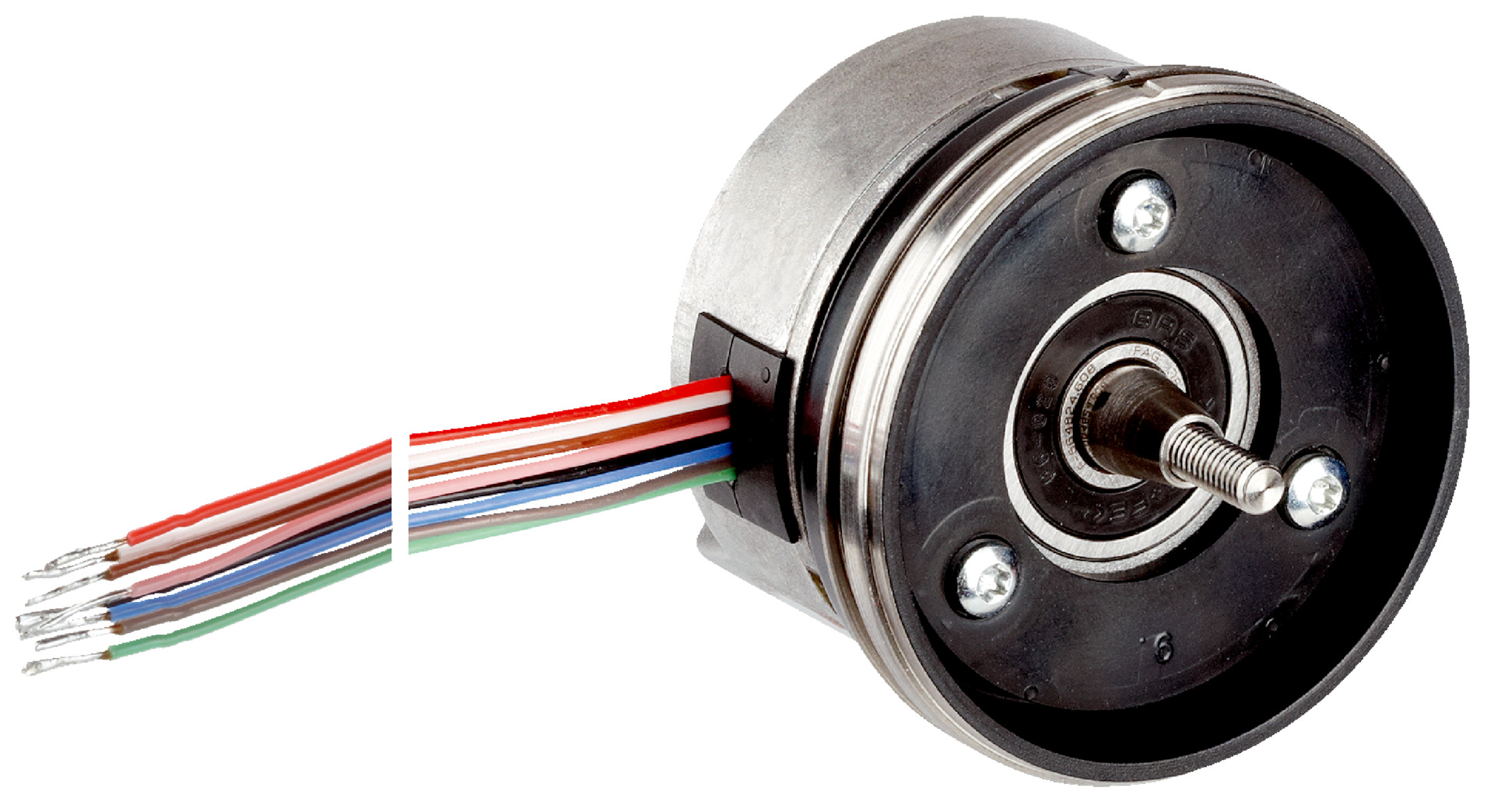

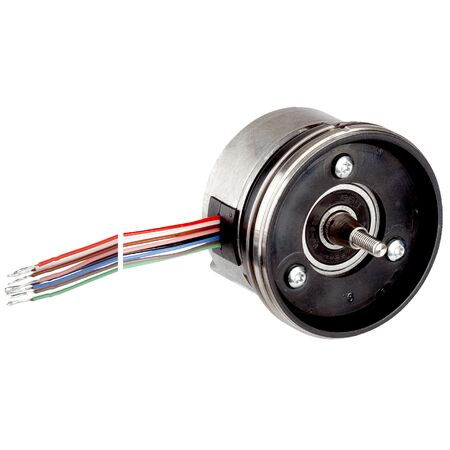

Safety Encoder SRS50S-HGV0-K21 | SIL 2 & PL d Rated | 1,024 Sine/Cosine Periods | by SICK
The SRS50S-HGV0-K21 safety encoder delivers precise position feedback with SIL 2 and PL d safety ratings, making it ideal for industrial automation and safety-critical applications. With a high resolution of 1,024 sine/cosine periods per revolution and a robust design, it ensures reliable performance in demanding environments, operating within a wide temperature range of -30 °C to +115 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoder SRS50S-HGV0-K21 | SIL 2 & PL d Rated | 1,024 Sine/Cosine Periods | by SICK
Brand: SICK
SKU: 1051799
Alternatively Known As: Safety Encoder, HIPERFACE Encoder, SIL 2 Encoder, Absolute Encoder, Industrial Position Encoder
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Category: 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFH: 1.0 x 10⁻⁸ per hour
- Mission time: 20 years
- Sine/cosine periods per revolution: 1,024
- Total steps: 32,768
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed (absolute position): ≤ 6,000 min⁻¹
- Memory area: 128 Byte
- System accuracy: ±52″
- Code type: Binary absolute value
- Communication interface: HIPERFACE
- Connection: 8-wire cable, 2 m radial
- Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft: Tapered
- Flange: Resolver support
- Weight: ≤ 0.2 kg
- Moment of inertia: 10 gcm²
- Max operating speed: ≤ 12,000 min⁻¹
- Angular acceleration: ≤ 200,000 rad/s²
- Operating torque: 0.2 Ncm
- Start-up torque: +0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.75 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Ball bearing life: 3.6 x 10⁹ revolutions
- Operating temperature: -30 °C to +115 °C
- Storage temperature: -40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40 with mating plug
- Operating altitude: up to 2,000 m
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL2 (IEC 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High resolution with 1,024 sine/cosine periods per revolution and 32,768 total steps
- Binary absolute value code with HIPERFACE communication interface
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- Robust mechanical design with tapered shaft and resolver support flange
- Wide operating temperature range from -30 °C to +115 °C
- IP40 enclosure rating with mating plug inserted
- Low operating torque of 0.2 Ncm and start-up torque of +0.4 Ncm
- Long ball bearing life of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation requiring precise and safe position feedback
- Safety-critical machinery with SIL 2 and PL d safety requirements
- Servo motor feedback systems
- Robotics and motion control applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Designed for long operational life reducing waste and replacement frequency
- Low power consumption with 80 mA current draw
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SRS50S-HGV0-K21 safety-related encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
