Safety Encoder SSI | High Resolution 4,096 Steps | IP65 Rated | by SICK
The Safety Encoder SSI is designed for precise position sensing in industrial automation, featuring a high resolution of 4,096 steps per revolution and an IP65 rated enclosure for dust and water protection. With a robust mechanical design and a safety-related MTTFD of 230 years, it's perfect for safety-critical machinery control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Resolution: 4,096 steps per revolution, 4,096 revolutions (12 bit x 12 bit)
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.25° at 20°C
- Communication interface: SSI with Gray code
- Initialization time: 100 ms
- Position forming time: 125 µs
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: 8-wire cable, 0.5 m length
- Mechanical design: Blind hollow shaft, 1/4 inch diameter
- Materials: Stainless steel shaft, aluminum flange, zinc housing, PUR cable
- Operating speed: up to 6,000 min⁻¹
- Operating temperature range: -20°C to +70°C
- Enclosure rating: IP65
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions (12 bit x 12 bit)
- Safety-related parameter MTTFD of 230 years according to EN ISO 13849-1
- SSI communication interface with Gray code and configurable CW/CCW sequence
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +70°C
- Low power consumption ≤ 1.5 W and reverse polarity protection
- High resistance to shocks (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder setup and safety standards to ensure proper integration and compliance.
Applications
- Industrial automation for precise position sensing
- Safety-related machinery control
- Robotics and motion control systems
- Manufacturing equipment requiring high resolution feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

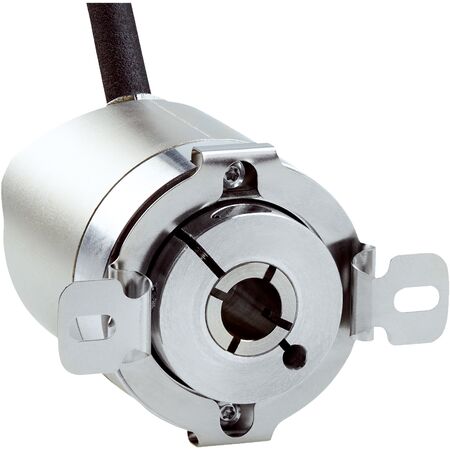

The SICK AHM36B-BKAJ012x12 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
