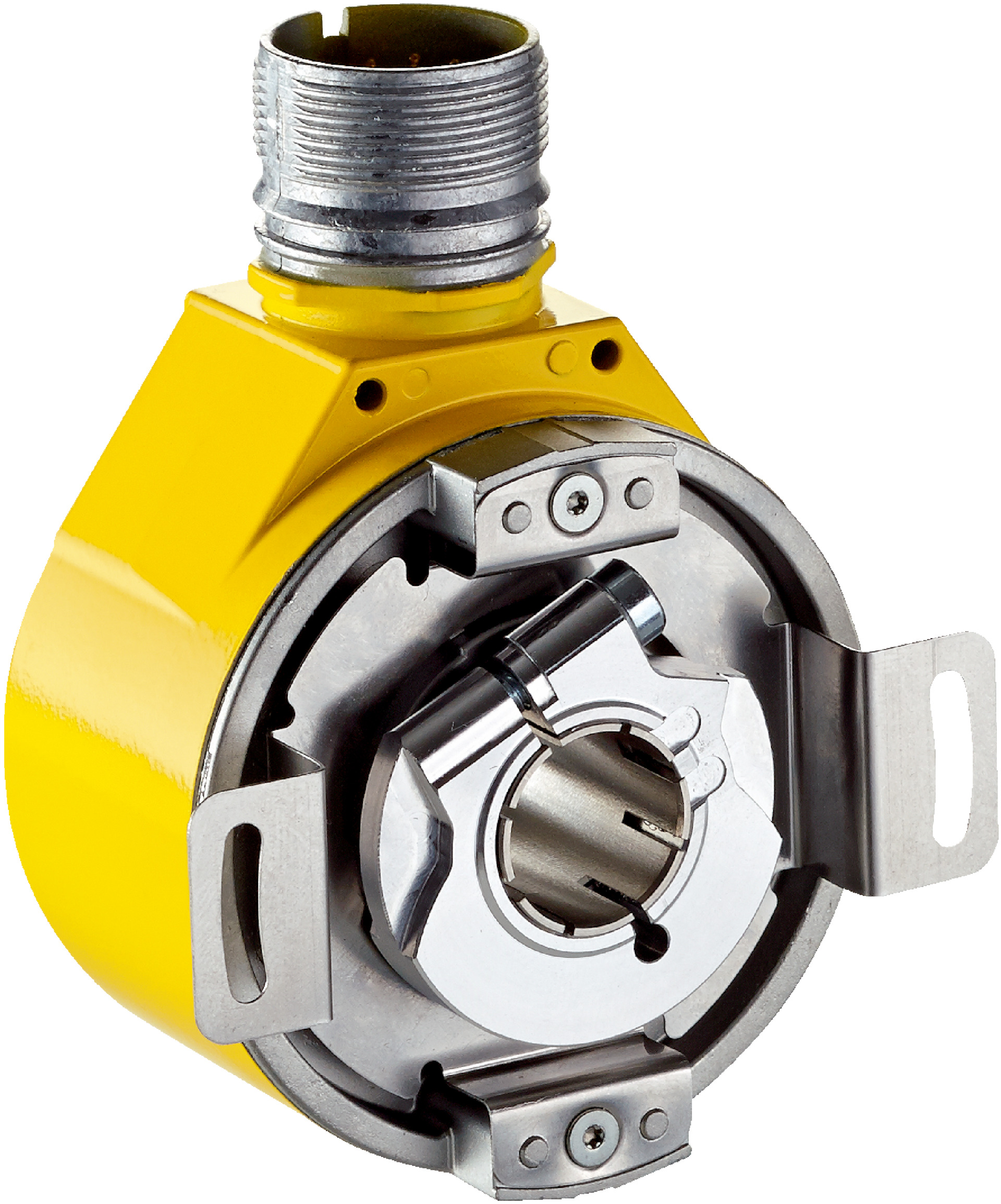

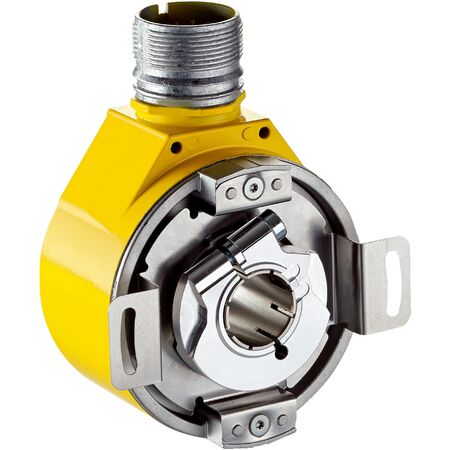

Safety Encoders AFM60S-BEKA008192 | SIL 3 & PL e Certified | High Precision | IP65 Rated | by SICK
Safety encoders like the AFM60S-BEKA008192 are essential for industrial automation, offering SIL 3 and PL e certification for high safety integrity. With a remarkable resolution of 8,192 steps per revolution and an IP65 rated enclosure, this encoder is perfect for safety-critical machinery and robotics, ensuring reliable position feedback in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoders AFM60S-BEKA008192 | SIL 3 & PL e Certified | High Precision | IP65 Rated | by SICK
Brand: SICK
SKU: 1113042
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, PL e encoder, high precision industrial encoder, SSI encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- PFH: 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 8,192 steps/rev x 4,096 revolutions (13 bit x 12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 s
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Blind hollow shaft with 12 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +95 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- Category 3 and 4 safety classification
- High resolution with 8,192 steps per revolution and 4,096 revolutions
- Repeatability standard deviation of 0.002°
- Communication via SSI and Sin/Cos interfaces
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- Operating temperature range from -30 °C to +95 °C
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation by qualified personnel with experience in safety-related encoder systems is recommended to ensure compliance with safety standards.
Applications
- Industrial automation requiring high safety integrity level encoders
- Safety-critical machinery position feedback
- Robotics and motion control systems
- Automated manufacturing lines with safety compliance needs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
- Robust design reduces environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFM60S-BEKA008192 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high reliability and precision.
