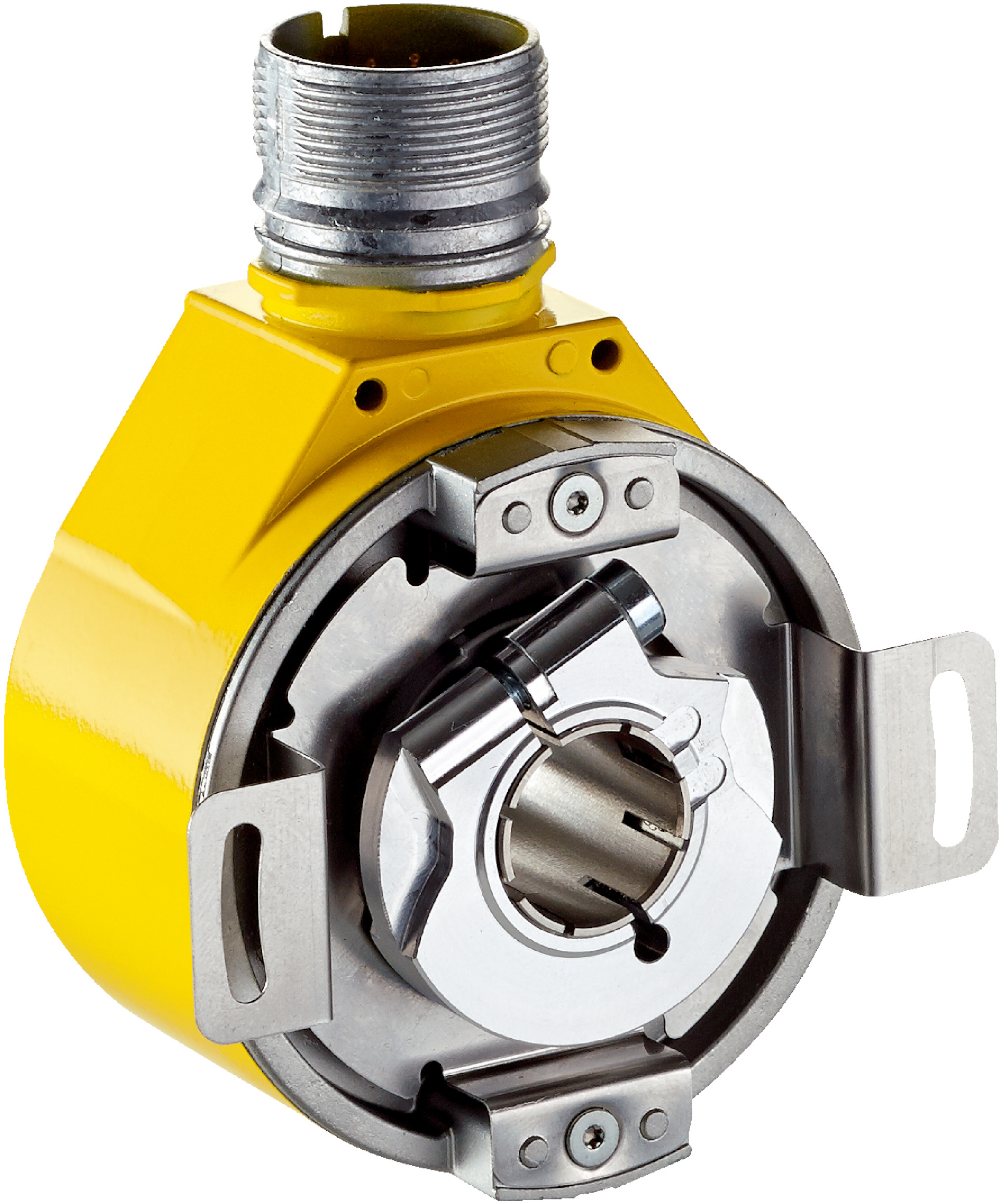

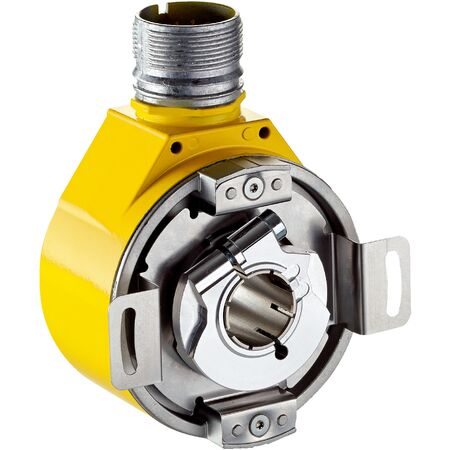

Safety Encoders AFS60S-BHKA262144 | SIL 3 & PL e Compliance | 262,144 Steps/Rev | IP65 Rated | by SICK
Safety encoders like the AFS60S-BHKA262144 are designed for high-precision position feedback in industrial automation. With SIL 3 and PL e compliance, this encoder ensures reliable performance in safety-related machinery control. Its robust blind hollow shaft design and IP65 rating provide protection against dust and water, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Encoders AFS60S-BHKA262144 | SIL 3 & PL e Compliance | 262,144 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1122368
Alternatively Known As: Safety rotary encoder, SIL 3 encoder, PL e encoder, blind hollow shaft encoder, high-resolution safety encoder
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Blind hollow shaft with 15 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +95 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution (18 bit)
- Robust blind hollow shaft design with stainless steel shaft and die-cast zinc flange
- IP65 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection
- Fast initialization time of 2 seconds and position forming time under 1 microsecond
- Communication via SSI and Sin/Cos interfaces
- Operating temperature range from -30 °C to +95 °C
- Low operating torque ≤ 0.6 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety encoder integration and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial automation and safety systems requiring high-precision position feedback
- Safety-related machinery control with SIL 3 and PL e compliance
- Robotics and motion control applications
- Heavy machinery with blind hollow shaft mounting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High reliability reduces downtime and waste from equipment failure
- Low power consumption of 0.7 W minimizes energy use
- Durable materials extend product lifecycle and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60S-BHKA262144 safety encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high precision and SIL 3 safety compliance.
