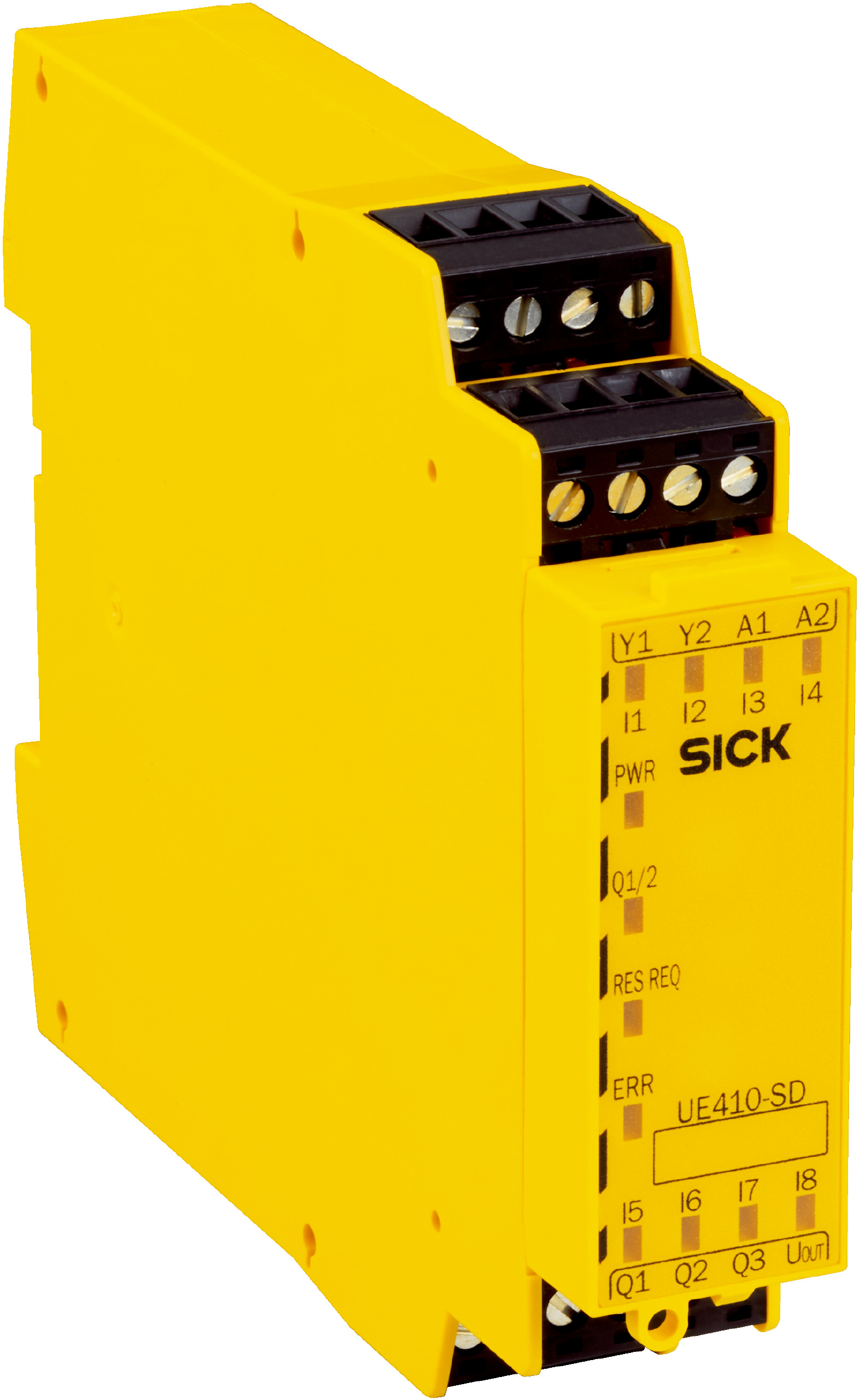

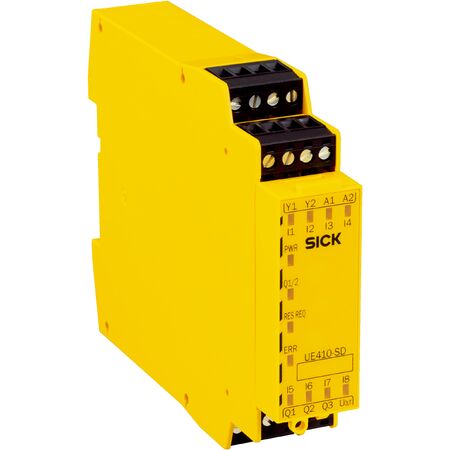

Safety Evaluation Module UE410-SD300 | IP20 Rated | 10 Hz Pulse Rate | by SICK
The UE410-SD300 Safety Evaluation Module is designed for industrial safety control systems, supporting one or two MultiPulse sensor pairs with a 10 Hz pulse rate. With an IP20 enclosure rating and a response time of ≤ 160 ms, it ensures reliable machine safety monitoring and automation safety integration, making it ideal for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage VS: 24 V DC (19.2 V ... 30 V)
- Number of connectable sensor pairs: 1 or 2
- Connection type: Screw-type terminals
- Pulse rate of sensors: 10 Hz
- Protection class: III (EN 50178)
- Enclosure rating: IP20 (EN 60529)
- Ambient operating temperature: –25 °C to 55 °C
- Response time of overall safety system: ≤ 160 ms
- Configuration method: Hard wired
- Dimensions (H x L x W): 50mm x 120mm x 100mm
- Weight: 0.5 kg
Key Features
- Operates with one or two MultiPulse sensor pairs
- Direct actuator connection to the safety evaluation module
- Expandable safety chain with additional logic elements
- Hard wired configuration
- Screw-type terminal connections
- Pulse rate of sensors: 10 Hz
- Protection class III (EN 50178)
- Enclosure rating IP20 (EN 60529)
- Ambient operating temperature from –25 °C to 55 °C
- Response time of overall safety system ≤ 160 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety control systems and electrical wiring standards.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety integration
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Natural protection due to the material reduces need for additional protective components
- Supports safety systems that help prevent accidents and reduce environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK UE410-SD300 Safety Controller is available for immediate purchase, ideal for industrial safety and automation applications.
