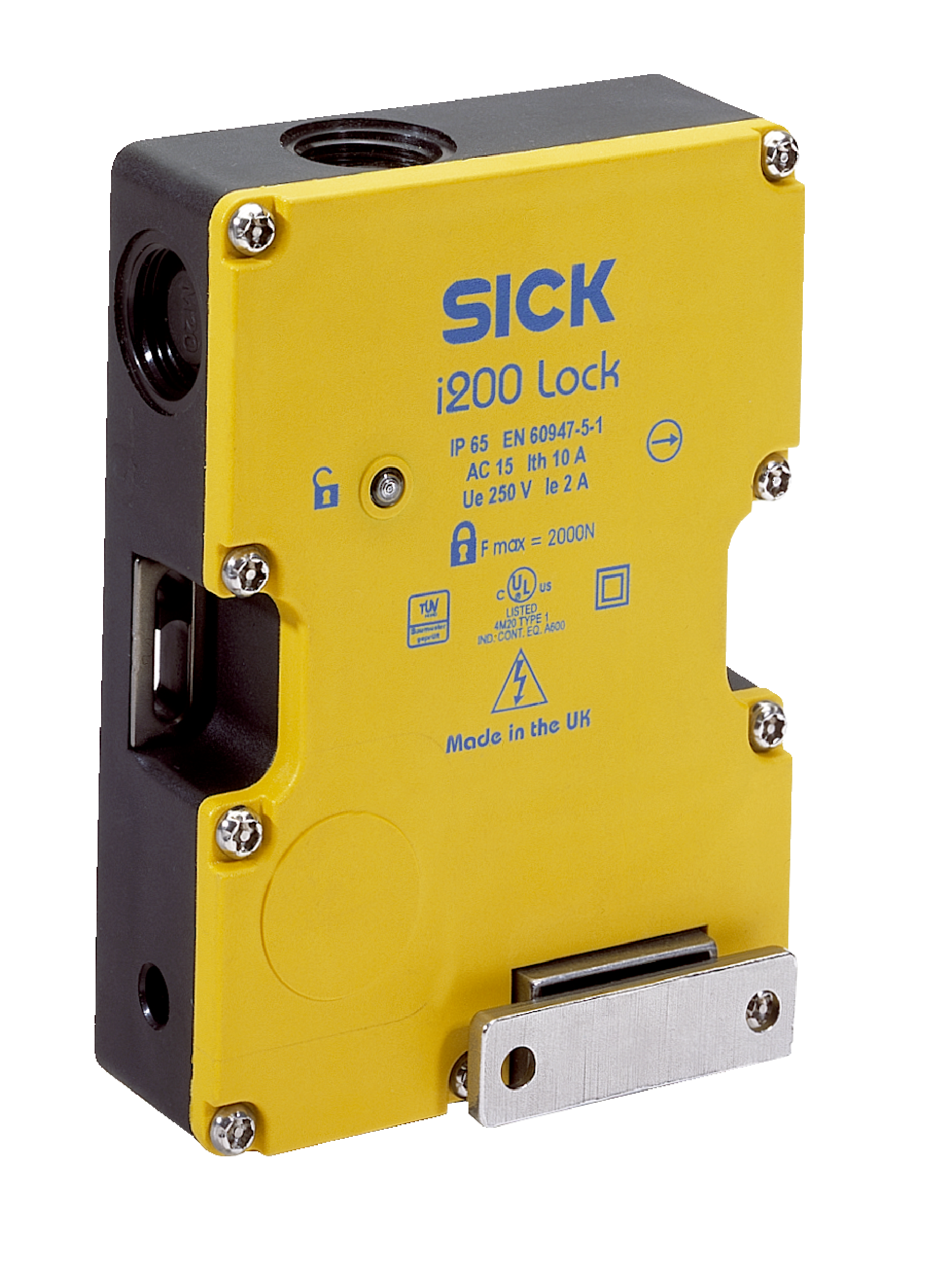

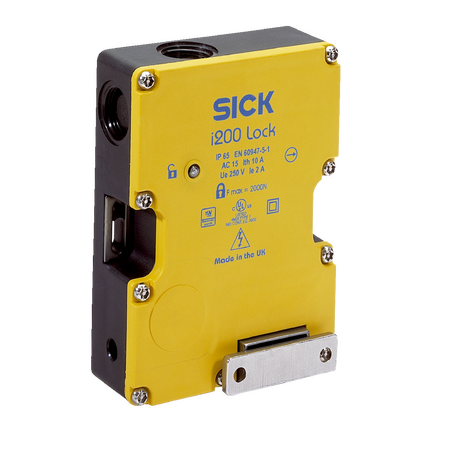

Safety Interlock Switch | Electro-mechanical Sensor | IP65 Rated | 2,600 N Locking Force | by SICK

BRAND: SICK
SKU: 6025115
$731.90 List price: $919.90
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Interlock Switch I200-M0413 features an electro-mechanical sensor principle with a power-to-release locking mechanism, ensuring safety in industrial applications. With a robust locking force of up to 2,600 N and an IP65 rated enclosure, it provides reliable protection against dust and water. Ideal for access control in hazardous areas and automated production lines, this switch is built for durability and efficiency.

Alternatively Known As: Safety Interlock Switch, Safety Door Switch, Electro-mechanical Safety Lock

Technical Specifications
  • Sensor principle: Electro-mechanical
  • Locking principle: Power to release
  • Positive action N/C solenoid monitoring contacts: 2
  • Positive action N/C door monitoring contacts: 2
  • N/O door monitoring contacts: 1
  • Locking force Fmax: 2,600 N (EN ISO 14119)
  • Locking force FZh: 2,000 N (EN ISO 14119)
  • Retaining force: ≤ 30 N
  • Actuation frequency: ≤ 3,600 per hour
  • Actuation directions: 3
  • Approach speed: ≤ 10 m/min
  • B10d parameter: 2 x 10^6 switching cycles (small load)
  • Type: Type 2 (EN ISO 14119)
  • Actuator coding level: Low coding level (EN ISO 14119)
  • Safe state in fault: No internal fault detection; fault detection by connected safety logic unit
  • Connection type: Cable gland, 3 x M20
  • Display elements: LEDs with status display
  • Switching principle: Slow action switching element
  • Usage category: AC-15/DC-13 (IEC 60947-5-1)
  • Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
  • Rated insulation voltage Ui: 500 V
  • Rated impulse withstand voltage Uimp: 2,500 V
  • Type of output: Electro-mechanical contacts
  • Power consumption: ≤ 7 W
  • Short-circuit protection: 3 A gG
  • Switching voltage: ≥ 5 V DC
  • Switching current: 5 mA (5 V DC)
  • Solenoid operating voltage: 20.4 V DC to 26.4 V DC
  • Switch-on time of magnet: 100%
  • Housing material: Glass-fiber reinforced polyester
  • Mechanical life: 1 x 10^6 switching cycles
  • Enclosure rating: IP65
  • Ambient operating temperature: –20 °C to +60 °C
  • Storage temperature: –20 °C to +60 °C
  • Dimensions (H x L x W): 120mm x 80mm x 60mm
  • Weight: 0.55 kg
Key Features
  • Electro-mechanical sensor principle with power to release locking
  • Locking force up to 2,600 N compliant with EN ISO 14119
  • Positive action N/C solenoid and door monitoring contacts
  • Slow action switching element with rated operating current of 3 A at 240 V AC and 24 V DC
  • IP65 rated enclosure for protection against dust and water
  • LED status display for operational feedback
  • Mechanical life of 1 million switching cycles
  • Actuation frequency up to 3,600 per hour and approach speed up to 10 m/min
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and operational safety.
Applications
  • Industrial safety interlocking for machinery and equipment
  • Access control for hazardous areas
  • Safety monitoring in automated production lines
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces waste through long service life
  • Low power consumption of ≤7 W minimizes energy use
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK I200-M0413 Safety Interlock is available for immediate purchase, ideal for industrial safety and access control applications.
