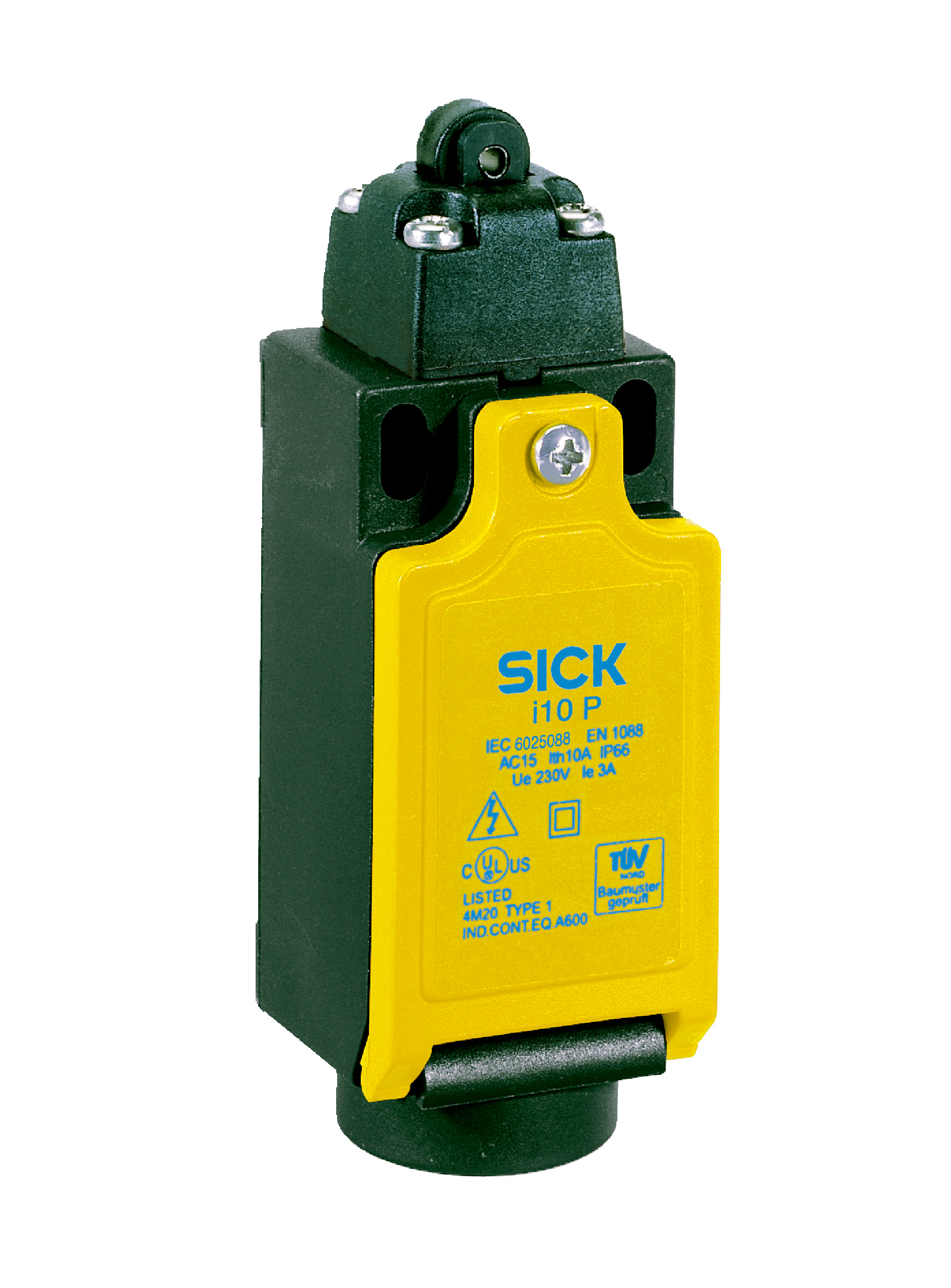

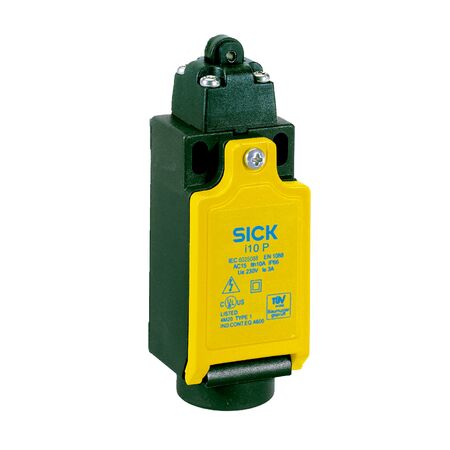

Safety Interlock Switch i10-PA213 | IP66 Rated | 10 Million Mechanical Life | by SICK
The i10-PA213 safety interlock switch is designed for industrial safety systems, featuring 2 positive action N/C contacts and 1 N/O contact. With an IP66 rating for dust and water protection, it operates effectively in harsh environments, making it ideal for machinery safety interlocks and automation systems. Built to last with a mechanical life of 10 million cycles, this switch ensures reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 1
- Actuation force: ≥ 6 N
- Actuation frequency: ≤ 6,000 per hour
- Actuation directions: 4
- Approach speed: 0.1 m/min to 15 m/min
- Positive break travel: 3.3 mm
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 1 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 2.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V AC
- Short-circuit protection: F15
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Mechanical life: 10 million switching cycles
- Housing material: Glass-fiber reinforced thermoplastic
- Enclosure rating: IP66 (IEC 60529)
- Ambient operating temperature: -25 °C to +80 °C
- Storage temperature: -25 °C to +80 °C
- Dimensions (H x L x W): 100mm x 30mm x 50mm
- Weight: 0.11 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
- Actuation force ≥ 6 N with actuation frequency up to 6,000 per hour
- 4 actuation directions supported
- Positive break travel of 3.3 mm
- Slow action switching element with rated operating current of 3 A at 240 V AC or 24 V DC
- Housing made of glass-fiber reinforced thermoplastic
- Mechanical life of 10 million switching cycles
- IP66 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring reliable safety switch monitoring
- Machinery safety interlocks
- Automation and control systems with safety requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- High mechanical life minimizes environmental impact through extended product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i10-PA213 safety switch is available for immediate purchase, ideal for industrial safety and automation applications.
