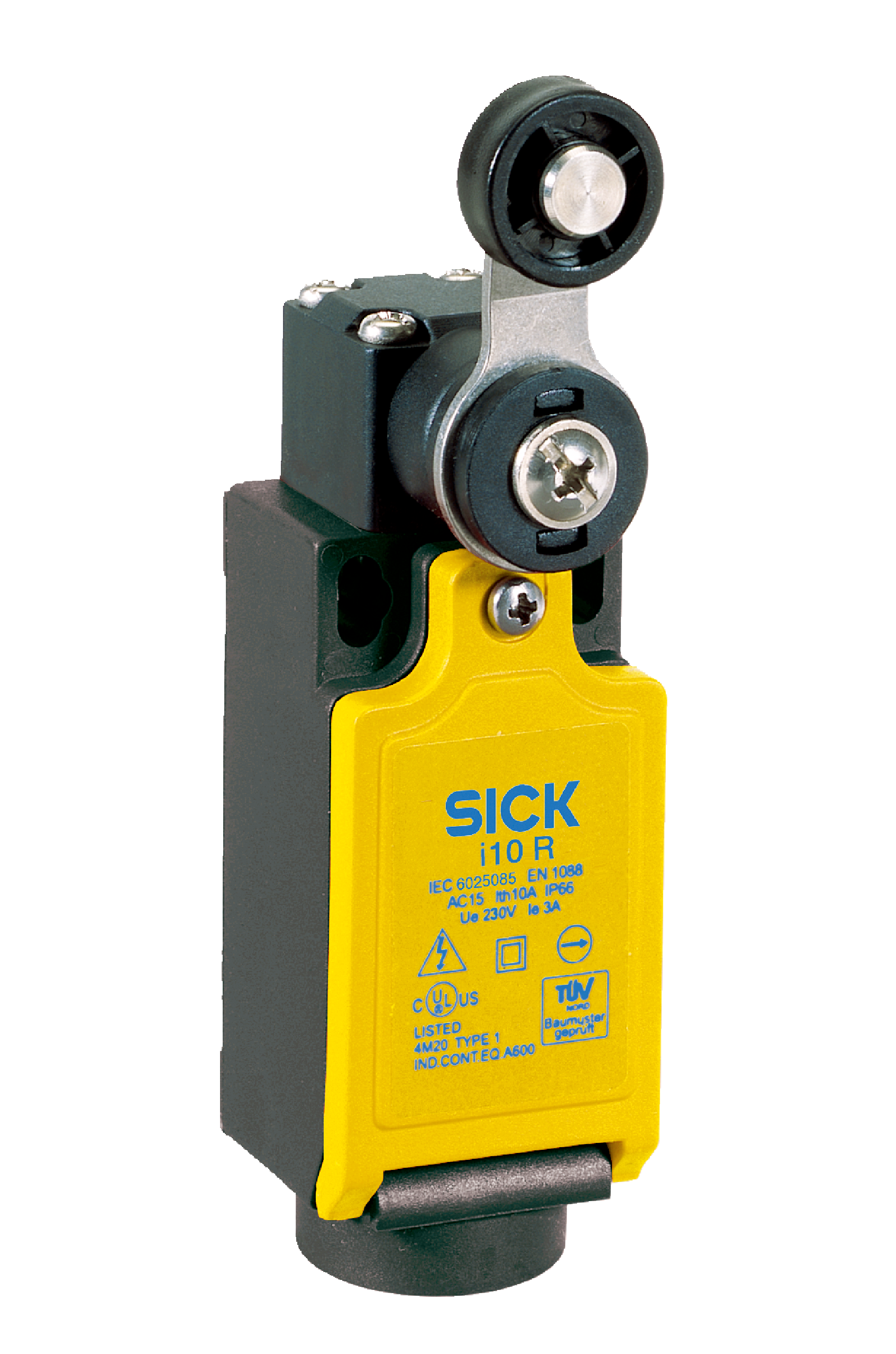

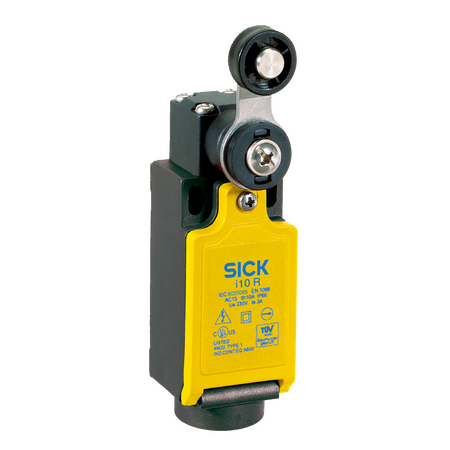

Safety Interlock Switch I10-RA213 | IP66 Rated | 2 N/C & 1 N/O Contacts | 6000 Operations/Hour | by SICK

BRAND: SICK
SKU: 6025085
$110.40 List price: $138.70
+ −
30 Days Return Electricians Unlock Trade Access
The Safety Interlock Switch I10-RA213 is designed for industrial safety systems, featuring 2 positive action normally closed contacts and 1 normally open contact. With an impressive actuation frequency of up to 6,000 operations per hour and an IP66 enclosure rating, this switch ensures reliable performance in machinery guarding and access control applications, making it ideal for automation and manufacturing safety.

Alternatively Known As: Safety Interlock Switch, Safety Door Switch, Safety Limit Switch, Industrial Safety Switch

Technical Specifications
  • Positive action N/C contacts: 2
  • N/O contacts: 1
  • Actuation frequency: ≤ 6,000 per hour
  • Actuation torque: ≥ 0.14 Nm
  • Actuation directions: 4
  • Approach speed: 0.1 m/min to 15 m/min
  • Positive break angle: 47°
  • B10d parameter: 2 x 10^6 switching cycles (small load)
  • Type: Type 1 (EN ISO 14119)
  • Actuator coding level: Uncoded (EN ISO 14119)
  • Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
  • Safe series connection: None, only individual wiring with diagnostics
  • Connection type: Cable gland, 1 x M20
  • Conductor cross section: ≤ 2.5 mm²
  • Switching principle: Slow action switching element
  • Usage category: AC-15/DC-13 (IEC 60947-5-1)
  • Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
  • Rated insulation voltage Ui: 250 V
  • Rated impulse withstand voltage Uimp: 2,500 V AC
  • Short-circuit protection: F15
  • Switching voltage: ≥ 5 V DC
  • Switching current: 5 mA (5 V DC)
  • Mechanical life: 10 x 10^6 switching cycles
  • Housing material: Glass-fiber reinforced thermoplastic
  • Enclosure rating: IP66 (IEC 60529)
  • Ambient operating temperature: -25 °C to +80 °C
  • Storage temperature: -25 °C to +80 °C
  • Dimensions (H x L x W): 100mm x 50mm x 50mm
  • Weight: 0.11 kg
Key Features
  • 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
  • Actuation frequency up to 6,000 operations per hour
  • Actuation torque of at least 0.14 Nm
  • Operable from 4 actuation directions
  • Approach speed range from 0.1 m/min to 15 m/min
  • Positive break angle of 47°
  • Slow action switching element with rated operating current of 3 A at 240 V AC and 24 V DC
  • Housing made of glass-fiber reinforced thermoplastic
  • Mechanical life of 10 million switching cycles
  • Enclosure rated IP66 for dust and water protection
  • Operating temperature range from -25 °C to +80 °C
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety interlock systems and relevant safety standards to ensure proper wiring and compliance.
Applications
  • Industrial safety systems requiring positive action safety interlocks
  • Machinery guarding and access control
  • Automation and manufacturing safety applications
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • High reliability minimizes downtime and resource consumption
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK I10-RA213 Safety Interlock is available for immediate purchase, ideal for industrial safety and machinery guarding applications.
