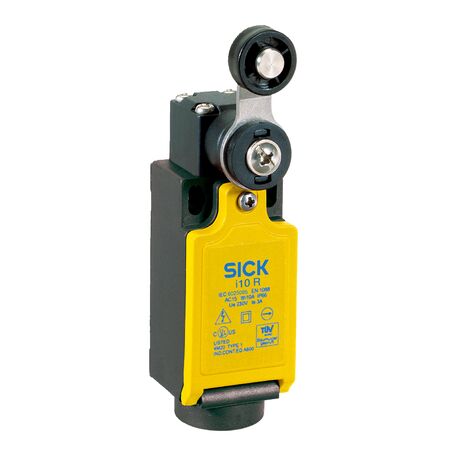

Safety Interlock Switch i10-RA213 | IP66 Rated | 2 N/C & 1 N/O Contacts | 6000 Operations/Hour | by SICK
The Safety Interlock Switch i10-RA213 is designed for industrial safety systems, featuring 2 positive action N/C contacts and 1 N/O contact for reliable position monitoring. With an actuation frequency of up to 6,000 operations per hour and an IP66 rated enclosure, it ensures durability and protection against dust and water, making it ideal for machinery safety interlocks and automation equipment safety circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 1
- Actuation frequency: ≤ 6,000 per hour
- Actuation torque: ≥ 0.14 Nm
- Actuation directions: 4
- Approach speed: 0.1 m/min to 15 m/min
- Positive break angle: 47°
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 1 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 2.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V AC
- Short-circuit protection: F15
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Mechanical life: 10 x 10^6 switching cycles
- Housing material: Glass-fiber reinforced thermoplastic
- Enclosure rating: IP66 (IEC 60529)
- Ambient operating temperature: -25 °C to +80 °C
- Storage temperature: -25 °C to +80 °C
- Dimensions (H x L x W): 40mm x 30mm x 60mm
- Weight: 0.11 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
- Actuation frequency up to 6,000 operations per hour
- Actuation torque of at least 0.14 Nm
- 4 actuation directions supported
- Positive break angle of 47°
- Slow action switching element for reliable operation
- Rated operating current of 3 A at 240 V AC and 24 V DC
- Housing made of glass-fiber reinforced thermoplastic
- Mechanical life of 10 million switching cycles
- IP66 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +80°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring reliable position monitoring
- Machinery safety interlocks
- Automation equipment safety circuits
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- High mechanical life minimizes environmental impact through longevity
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i10-RA213 Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
