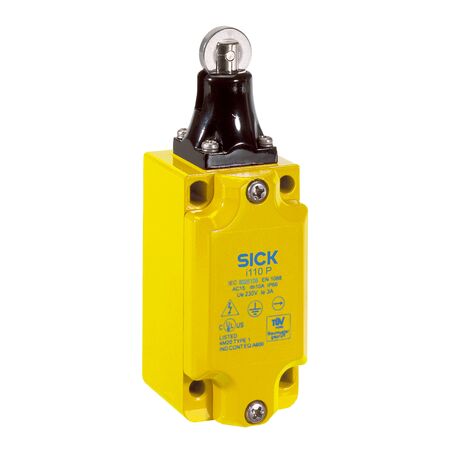

Safety Interlock Switch i110-PA223 | 2 N/C & 2 N/O Contacts | IP66 Rated | by SICK
The i110-PA223 Safety Interlock Switch features 2 positive action normally closed (N/C) contacts and 2 normally open (N/O) contacts, making it ideal for industrial safety systems and machinery safety interlocks. With a robust IP66 rated enclosure and a mechanical life of 10 million switching cycles, this switch ensures reliable performance in demanding environments, supporting actuation frequencies up to 6,000 per hour.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 2
- Actuation force: ≥ 11 N
- Actuation frequency: ≤ 6,000 per hour
- Actuation directions: 4
- Approach speed: 0.1 m/min to 15 m/min
- Positive break travel: 4 mm
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 1 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 2.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V AC
- Short-circuit protection: F15
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Weight: 0.43 kg
- Housing material: Zinc diecast
- Surface treatment: Varnished
- Mechanical life: 10 million switching cycles
- Enclosure rating: IP66 (IEC 60529)
- Ambient operating temperature: -25 °C to +80 °C
- Storage temperature: -25 °C to +80 °C
- Vibration resistance: 10 Hz to 5 Hz, 0.35 mm (IEC 68-2-6)
- Dimensions (H x L x W): 100mm x 40mm x 60mm
- Weight: 0.43 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 2 normally open (N/O) contacts
- Actuation force ≥ 11 N with actuation frequency up to 6,000 per hour
- 4 actuation directions supported
- Positive break travel of 4 mm for reliable safety switching
- Slow action switching element with rated operating current of 3 A at 240 V AC and 24 V DC
- Housing made of zinc diecast with varnished surface treatment
- Mechanical life of 10 million switching cycles
- IP66 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25 °C to +80 °C
- Certified with EU and UK declarations of conformity, cULus certificate, and TÜV approval
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with occupational health and safety standards.
Applications
- Industrial safety systems requiring reliable safety switch monitoring
- Machinery safety interlocks
- Automation equipment safety
- Safety-related control systems in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc diecast housing extends product life reducing waste
- High mechanical life reduces frequency of replacements
- IP66 rating protects against environmental ingress, minimizing failure and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK i110-PA223 Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
