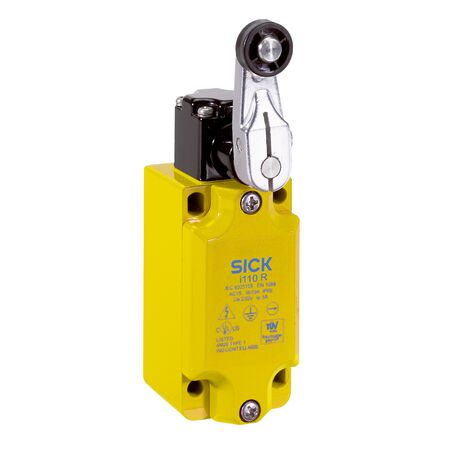

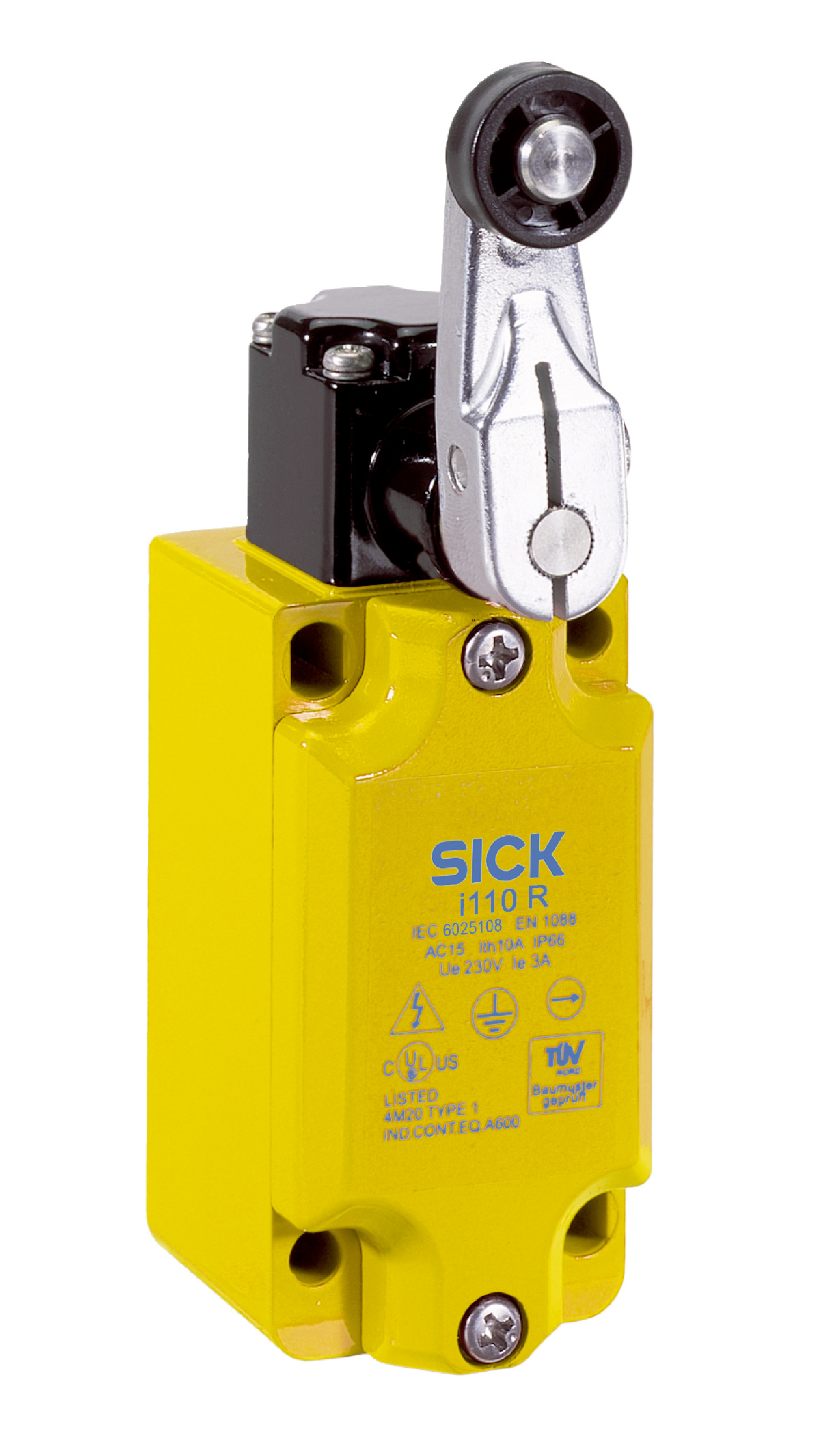

Safety Interlock Switch i110-RA123 | IP66 Rated | 10 Million Mechanical Life | by SICK
The i110-RA123 Safety Interlock Switch is designed for reliable position monitoring in industrial safety systems. With positive action N/C and N/O contacts, it ensures precise operation and a high mechanical life of 10 million switching cycles. Its IP66 rated enclosure provides excellent dust and water protection, making it ideal for automation equipment safety and hazardous area monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 1
- Positive action N/O contacts: 1
- Actuation frequency: ≤ 6,000 per hour
- Actuation torque: ≥ 0.34 Nm
- Actuation directions: 4
- Approach speed: 0.1 m/min to 15 m/min
- Positive break angle: 54°
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 1 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 2.5 mm²
- Switching principle: Snap action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V AC
- Short-circuit protection: F15
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Mechanical life: 10 million switching cycles
- Housing material: Zinc diecast
- Surface treatment: Varnished
- Enclosure rating: IP66 (IEC 60529)
- Ambient operating temperature: -25°C to +80°C
- Storage temperature: -25°C to +80°C
- Dimensions (H x L x W): 100mm x 40mm x 60mm
- Weight: 0.52 kg
Key Features
- Positive action N/C and N/O contacts for reliable switching
- Snap action switching element for precise operation
- High mechanical life of 10 million switching cycles
- IP66 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25°C to +80°C
- Actuation frequency up to 6,000 operations per hour
- Four actuation directions supported
- Varnished zinc diecast housing for durability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with occupational health and safety standards.
Applications
- Industrial safety systems requiring reliable position monitoring
- Machinery safety interlocks
- Automation equipment safety
- Hazardous area safety monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- High reliability minimizes downtime and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK i110-RA123 Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
