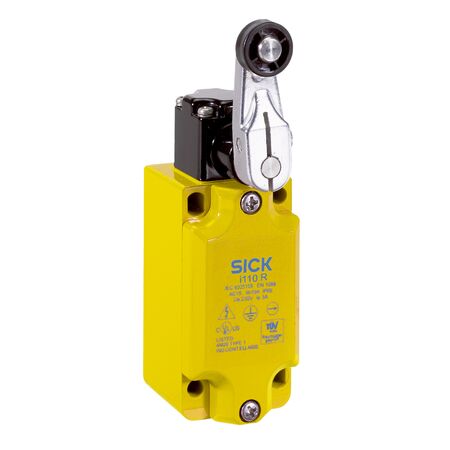

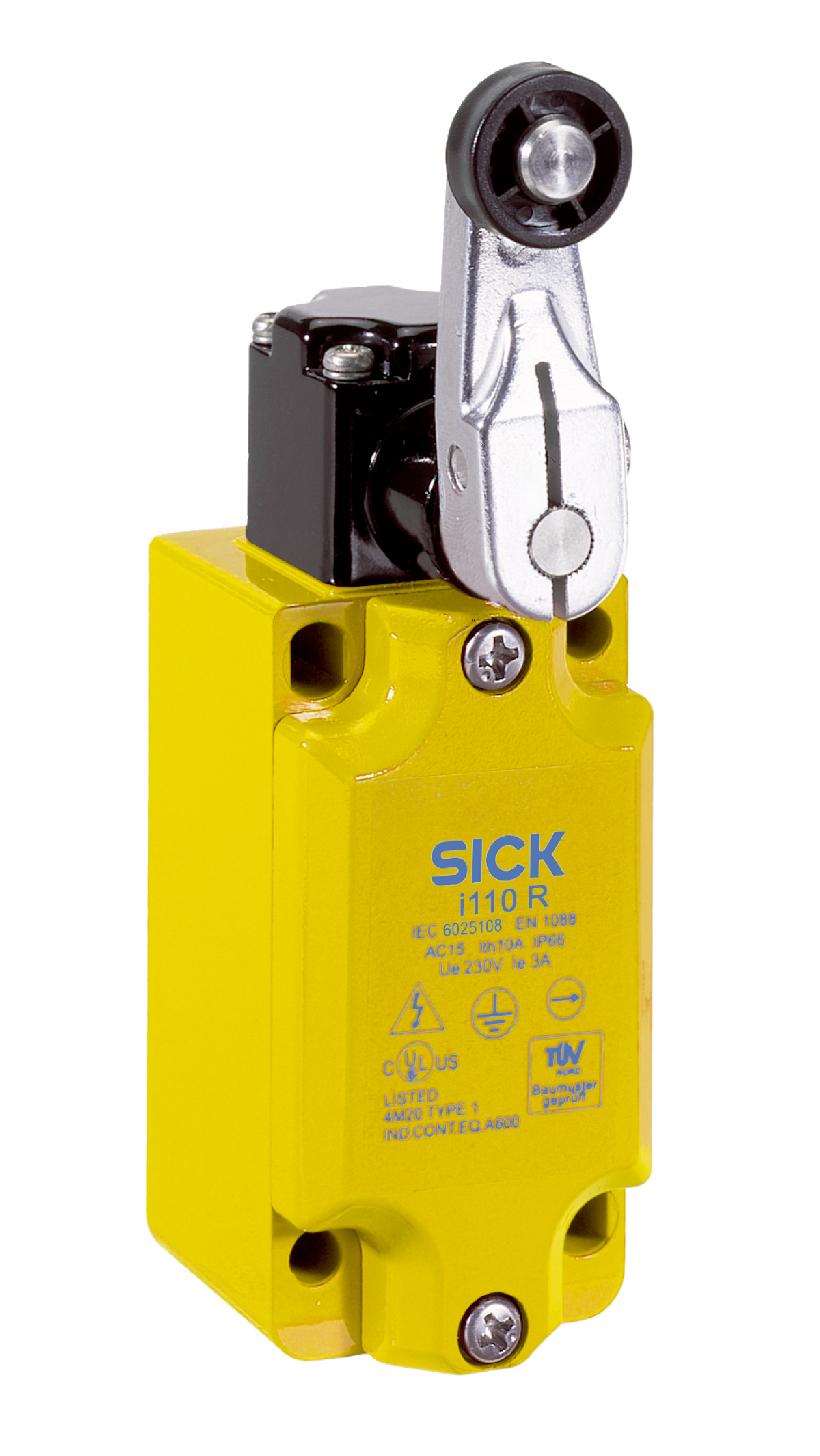

Safety Interlock Switch i110-RA223 | IP66 Rated | 4 Actuation Directions | 10 Million Mechanical Life | by SICK
The Safety Interlock Switch i110-RA223 features 2 positive action N/C contacts and 2 N/O contacts, making it ideal for industrial safety systems and machinery safety interlocks. With an impressive actuation frequency of up to 6,000 operations per hour and a robust IP66 rated enclosure, this switch ensures reliable position monitoring in demanding environments. Built for automation equipment safety applications, it operates effectively in temperatures ranging from -25°C to +80°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 2
- Actuation frequency: ≤ 6,000 per hour
- Actuation torque: ≥ 0.34 Nm
- Actuation directions: 4
- Approach speed: 0.1 m/min to 15 m/min
- Positive break angle: 44°
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 1 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 2.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V AC
- Short-circuit protection: F15
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Mechanical life: 10 x 10^6 switching cycles
- Housing material: Zinc diecast
- Surface treatment: Varnished
- Enclosure rating: IP66 (IEC 60529)
- Ambient operating temperature: -25°C to +80°C
- Storage temperature: -25°C to +80°C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.52 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 2 normally open (N/O) contacts
- Actuation frequency up to 6,000 operations per hour
- Actuation torque of at least 0.34 Nm
- Four actuation directions supported
- Approach speed range from 0.1 m/min to 15 m/min
- Positive break angle of 44°
- Slow action switching element for reliable operation
- Rated operating current of 3 A at 240 V AC and 3 A at 24 V DC
- Mechanical life of 10 million switching cycles
- Housing made of zinc diecast with varnished surface
- IP66 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25°C to +80°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with occupational health and safety standards.
Applications
- Industrial safety systems requiring reliable position monitoring
- Machinery safety interlocks
- Automation equipment safety applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc diecast housing extends product life reducing waste
- High mechanical life reduces replacement frequency and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i110-RA223 Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
