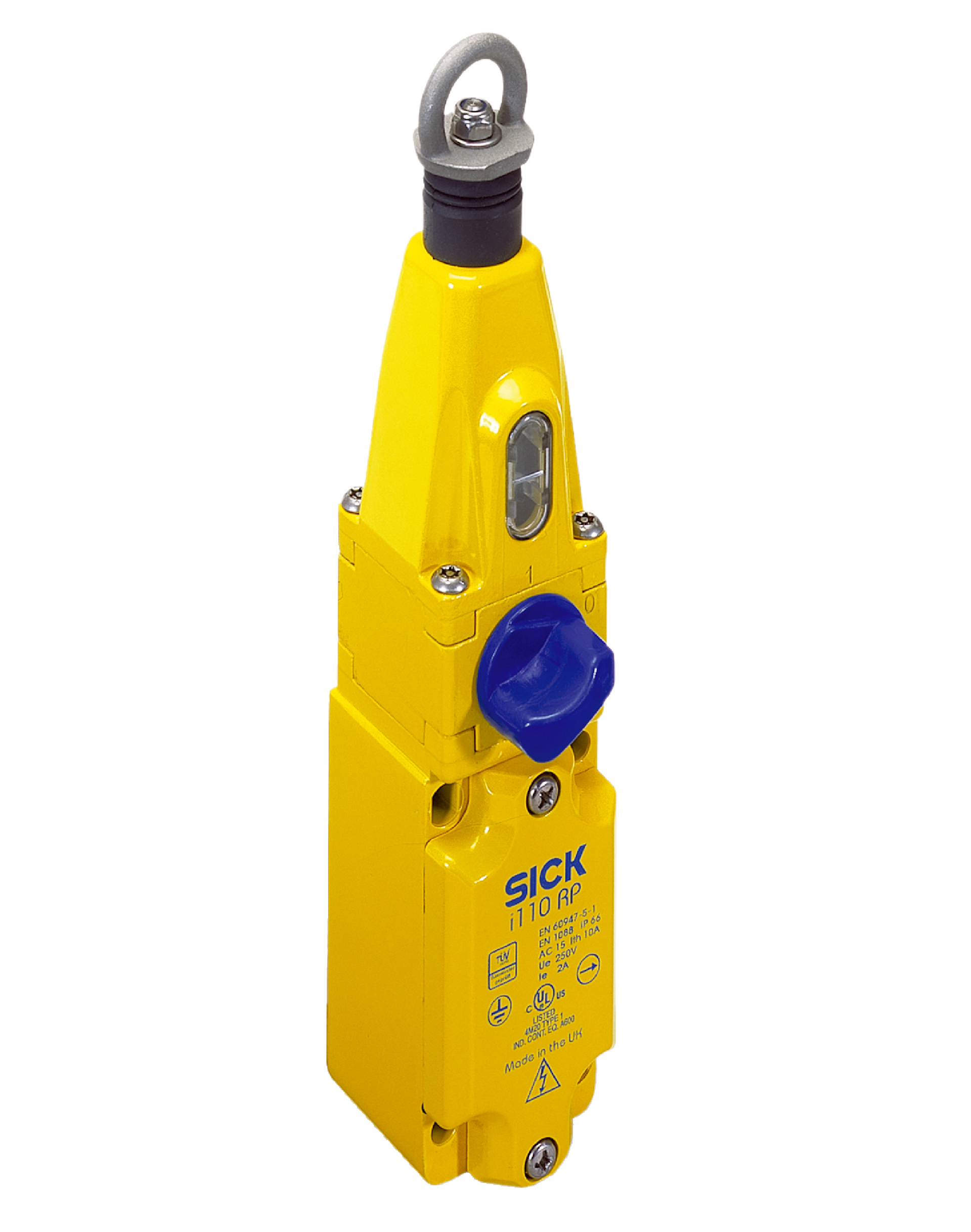

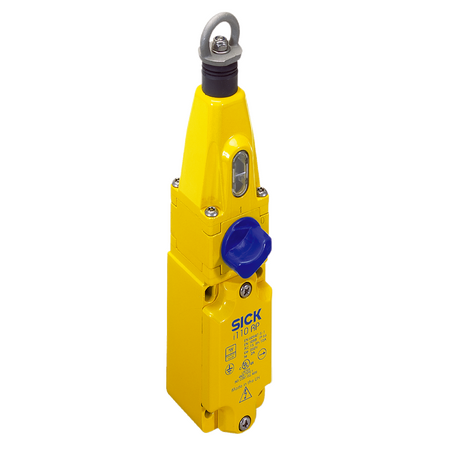

Safety Interlock Switch I110-RP313 | 3 N/C & 1 N/O Contacts | IP66 Rated | by SICK
The Safety Interlock Switch I110-RP313 features 3 positive action normally closed contacts and 1 normally open contact, making it ideal for industrial safety systems. With an actuation force of 125 N and an IP66 rated enclosure, it ensures reliable operation in harsh environments, perfect for machinery safety monitoring and access control in hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety Interlock Switch, Safety Door Switch, Industrial Safety Switch, Positive Action Safety Switch
Technical Specifications
- Positive action N/C contacts: 3
- N/O contacts: 1
- Actuation force: 125 N at 300 mm deflection
- Actuation frequency: ≤ 3,600 per hour
- Actuation directions: 1
- Cord length: ≤ 30 m
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Safe state in fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, individual wiring with diagnostics
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 1.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Short-circuit protection: T6
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Housing material: Zinc diecast
- Surface treatment: Varnished
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP66 (IEC 60529)
- Operating temperature: –25 °C to +80 °C
- Storage temperature: –25 °C to +80 °C
- Dimensions (H x L x W): 56mm x 204mm x 40mm
- Weight: 0.84 kg
Key Features
- 3 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
- Actuation force of 125 N at 300 mm deflection
- Slow action switching element for reliable operation
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- IP66 rated enclosure for dust and water protection
- Mechanical life of 1 million switching cycles
- Cable gland connection with conductor cross section up to 1.5 mm²
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety systems requiring positive action safety interlocks
- Machinery and equipment safety monitoring
- Access control for hazardous areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc diecast housing extends product lifespan reducing waste
- High mechanical life reduces frequency of replacements
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK I110-RP313 Safety Interlock is available for immediate purchase, ideal for industrial safety and machinery access control applications.
