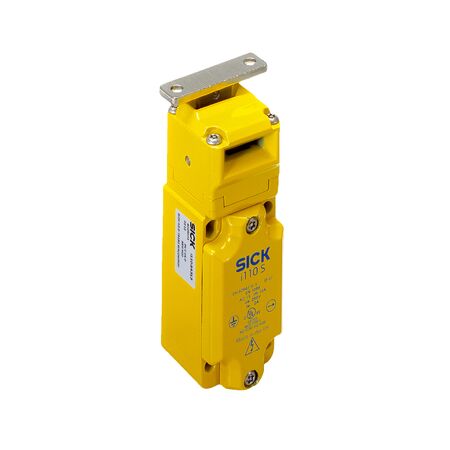

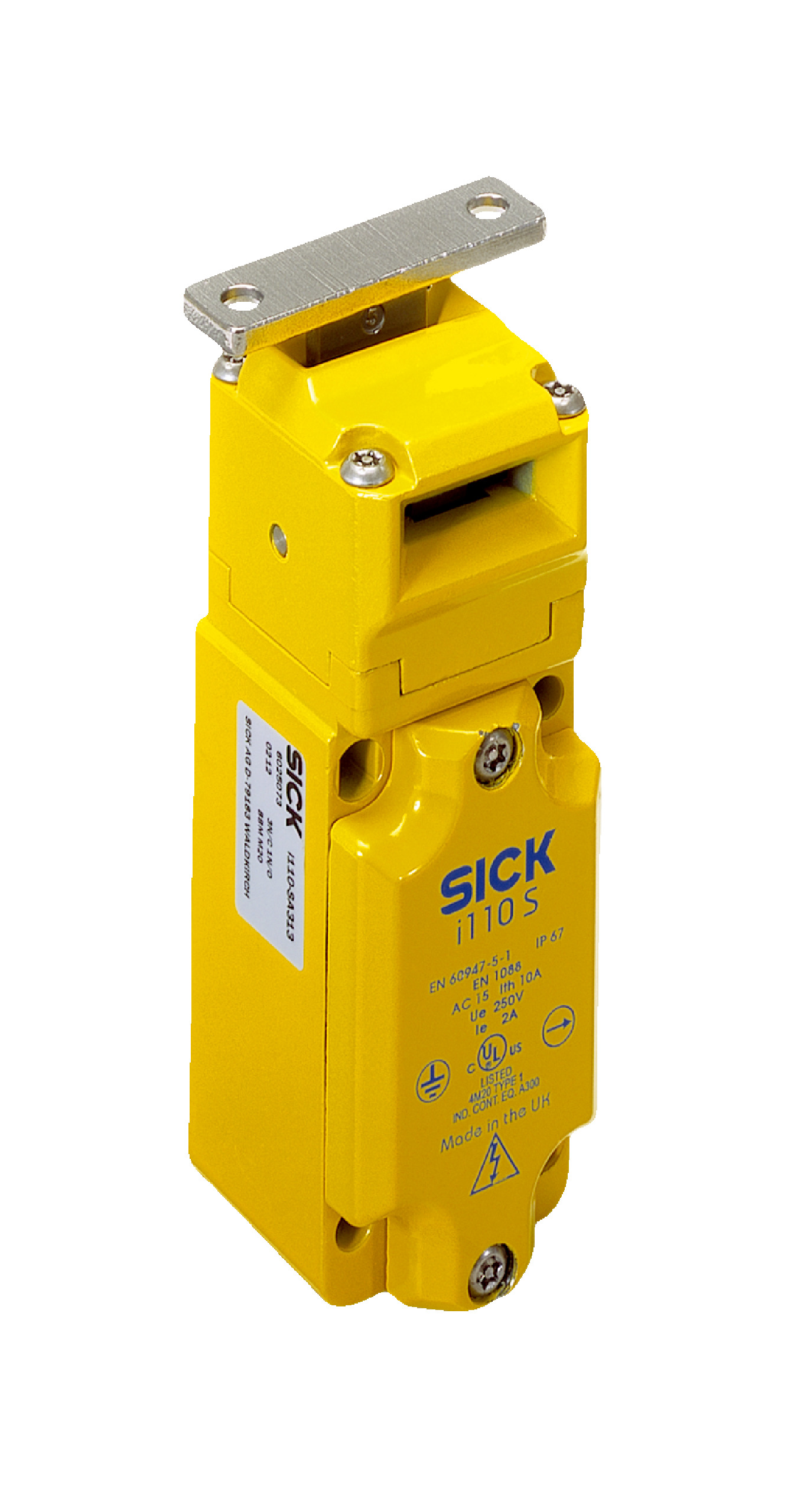

Safety Interlock Switch i110-SA223 | IP67 Rated | 2 N/C & 2 N/O Contacts | Slow Action Switching | by SICK
The i110-SA223 Safety Interlock Switch is designed for industrial safety systems, featuring 2 positive action normally closed (N/C) contacts and 2 normally open (N/O) contacts. With an IP67 rated enclosure for dust and water protection, it supports actuation from 5 different directions and boasts a high actuation frequency of up to 7,200 operations per hour, making it ideal for reliable position monitoring in machinery safety interlocks and automation equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 2
- Retaining force: ≤ 12 N
- Actuation frequency: ≤ 7,200 per hour
- Actuation directions: 5
- Approach speed: ≤ 10 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 1.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 240 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Short-circuit protection: T10/10A
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +80 °C
- Storage temperature: –20 °C to +80 °C
- Housing material: Zinc diecast
- Surface treatment: Varnished
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.54 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 2 normally open (N/O) contacts
- Retaining force of ≤ 12 N for secure actuation
- Supports actuation from 5 different directions
- High actuation frequency up to 7,200 operations per hour
- Slow action switching element for reliable operation
- IP67 rated enclosure for protection against dust and water
- Mechanical life of 1 million switching cycles
- Varnished zinc diecast housing for durability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and safety-related control systems to ensure compliance with safety standards.
Applications
- Industrial safety systems requiring reliable position monitoring
- Machinery safety interlocks
- Automation equipment safety
- Safety-related control systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- High reliability minimizes downtime and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK i110-SA223 Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
